Type conversion error while solving a system of ODEs

#1 Posted: 1/26/2023 8:33:08 PM

3 likes in 35 posts.

Group: User

Thanks for creating such a helpful software, I have a problem solving the attached system of ODEs it keeps saying Type conversion error on Adams function please help.

Gyroscope.sm (9 KiB) downloaded 28 time(s).

#2 Posted: 1/26/2023 9:03:21 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Hi. You can't build matrices A and B that way, but you can with stack and augment. BTW, it seems that the interval where it finds the solution is the [0,1] giving overflow error for 1000 steps and the interval [0,5]

Best regards.
Alvaro.

#3 Posted: 1/27/2023 7:02:41 AM

Oichi

3 likes in 35 posts.

Group: User

Oh okay,,, i didnt know that, Thank you so much

#4 Posted: 1/27/2023 12:07:53 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Gyroscope.sm (32 KiB) downloaded 21 time(s).

#5 Posted: 1/27/2023 12:36:28 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... plot enough points to view the system response.
Cheers ... Jean.

Gyroscope.sm (33 KiB) downloaded 27 time(s).

#6 Posted: 1/27/2023 12:45:43 PM

Oichi

3 likes in 35 posts.

Group: User

Thank you so much 🥰

#7 Posted: 1/27/2023 3:08:54 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Thank you so much

In the same concept of parametric ODE.
Cheers ... Jean.

ODE Parametric.sm (19 KiB) downloaded 23 time(s).

#8 Posted: 1/27/2023 3:24:42 PM

Oichi

3 likes in 35 posts.

Group: User

How can I get these matlab solvers

#9 Posted: 1/28/2023 6:45:28 AM

Davide Carpi

1416 likes in 2873 posts.

Group: Moderator

Wrote
How can I get these matlab solvers

The mwode* functions are part of the plugin Matlab Runtime Library; it ask you to install when you open a worksheet that contains these functions or you can download manually from the extensions manager.

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

#10 Posted: 1/28/2023 6:59:40 AM

Oichi

3 likes in 35 posts.

Group: User

Wrote

Wrote
How can I get these matlab solvers

The mwode* functions are part of the plugin Matlab Runtime Library; it ask you to install when you open a worksheet that contains these functions or you can download manually from the extensions manager.

Thank you so much

#11 Posted: 1/28/2023 8:20:48 AM

Oichi

3 likes in 35 posts.

Group: User

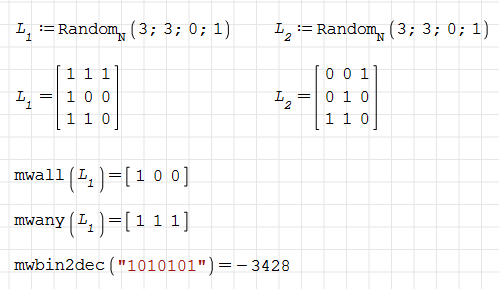

I have the plugin of Matlab runtime library and it has no ode solvers of matlab

#12 Posted: 1/28/2023 10:31:32 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I have the plugin of Matlab runtime library and it has no ode solvers of matlab

I have all 'mw...' from native Smath 6179.
that was installed from the option installer
rather than from plugins.
Does it suggest to re-install your version ?

#13 Posted: 1/28/2023 10:37:24 AM

overlord

552 likes in 1332 posts.

Group: Moderator

Wrote
I have the plugin of Matlab runtime library and it has no ode solvers of matlab

It may not work on windows 64-bit or linux/mono systems.
There is a trick for windows however.

Link to Extension Page

Regards

#14 Posted: 1/28/2023 1:02:25 PM

Oichi

3 likes in 35 posts.

Group: User

Wrote

Wrote
I have the plugin of Matlab runtime library and it has no ode solvers of matlab

It may not work on windows 64-bit or linux/mono systems.
There is a trick for windows however.

Link to Extension Page

Regards

I did everything written in that link but I still can't find those matlab functions

#15 Posted: 1/28/2023 1:03:30 PM

Oichi

3 likes in 35 posts.

Group: User

Wrote

Wrote
I have the plugin of Matlab runtime library and it has no ode solvers of matlab

I have all 'mw...' from native Smath 6179.
that was installed from the option installer
rather than from plugins.
Does it suggest to re-install your version ?

I don't understand you, can you provide further explanation

#16 Posted: 1/28/2023 9:04:21 PM

overlord

552 likes in 1332 posts.

Group: Moderator

Wrote
I did everything written in that link but I still can't find those matlab functions

Did you also made Solver.exe 32bit?
When uni wrote that information, SMath was not splitted to Solver and Writer.
Run these two commands as administrator.

CorFlags.exe /32bit+ Solver.exe
CorFlags.exe /32bit+ SMathStudio_Desktop.exe

And check if they are 32bit signed, output should look like this.

C:\Program Files (x86)\SMath Studio> CorFlags.exe Solver.exe
Microsoft (R) .NET Framework CorFlags Conversion Tool.  Version  4.8.9037.0
Copyright (c) Microsoft Corporation.  All rights reserved.

Version   : v2.0.50727
CLR Header: 2.5
PE        : PE32
CorFlags  : 0x3
ILONLY    : 1
32BITREQ  : 1
32BITPREF : 0
Signed    : 0

If method above doesn't work, use this new version of CorFlags. CorFlags.zip (99 KiB) downloaded 21 time(s).

I have personally tried, it does work.

#17 Posted: 1/29/2023 4:45:46 AM

Oichi

3 likes in 35 posts.

Group: User

Wrote

Wrote
I did everything written in that link but I still can't find those matlab functions

Did you also made Solver.exe 32bit?
When uni wrote that information, SMath was not splitted to Solver and Writer.
Run these two commands as administrator.
CorFlags.exe /32bit+ Solver.exe
CorFlags.exe /32bit+ SMathStudio_Desktop.exe
And check if they are 32bit signed, output should look like this.
C:\Program Files (x86)\SMath Studio> CorFlags.exe Solver.exe
Microsoft (R) .NET Framework CorFlags Conversion Tool.  Version  4.8.9037.0
Copyright (c) Microsoft Corporation.  All rights reserved.

Version   : v2.0.50727
CLR Header: 2.5
PE        : PE32
CorFlags  : 0x3
ILONLY    : 1
32BITREQ  : 1
32BITPREF : 0
Signed    : 0
If method above doesn't work, use this new version of CorFlags. CorFlags.zip (99 KiB) downloaded 21 time(s).

I have personally tried, it does work.

Yes, Thanks ^^ It finally worked. I needed to do that solver corflags
