Background image for the graph

#1 Posted: 3/5/2020 7:24:32 AM

0 likes in 6 posts.

Group: User

Hello. Is it possible to load a picture into the graph as a background? I did not manage to find the direct answer. Thanks.

#2 Posted: 3/5/2020 8:35:59 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Hello. Is it possible to load a picture into the work sheet as a background?
I did not manage to find the direct answer. Thanks.

1. you must have the image [typical *.BMP]
in either: your Smath file or in C:\
if you don't already have an Smath file ... create one in C:\
2. from the Smath top menu: Insert, Background
... all pages ... from file [browse] ... stretch

Image Cloud Background.sm (206 KiB) downloaded 61 time(s).

#3 Posted: 3/5/2020 8:45:30 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

... sanity check attached document OK

#4 Posted: 3/5/2020 8:58:43 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

... now => background over entire Smath document

Circle Aperture_OD Gray 245.sm (30 KiB) downloaded 51 time(s).

What you CAN NO NOT DO ... turn ON/OFF background

#5 Posted: 3/5/2020 10:01:01 AM

Roman

0 likes in 6 posts.

Group: User

Thanks, but I meant inserting a picture inside the graph (plot) region, under the axis.

#6 Posted: 3/5/2020 11:48:08 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Thanks, but I meant inserting a picture inside the graph (plot) region, under the axis.

Much easier: paste the picture outside the graph,
brush over the picture to select, arrow key to slide/adjust-in.

#7 Posted: 3/5/2020 12:37:06 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... touchy to adjust.

#8 Posted: 10/14/2021 7:48:47 AM

João Felipe Seráfico Melo

7 likes in 62 posts.

Group: User

Hi, Jean!

I'm having trouble controlling which object is in front of the other, the XYPLot Region or the image. It seems a random behavior to me. Am I missing something?

#9 Posted: 10/14/2021 8:07:52 AM

sergio

115 likes in 329 posts.

Group: User

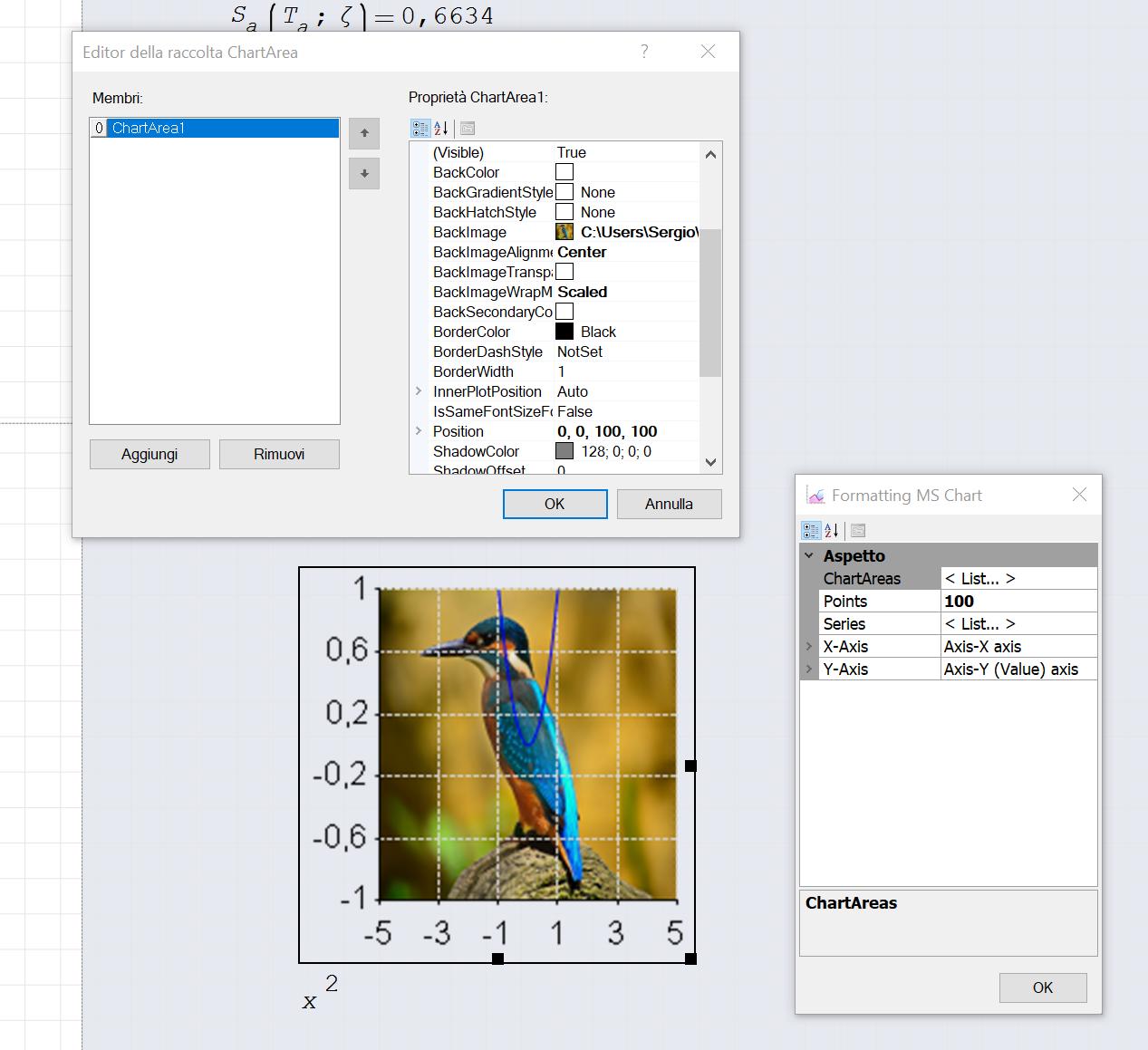

It can be done; for example with the Mschart plugin

sergio

#10 Posted: 10/14/2021 8:45:09 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Hi, Jean!
I'm having trouble controlling which object is in front of the other,
the XY PLot Region or the image. It seems a random behavior to me.
Am I missing something?

Image is always on top, probably native Win.
Click anywhere-in ... just the graph.
Cheers ... Jean.

#11 Posted: 10/14/2021 9:05:51 AM

João Felipe Seráfico Melo

7 likes in 62 posts.

Group: User

Thank you very much, Pompelmo! Haven't tried this plugin so far. It worked perfectly.

Thanks, Jean. By moving the image in and out, it goes behind the graph sometimes, but suddenly snaps to the front. Couldn't identify a clear behavior. Maybe a "bring to the back/front" functionality would be a useful addition to the program.

#12 Posted: 10/14/2021 1:48:26 PM

Davide Carpi

1416 likes in 2873 posts.

Group: Moderator

Wrote
By moving the image in and out, it goes behind the graph sometimes, but suddenly snaps to the front. Couldn't identify a clear behavior.

Currently the top-left corner of each region drives the position. The regions behind are those closer to the top (top to bottom) and left margins (left to right).

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

#13 Posted: 10/14/2021 3:32:10 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Maybe a "bring to the back/front" functionality would be a useful addition to the program.

From recollection, it was on the wish list SS 5346.
Thing in terms of publishing ... no decoration, gyzmas ...etc.
The Mathcad 11 bring to front send to back had no adept.
A good presentation is background colors.
Cheers ... Jean.

ODE rkfixed VALERY Yellow Corn.sm (78 KiB) downloaded 28 time(s).

#14 Posted: 10/14/2021 3:59:32 PM

overlord

552 likes in 1332 posts.

Group: Moderator

Wrote
Currently the top-left corner of each region drives the position. The regions behind are those closer to the top (top to bottom) and left margins (left to right).

Could "Bring to front/Send to back" options implemented for all regions??
But on a second thought, it would require tons of code change.

Regards

#15 Posted: 10/14/2021 5:39:14 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Thanks, Jean.

IMHO, for publishing, a document must be as clean/minimalist.
Even a graph with personal logo/photo is too much.
If your document is unique/pure creation in the planet,
OK personal logo somewhere in the document.
I have some of that style [Pt 100, T,J]
What are you looking for, really ?
Cheers ... Jean.

#16 Posted: 10/15/2021 1:02:47 AM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote
Hello. Is it possible to load a picture into the graph as a background? I did not manage to find the direct answer. Thanks.

Hi. Another way, in addition to the one proposed by Pompelmo:
https://en.smath.com/forum/yaf_postst20347_Embedding-images-into-a-plot.aspx

Best regards.
Alvaro.
