Fourier Quantum [Momentum 2 slits].sm (18.33 KiB) downloaded 399 time(s).
Fourier Quantum Airy.sm (9.19 KiB) downloaded 433 time(s).
Fourier Quantum CoC Pin Hole.sm (12.17 KiB) downloaded 441 time(s).
Fourier Quantum 2C Mask.sm (20.29 KiB) downloaded 450 time(s).
Fourier Quantum [mask square hole].sm (67.23 KiB) downloaded 401 time(s).
Fourier Quantum 2C.sm (65.23 KiB) downloaded 436 time(s).
Fourier Quantum CoC Model.sm (103.49 KiB) downloaded 459 time(s).
Fourier Quantum DNA.sm (357.52 KiB) downloaded 459 time(s).

... suite [some didn't upload]

Fourier Quantum Slit.sm (27.39 KiB) downloaded 439 time(s).
Fourier Quantum Satellites.sm (22.71 KiB) downloaded 444 time(s).
Fourier Quantum Double Slit Probability.sm (36.75 KiB) downloaded 449 time(s).

... CoC diffraction has been refactored
to speed up ~ 20 times faster !

Jean

Fourier Quantum CoC Model.sm (122.28 KiB) downloaded 455 time(s).

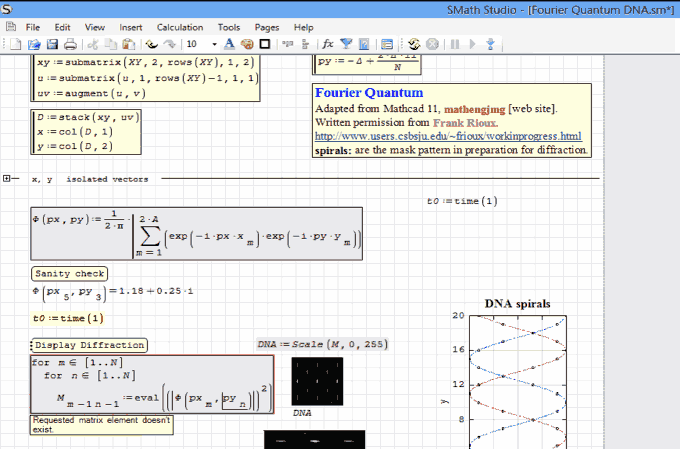

Hello Jean

I get the error "The requested matrix element doesn't exist"

I think that Smath Studio does not accept the sub-index zero,
since at the beginning of the "for" loop in the operations
M (m-1 and n-1) this value is obtained.



Best Regards

Carlos

Wrote

Hello Jean

I get the error "The requested matrix element doesn't exist"

I think that Smath Studio does not accept the sub-index zero,
since at the beginning of the "for" loop in the operations
M (m-1 and n-1) this value is obtained.

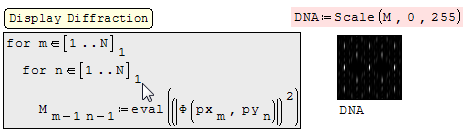

Not this way Carlos ... maybe ?

1. As you open the document, do you get [1..N]
2. original is 1..N , i.e: NOT nested
3. if you can't re-create unested 1..N
4. sub-index [1..N]1

Jean ... Does it work ?

It may have freaked all other Collabs that downloaded.
Surprising: none commented !



Fourier Quantum DNAsanity.sm (490.17 KiB) downloaded 460 time(s).

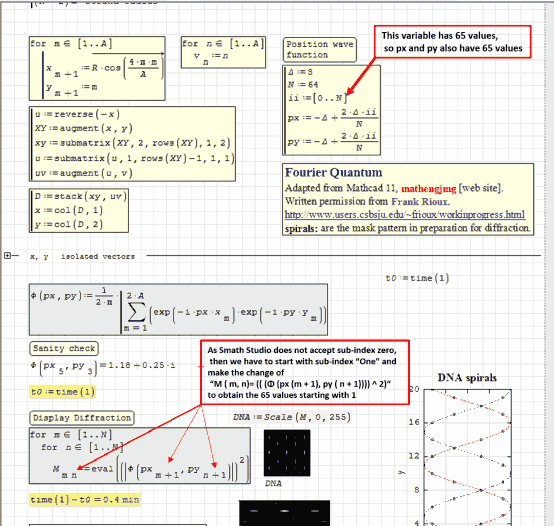

Hello Jean,

I made the changes shown in the printout shown
so that the worksheet does not indicate an error.




Fourier Quantum DNA Copy.sm (52.97 KiB) downloaded 452 time(s).


Best Regards

Carlos

Wrote

Hello Jean,

I made the changes shown in the printout shown
so that the worksheet does not indicate an error.

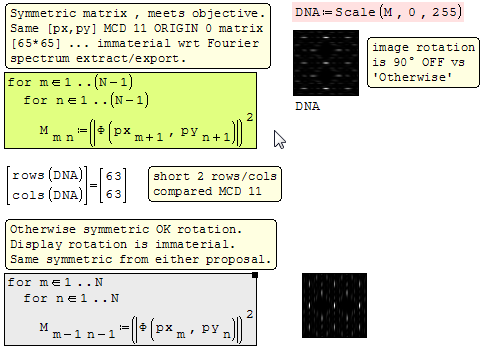

Thanks Carlos for your precious collaboration.
The size of the matrix does not matter.
What matters is a symmetric matrix.

Jean

Fourier Quantum DNA Copy [NOT Symmetric].sm (181.04 KiB) downloaded 354 time(s).

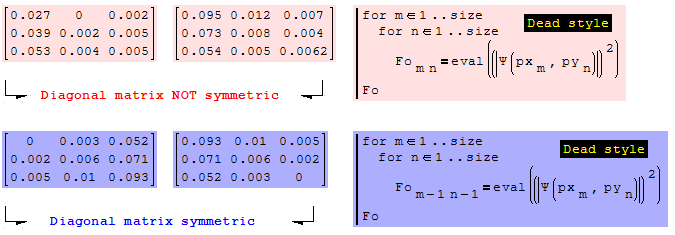

Wrote

What matters is a symmetric matrix.

This project is one of some that don't reconciliate the 0/1 indexing base.
For this particular application, it is immaterial wrt the end use.
Just interesting to be aware. Seemingly, 0 indexing is more universal.

Jean



Fourier Quantum DNA Copy [Symmetric Reconciliation].sm (182.91 KiB) downloaded 388 time(s).
Fourier Quantum DNAsanity.sm (488.27 KiB) downloaded 480 time(s).

Hello Jean.

Following the steps indicated in the document;
dna.pdf (181.59 KiB) downloaded 313 time(s).
which I have downloaded from the reference you indicate,
and with the data shown there, the following
pattern of refraction is opted;



Fourier Quantum_Jean_Original_Values.sm (221.15 KiB) downloaded 452 time(s).

And I wonder if it will be possible:
get the negative of the image in a native way in Smath Studio?

Best Regards

Carlos

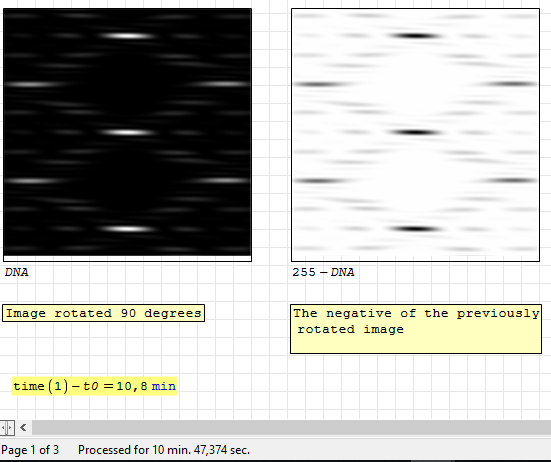

Wrote

And I wonder if it will be possible:
get the negative of the image in a native way in Smath Studio?

It's greyscale, I guess 255-DNA should be enough....



Fourier Quantum_Jean_Original_Values - opt_01.sm (167.03 KiB) downloaded 430 time(s).

Hello: Carlos, Davide ... thanks for your interest.

Ah! this time, SS 6179 does not open 6884.
The Mathcad 11 0 base index original document produces
the required square symmetric matrix. Smath can do it
only as demonstrated. That the SS/MCD matrices are NOT
exactly same is immaterial. The SS symmetric best imitates MCD.

Why SS 6179 does not open 6884 ? Error message is not inductive.
Presumably, 6884 does not save the image compatible to 6179.

Quantum slit runs in less time for exploring symmetric/asymmetric.

Jean



Fourier Quantum Slit.sm (37.37 KiB) downloaded 464 time(s).
