Definition of Variables with several "if". - How to define a variable depending on other variables - Messages
#1 Posted: 12/31/2021 1:02:56 PM
Is it possible to define a variable, that depends on an other variable.
I want to define a variable like: "Mpa".
The "Mpa" is 400N/mm^2, if the variable "Diameter" is 12mm.
If the variable "Diameter" is 14mm, "MPA" should be 300N/mm^2.
If the variable "Diameter" is 16mm, "MPA" should be 250/mm^2.
...
At the end, the list is about 15 different possibilities.
I came from Mathcad. Mathcad has the option "add Line". With this, you can add as much "if"-Lines as you wand.
Is there a possibility to do this in Smath Studio also?
Thank you.
I want to define a variable like: "Mpa".
The "Mpa" is 400N/mm^2, if the variable "Diameter" is 12mm.
If the variable "Diameter" is 14mm, "MPA" should be 300N/mm^2.
If the variable "Diameter" is 16mm, "MPA" should be 250/mm^2.
...
At the end, the list is about 15 different possibilities.
I came from Mathcad. Mathcad has the option "add Line". With this, you can add as much "if"-Lines as you wand.
Is there a possibility to do this in Smath Studio also?
Thank you.
#2 Posted: 12/31/2021 2:09:10 PM
If I understood correct, what you need is cases() function.
#3 Posted: 12/31/2021 3:22:15 PM
Please note that cases() function is not directly included in SMath "core" functions; you will find it after installing a plug-in called Custom Functions.
You can find it in SMath extension manager.
You can find it in SMath extension manager.
#4 Posted: 12/31/2021 4:49:17 PM
I came from Mathcad. Mathcad has the option "add Line". With this, you can add as much "if"-Lines as you wand.
Is there a possibility to do this in Smath Studio also?
Lot more pro in Smath ... coma twice on any place holder.
#5 Posted: 1/1/2022 8:07:11 AM

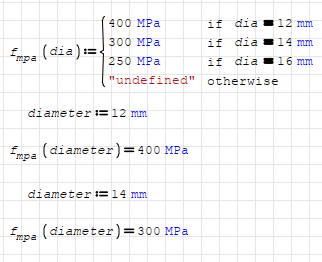

You can make cases() as a function.
This will make mpa value easily calculated.
Regards
This will make mpa value easily calculated.
Regards
#6 Posted: 1/1/2022 8:38:58 AM
Inspired from overlord.
#7 Posted: 1/1/2022 11:54:28 AM

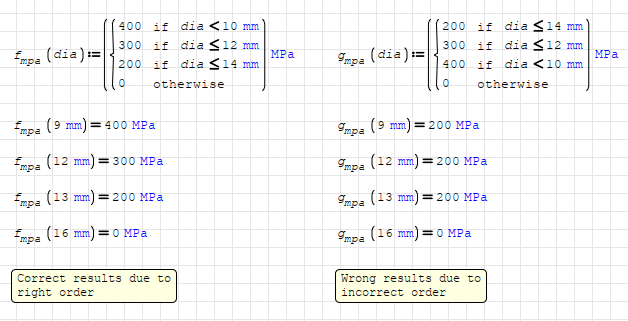

Just a reminder, you should watch for order in cases.
Once one if condition is provided, below won't be regarded.
Regards
Once one if condition is provided, below won't be regarded.
Regards
#8 Posted: 1/1/2022 4:12:49 PM
Hey, thank you all. You are awesome. It worked. Thanks for your detailed inputs.
Regards…
Regards…
#9 Posted: 1/1/2022 7:43:51 PM
Hello

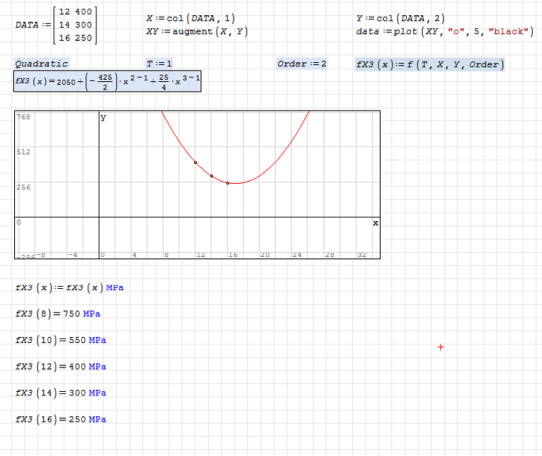

For this type of project, I try to fit the data to a curve and find its equation, and thus calculate any value in the specified range.
Although in this case, the values given are very few, as an example I annex the corresponding calculation.
Define_a_Variable_Ajust_by_Last_Square.sm
Best Regards
Carlos
For this type of project, I try to fit the data to a curve and find its equation, and thus calculate any value in the specified range.
Although in this case, the values given are very few, as an example I annex the corresponding calculation.
Define_a_Variable_Ajust_by_Last_Square.sm
Best Regards
Carlos
#10 Posted: 1/1/2022 11:11:01 PM
-
