FIR Filter - "response" function to apply FIR filter - Messages

#1 Posted: 11/3/2019 1:34:37 PM
Alexander Dräbenstedt

Alexander Dräbenstedt

1 likes in 3 posts.

Group: User

Hi,
Is there a function to apply a FIR filter to a data vector, like "response" in Mathcad?
I could write my own convolution, but it will become cumbersome at the beginning and end of the vector.

I found the remez function to generate arbitrary pass/stop band combinations, its nice. Are there also the more basic generators for high/low-pass filters somewhere?
#2 Posted: 11/3/2019 7:34:49 PM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote

Is there a function to apply a FIR filter to a data vector, like "response" in Mathcad?
I could write my own convolution, but it will become cumbersome at the beginning and end of the vector.

I found the remez function to generate arbitrary pass/stop band combinations, its nice. Are there also the more basic generators for high/low-pass filters somewhere?

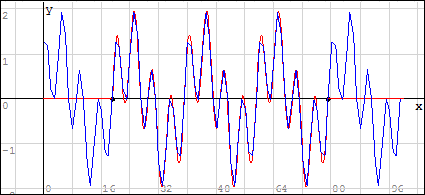

You can map 2D, 3D to any math function.
Why not show something. Filter is too general
Filter/smooth ... Filter band ...

0Appendix Pulse train.sm (6 KiB) downloaded 193 time(s).
Convolution Numerical [Pulse model].sm (24 KiB) downloaded 171 time(s).
0Appendix Gaussian Convolution.sm (21 KiB) downloaded 187 time(s).
0Appendix_2 Toise Bidirectional.sm (36 KiB) downloaded 199 time(s).
Convol.sm (93 KiB) downloaded 196 time(s).
Maths Filter EQMF.sm (30 KiB) downloaded 199 time(s).
Maths Filter Igor.sm (40 KiB) downloaded 189 time(s).
#3 Posted: 11/4/2019 9:23:21 AM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote

Is there a function to apply a FIR filter to a data vector, like "response" in Mathcad
?


I don't think much of the Mathcad response 20 years old maybe.
In those days, they fight imitating analog filters.
Attach your signal data, what you want to do.


Maths Filter response.sm (18 KiB) downloaded 212 time(s).

#4 Posted: 11/5/2019 11:25:42 AM
Alvaro Diaz Falconi

Alvaro Diaz Falconi

1,020 likes in 1,693 posts.

Group: User

Hi. This function emulates the matlab filter function (https://uk.mathworks.com/help/matlab/ref/filter.html) Hope it's helps.

filter.sm (34 KiB) downloaded 216 time(s).

Best regards.
Alvaro.
1 users liked this post
sergio 11/5/2019 12:49:00 PM
#5 Posted: 11/5/2019 6:15:55 PM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

... lot more smoothing in there.

filter.sm (49 KiB) downloaded 204 time(s).
Fourier Budapest39 Smoothing_2.sm (46 KiB) downloaded 201 time(s).
Fourier DCT-II [Data].sm (142 KiB) downloaded 167 time(s).
