#1 Posted: 3/9/2016 2:07:33 PM
Ryan Freund

Ryan Freund

19 likes in 339 posts.

Group: User

I thought somewhere on here someone created a small function for finding the area of a polygon based on coordinates.

I will create a matrix or seperate matrices and then stack them to create one matrix which will represent the coordinates of a polygon.
I then need to find the area of this polygon. I don't think it should be too difficult to create a function to replicate the procedure shown here, but I thought someone had done this before.

Thanks for any help in advance!
#2 Posted: 3/9/2016 2:11:33 PM
Davide Carpi

Davide Carpi

1415 likes in 2872 posts.

Group: Moderator

Look in the Extensions Manager > Examples > PolyProperties

2016-03-09 23_44_08-SMath Studio Desktop - [PolyProperties.sm_].png
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#3 Posted: 3/9/2016 6:30:50 PM
Jean Giraud

Jean Giraud

983 likes in 6866 posts.

Group: User

As simple as that.

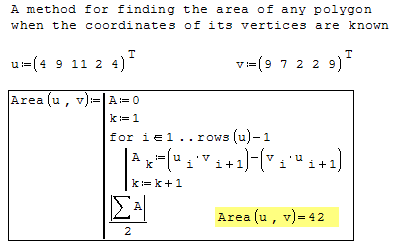

Forum Polygon Area.bmp

Jean
#4 Posted: 3/12/2016 10:20:25 AM
Ryan Freund

Ryan Freund

19 likes in 339 posts.

Group: User

Sorry I forgot to say, Thanks!
