Horizontal spacing of values in matrix

Horizontal spacing of values in matrix - Values are too close and so unreadable - Messages

#1 Posted: 4/16/2018 7:36:12 AM
m227

m227

4 likes in 29 posts.

Group: User

Hi, i'd like to be able to change spacing between columns in a matrix. My current view is like shown below and it is not very readable.

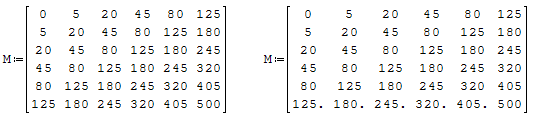

2018-04-16 12_31_16-SMath Studio.png
Is there any way to improve it? What about an ability to add some horizontal/vertical grid?
#2 Posted: 4/16/2018 7:55:21 AM
frapuano

frapuano

13 likes in 115 posts.

Group: User

Matrix formatting is through the Davide's plugin.
It is not possible to do something directly ...or you need to start to convert numbers in string add the spacing and so on to improve just the formatting but you have no more numbers but string .. it doesn't look a practical idea .

Best regards

Franco
#3 Posted: 4/16/2018 9:32:13 AM
Martin Kraska

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

For display (not for input) you can use the Table Region plugin. Otherwise just generate the input as separate columns and make the matrix using augment() afterwards. This has the advantage of better control on units per column.
Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#4 Posted: 4/16/2018 12:32:23 PM
Jean Giraud

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote

What about an ability to add some horizontal/vertical grid?



What would that do ? Use Excel instead.
Under the hood, a matrix is a one col vector.
Personally, no need for freaked matrix.

#5 Posted: 5/4/2018 8:05:02 AM
henry crun

henry crun

0 likes in 34 posts.

Group: User

Lightly shaded columns might be visually effective. Probably one of those "easy to say - 3 days coding to do" things.

[Personally, I'm working on an auto-complete combobox, and its taken 3 days so far, and I'm nowhere near satisfied with it]
#6 Posted: 5/4/2018 3:03:10 PM
Jean Giraud

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote

Lightly shaded columns might be visually effective. Probably one of those "easy to say - 3 days coding to do" things.



Code what for what ?
Only gray scale for 100% color blind.

#7 Posted: 5/4/2018 3:19:24 PM
Arie

Arie

93 likes in 285 posts.

Group: User

Wrote

Lightly shaded columns might be visually effective.



Take a look at table region plugin: https://en.smath.info/forum/yaf_postst1953_Table-Region.aspx
Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW
