Long line formula

#1 Posted: 9/24/2023 1:45:23 PM

171 likes in 102 posts.

Group: User

Hello Everybody,

I have a small practical question:
How to split a long line (formula) on two or more lines.

I think that the subject was explained somewhere but I’m not sure about.

I know the primary solution of allocation variable names for the parts of the formula, but…

Thanks for your help.
Ioan

Do to others as you would like them to do to you! Knowledge is of no value unless you put it into practice - Chekhov

#2 Posted: 9/24/2023 2:20:16 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
How to split a long line (formula) on two or more lines.

If your formula is piecewise composed of ± pieces, stack those pieces.

#3 Posted: 9/24/2023 7:13:40 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
How to split a long line (formula) on two or more lines.

Composite of [+,-,/] may be reduced built-in Smath numden

1 users liked this post

ioan92 9/25/2023 5:46:00 AM

#4 Posted: 9/24/2023 8:48:46 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

Write an expression, put the cursor to where you want a line break and press Ctrl-Enter.
This works only once in a formula, not inside results and not inside brackets.

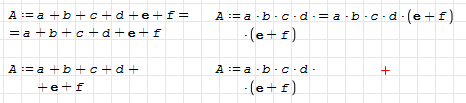

2023-09-25 01_45_02-SMath Solver - [Worksheet2_].png

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

2 users liked this post

Oscar Campo 9/24/2023 8:54:00 PM, ioan92 9/25/2023 4:20:00 AM

#5 Posted: 9/27/2023 11:16:56 AM

⚜ Kenny Lemens, P.E. ᵂᴵ

74 likes in 164 posts.

Group: User

Greetings,

You could also word-wrap your formula:

__________________________ *

where the 'string' uses newline characters to force on the next line (\000A\ is the special code SMath uses, just copy/paste this and it will word-wrap the string). You can copy and paste the following into your worksheet:

"a+b+\000A\0+c+d+\000A\0+e+f"

write your math expression as a 'string'
pass that value through the str2num() function; it will be evaluated

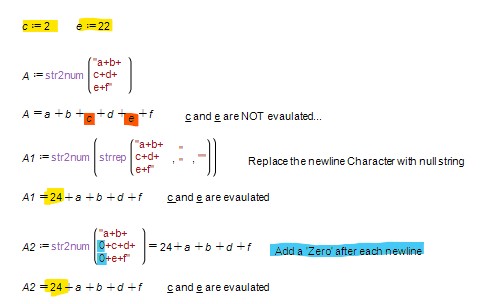

*There is an issue:

Show Spoiler

May this be of Good Help;
⚜ Kenny Lemens, P.E. ᵂᴵ

"No matter where you go, there you are." -Buckaroo BanzaiHotkeys: https://en.smath.com/forum/resource.ashx?a=45771&b=2

1 users liked this post

ioan92 9/27/2023 2:12:00 PM

#6 Posted: 9/27/2023 1:22:56 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
How to split a long line (formula) on two or more lines.

I have yet to see such long formula from native Engineering.
If your formula results from symbolic expansion... try maple.
For curiosity and help, show an image of that formula.
I have a 25 pages long formula ... Nothing can be done !

1 users liked this post

ioan92 9/27/2023 2:12:00 PM

#7 Posted: 9/27/2023 2:30:18 PM

ioan92

171 likes in 102 posts.

Group: User

Thank you all for your kind answers.
In fact, I looked more to something like in Mathcad: (without limitations as mentioned by Martin - only one shot)
https://www.mathcad.com/en/blogs/mathcad-4-equation-wrapping#:~:text=Here%20are%20two%20quick%20keyboard,get%20PTC%20Mathcad%20Prime%204.0.&text=To%20toggle%20breaking%20on%20the,instantly%20moves%20down%20a%20line.
Best Regards,
Ioan

Do to others as you would like them to do to you! Knowledge is of no value unless you put it into practice - Chekhov

#8 Posted: 9/27/2023 2:33:47 PM

⚜ Kenny Lemens, P.E. ᵂᴵ

74 likes in 164 posts.

Group: User

Greetings,

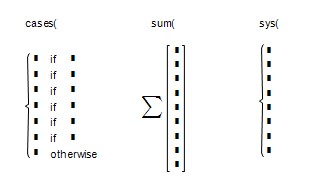

I have used Mathcad's split feature as well and I can understand your plight. Keep in mind some other alternatives to present your data. For instance, you can use the a cases() function to organize your criteria/responses in a compact manner:

cases(#,#,#,#,#,#,#,#,#,#,#,#,#)

You can also explore sum() function with a matrix in it:

sum(mat(#,#,#,#,#,#,#,#,#,9,1))

or just the system of equations feature:

sys(#,#,#,#,#,#,#,#,8,1)

Finally, you can just select your math statement and decrease the font size such that your equation will fit on the page. I have resorted to decreasing the font down to font size [2] in order for my matrix/tabulated data to fit on one page width; it served my purposes. [2023-09-28]

Also: Jean, Thank you for the good laugh! I always enjoy your litany of responses.

Show Spoiler
