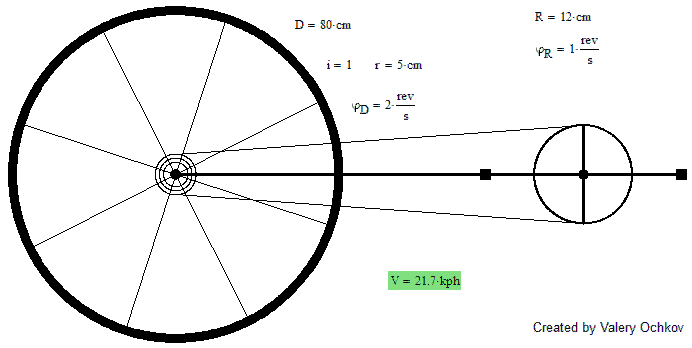

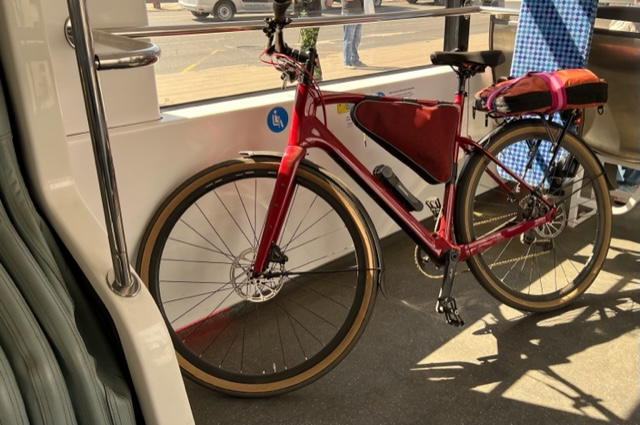

I would like to create one digital twice of my bike in SMath.
With seven instead of three gears and with a chain tensioner.
Help me please. The first step in attach.


Bike.xmcd (86 KiB) downloaded 48 time(s).

Wrote

I would like to create one digital twice of my bike in SMath.
With seven instead of three gears and with a chain tensioner.
Help me please. The first step in attach...

Please attach the SMath file (.sm)

Wrote

Wrote

I would like to create one digital twice of my bike in SMath.
With seven instead of three gears and with a chain tensioner.
Help me please. The first step in attach...

Please attach the SMath file (.sm)

I have only Mathcad 15 file. Sorry!

Your mathcad example can be done in SMath.
But I don't have the willpower to do it.
Here is the pdf for mathcad file.
And sm file without graphics.
Maybe there is a user who will help you.

Regards

bike_unleashed.pdf (61 KiB) downloaded 43 time(s).
bike.sm (22 KiB) downloaded 39 time(s).

Wrote

I would like to create one digital twice of my bike in SMath.
With seven instead of three gears and with a chain tensioner.
Help me please. The first step in attach.

4+3 gears.



bike.sm (22 KiB) downloaded 53 time(s).

Best regards.
Alvaro.
