clothoid

clothoid - curvature - Messages

#1 Posted: 9/26/2023 2:22:21 AM
Valery Ochkov

Valery Ochkov

55 likes in 634 posts.

Group: User

Continuing the topic
https://en.smath.com/forum/yaf_postst23677_Why-I-have-no.aspx

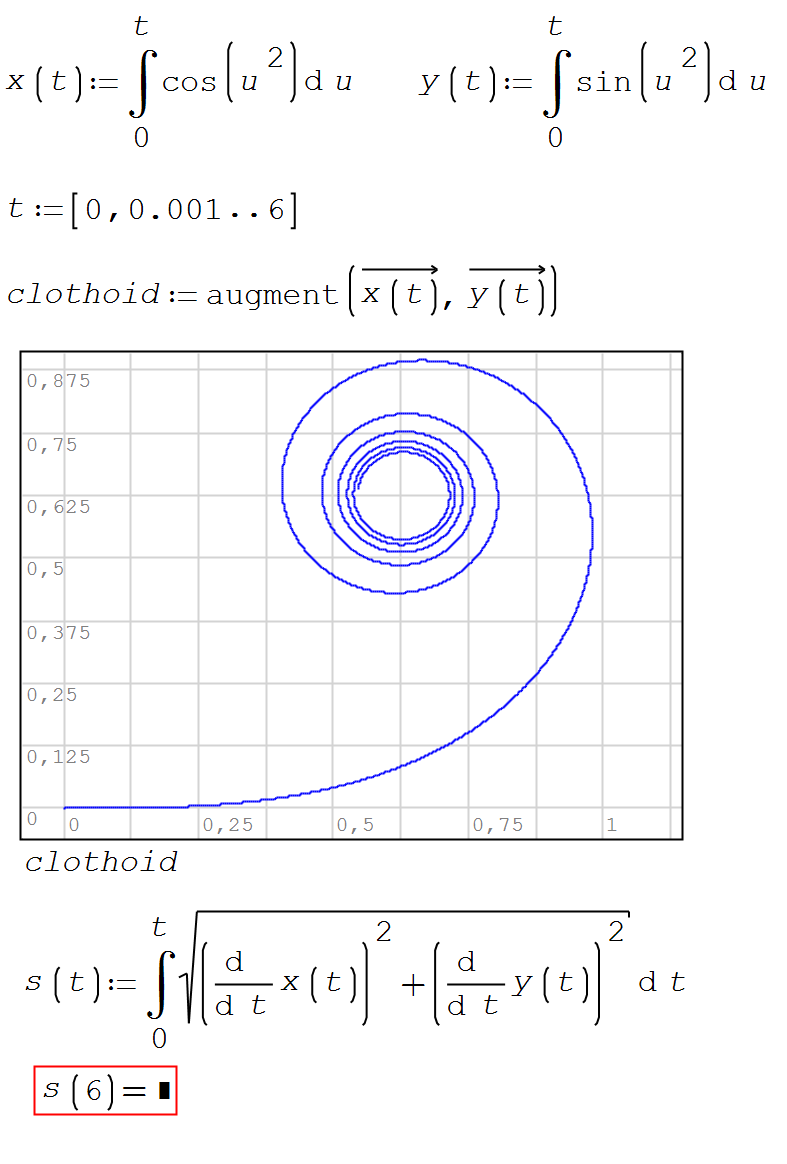

This is a clothoid or Euler spiral (https://en.wikipedia.org/wiki/Euler_spiral). It is said about it that its curvature depends linearly on its length. How to show it in SMath?
Spiral-Euler.sm (5.75 KiB) downloaded 308 time(s).
#2 Posted: 9/26/2023 8:41:22 AM
Alvaro Diaz Falconi

Alvaro Diaz Falconi

1,040 likes in 1,705 posts.

Group: User

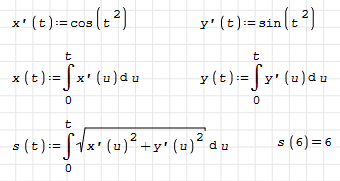

Hi Valery. SMath doesn't know how to handle the derivative of an integral, neither numerically nor symbolically. As workaround, you can try this approach:


Best regards.
Alvaro.
2 users liked this post
Valery Ochkov 9/26/2023 11:21:00 AM, Oscar Campo 9/26/2023 12:05:00 PM
#3 Posted: 9/27/2023 8:55:52 AM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote

This is a clothoid or Euler spiral (https://en.wikipedia.org/wiki/Euler_spiral). It is said about it that its curvature depends linearly on its length. How to show it in SMath ?


The curvature exists in the ± 1 range. But not as you attempted.
Let my tech doctor Win 10, will attach later.
Jean.

#4 Posted: 9/27/2023 7:06:44 PM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote

How to show it in SMath ?


Maths Clothoid Copy.sm (53.73 KiB) downloaded 287 time(s).

1 users liked this post
Valery Ochkov 9/28/2023 1:28:00 AM
#5 Posted: 9/28/2023 3:58:26 AM
Valery Ochkov

Valery Ochkov

55 likes in 634 posts.

Group: User

Wrote

Wrote

How to show it in SMath ?


Maths Clothoid Copy.sm (53.73 KiB) downloaded 287 time(s).



#6 Posted: 9/28/2023 3:59:06 AM
Valery Ochkov

Valery Ochkov

55 likes in 634 posts.

Group: User

1 users liked this post
Oscar Campo 9/28/2023 9:58:00 AM
#7 Posted: 9/28/2023 4:19:07 AM
Martin Kraska

Martin Kraska

1,260 likes in 2,186 posts.

Group: Moderator

Wrote

Continuing the topic

This is a clothoid or Euler spiral (https://en.wikipedia.org/wiki/Euler_spiral). It is said about it that its curvature depends linearly on its length. How to show it in SMath?

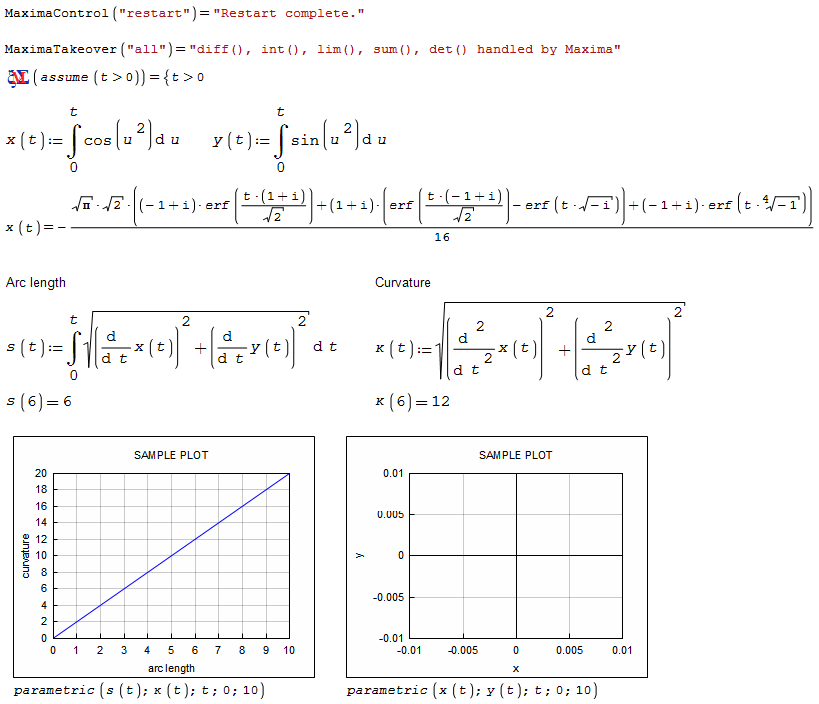

For the attached sheet to work, the Statistical Tools plugin must be deactivated, because it's erf() shadows the Maxima function erf().

The curvature-arclength plot is easily done, yet the xy plot of the curve itself fails because Maxima isn't able to evaluate the functions x(t) and y(t).

Yet, it is not proof of linearity, just an illustration.

Spiral-Euler_Kr.sm (34.32 KiB) downloaded 273 time(s).
Martin KraskaPre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
2 users liked this post
Oscar Campo 9/28/2023 9:58:00 AM, Valery Ochkov 9/28/2023 4:22:00 AM
#8 Posted: 9/28/2023 11:22:42 AM
Вячеслав Мезенцев

Вячеслав Мезенцев

1,487 likes in 1,793 posts.

Group: Moderator

Click to enlarge
Russia ☭ forever, Viacheslav N. Mezentsev
2 users liked this post
Valery Ochkov 9/28/2023 1:07:00 PM, Oscar Campo 9/28/2023 1:26:00 PM
