equation solve problem

equation solve problem - Messages

#1 Posted: 6/14/2023 9:12:21 PM
soomoon

soomoon

1 likes in 39 posts.

Group: User

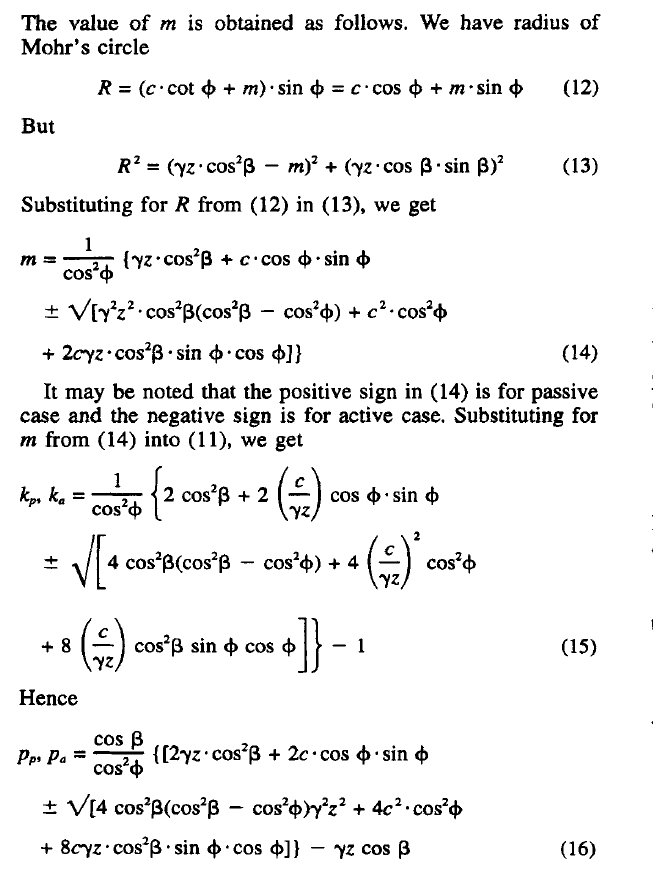

i want to solve below problem

m, ka, pa

2023-06-15 09 06 26.png


i try to solve this problem
but i can't get result.


20230614_lateral earth pressure.sm (100.47 KiB) downloaded 265 time(s).


Thanks in advance
#2 Posted: 6/14/2023 10:48:20 PM
Alvaro Diaz Falconi

Alvaro Diaz Falconi

1,040 likes in 1,705 posts.

Group: User

Hi. Maybe the attached helps, but's hard to know. At the eqn 16 I count two open [ and only one closed ].

20230614_lateral earth pressure.sm (74.8 KiB) downloaded 289 time(s).

Best regards.
Alvaro.
#3 Posted: 6/15/2023 7:35:16 AM
StvMath

StvMath

38 likes in 62 posts.

Group: User

My suggested solution is in the attached.

LateralEarthPressure.sm (9.05 KiB) downloaded 256 time(s).
#4 Posted: 6/15/2023 10:55:05 AM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote

My suggested solution is in the attached.


Get more accurate solutions from roots(,,,)

LateralEarthPressure.sm (13.13 KiB) downloaded 233 time(s).
#5 Posted: 6/15/2023 11:28:49 PM
Alvaro Diaz Falconi

Alvaro Diaz Falconi

1,040 likes in 1,705 posts.

Group: User

Hi. Another way, plugin-less version. Have the advantage that can recognize the active and passive cases.

Click to enlarge

20230614_lateral earth pressure polyroots.sm (77.28 KiB) downloaded 261 time(s).

Best regards.
Alvaro.
