Hello,
I was looking for a similar topic on the forum, but I couldn't find it.
Is it possible to draw such a graph.
Graphs.sm (4 KiB) downloaded 47 time(s).

Wrote

Is it possible to draw such a graph.

Yes it is possible.
Here is your request.

Regards

Graphs_1.sm (4 KiB) downloaded 54 time(s).

You can get the 3D graph with the Maxima plugin
Scatter plot_Kr(adattato).sm (161 KiB) downloaded 40 time(s).
inspired by the discussion on this forum
full discussion

sergio

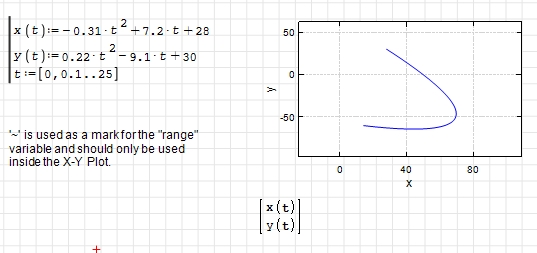

Hi. Just another way, in addition to the solutions offered by Overlord and Pompelmo, using the ability of XYPlot plugin for plot parametric curves, as is explained here.

XYPlot Parametric.sm (5 KiB) downloaded 47 time(s).


Best regards.
Alvaro.

Wrote

Is it possible to draw such a graph.

... export your creation
Cheers ... Jean.

Utilities XY plot [Butterfly].sm (29 KiB) downloaded 33 time(s).

Wrote

using the ability of XYPlot plugin for plot parametric curves

Parametric ability is a good addition.
I wish 2D-Plot has this feature too.
I also would like animation for XY-Plot.

The Maxima plugin provides plotting functions, among them parametric plots. For details look for "kraska smath handbuch".

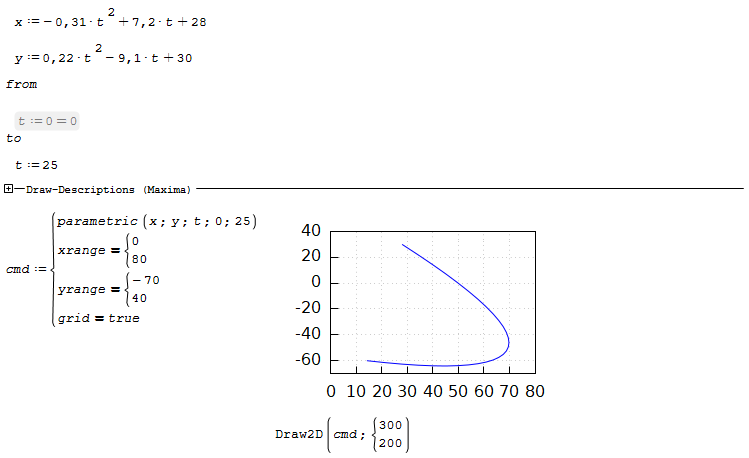

Note that there seems to be a png export glitch. The region t:=25 is disabled in the sheet but not grayed out in the export (image below). The parameter variable obviously must be undefined, otherwise the x and y expressions are just numbers.


para.sm (137 KiB) downloaded 31 time(s).

I have no recollection of Parametric Engineering project(s).
Whatever, this document advances your Parametric Journey.
Ultimately, export the project as a standard data table for publishing.
... offered up to the derivatives of the piece-wise project.
Comments, more help ... Welcome.
Cheers ... Jean.

Utilities XY plot Parametric.sm (89 KiB) downloaded 30 time(s).
