#1 Posted: 12/6/2018 10:09:17 PM

CBG

77 likes in 312 posts.

Group: User

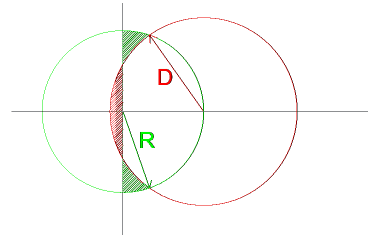

Is it possible to make a type of shading like the one shown in the figure?

Circle_Hatch.sm (27 KiB) downloaded 37 time(s).

Best Regards

Carlos

#2 Posted: 12/7/2018 2:48:25 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
It is possible to make a type of shading like the one shown in the figure

Thanks Carlos, superb.
You can have it shaded in all web colors as well.
I didn't add the arrows ... The two circles could
be done unicolor via rkfixed.

Jean

Maths Goat Radius.sm (132 KiB) downloaded 42 time(s).

#3 Posted: 12/7/2018 12:08:10 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

CBG, your algorithm for drawing a circle can be simplified.
Circle_HatchM.sm (30 KiB) downloaded 27 time(s).

1 users liked this post

Davide Carpi 12/7/2018 12:51:00 PM

#4 Posted: 12/7/2018 12:53:46 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Hola Carlos.

Beside Jean's random hatch, you can also fill a region with brute force algorithms, or using CreateMesh, with some restrictions (Origin must to be inside the region).

Circle_Hatch.sm (42 KiB) downloaded 46 time(s).

Best regards.
Alvaro.

#5 Posted: 12/13/2018 9:20:41 PM

CBG

77 likes in 312 posts.

Group: User

Hello Jean and Ber
Thank you very much for your answers.

Hola Alvaro.
Muchas gracias por tu respuesta.

Saludos

Best Regrads

Carlos
