#1 Posted: 7/4/2020 2:00:34 AM

0 likes in 4 posts.

Group: User

I have looked into vectorizing and tried cross product but I can't figure out how to return a matrix (and eventually a graph) of the function that is a dependent on the variable twall. Any help is appreciated. I'm trying to save money by using this program but it is harder than MathCAD to figure out the errors.

Trip

#2 Posted: 7/4/2020 6:24:48 AM

sergio

115 likes in 329 posts.

Group: User

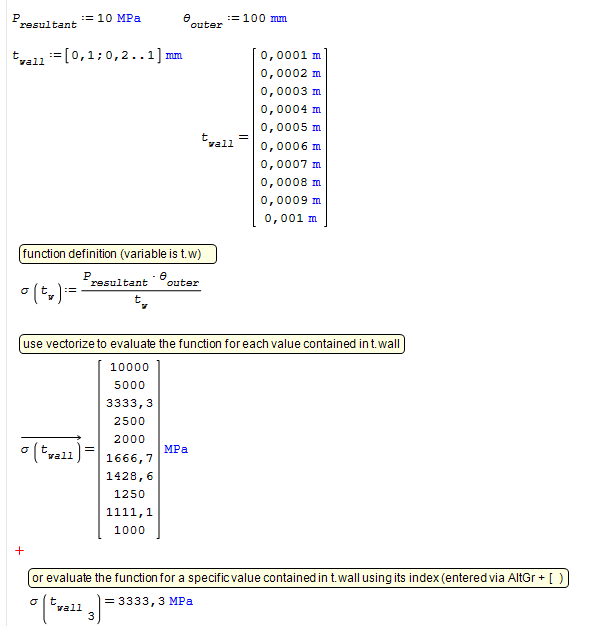

Try like this

sergio

#3 Posted: 7/4/2020 7:03:51 AM

Trip

0 likes in 4 posts.

Group: User

So I was able to do for the example but now I can't remember the keystrokes to get:

twall:="0,1;0,2..1"

The part in quotes is where I'm stuck. When I try to type a comma, nothing happens. I can't type 0 and then a comma or 0 and then a semi-colon. I can only type one period. I'm just missing some simple thing to generate what you show.

I'll keep checking back to my email for this thread. Thanks for reaching out.

Trip

#4 Posted: 7/4/2020 7:09:19 AM

sergio

115 likes in 329 posts.

Group: User

Use the range function.
Also remember that based on some options related to the set country, they lead to different use of the comma of the period and the semicolon
sergio

#5 Posted: 7/4/2020 7:10:52 AM

Trip

0 likes in 4 posts.

Group: User

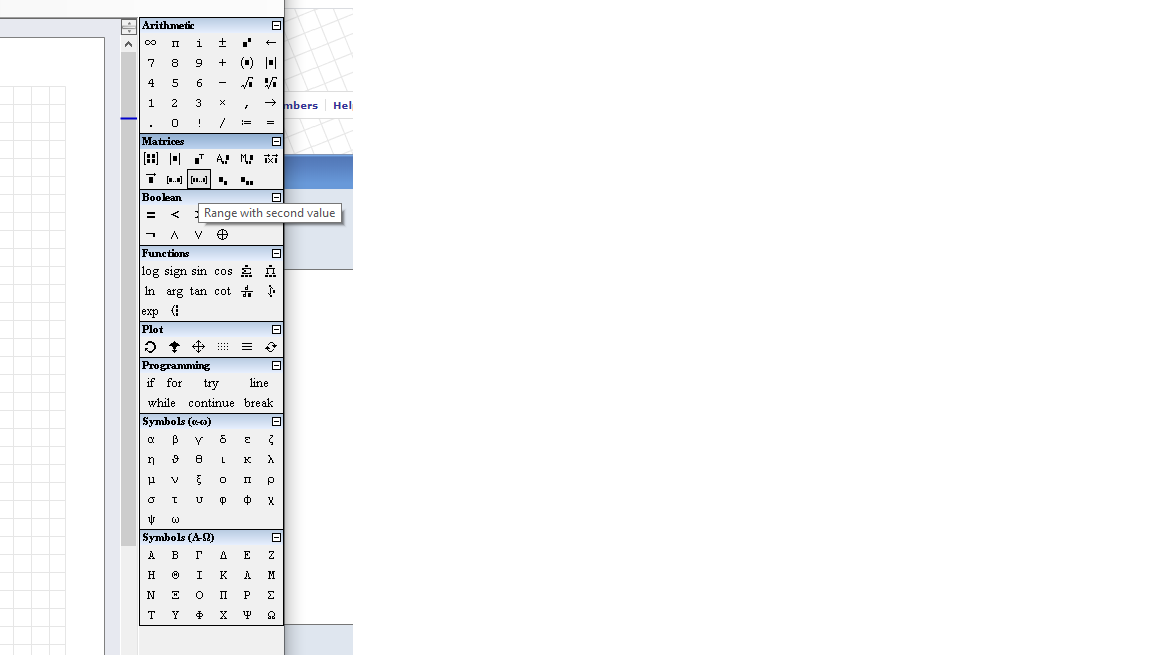

Now I re-found the range operator here:

#6 Posted: 7/4/2020 7:23:48 AM

Trip

0 likes in 4 posts.

Group: User

File not found.File not found.

I follow your keystrokes but I get error messages for the function I define and for the vectorized function. Any ideas?

#7 Posted: 7/4/2020 8:47:23 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Now I re-found the range operator here

or type coma select first place holder.

#8 Posted: 7/5/2020 12:11:48 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote

I follow your keystrokes but I get error messages for the function I define and for the vectorized function. Any ideas?

Hi Trip. It seems that you are using matrices subscripts instead dot subscript in the variable t. This make that sigma isn't well defined, and thus can't be vectorized. If you upload your file I'm sure that someone can tell you what's wrong.

Best regards.
Alvaro.

#9 Posted: 7/5/2020 2:48:58 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

If you just want it to work ... Jean

rangeUNK.sm (8 KiB) downloaded 184 time(s).
