Animate plots

#1 Posted: 11/6/2019 6:41:56 AM

7 likes in 158 posts.

Group: User

Hi guys.

Seeing how fast I got great and helpful answers yesterday, I thought I might ask another rather silly question. I am trying to animate a plot, and I have never done it before.

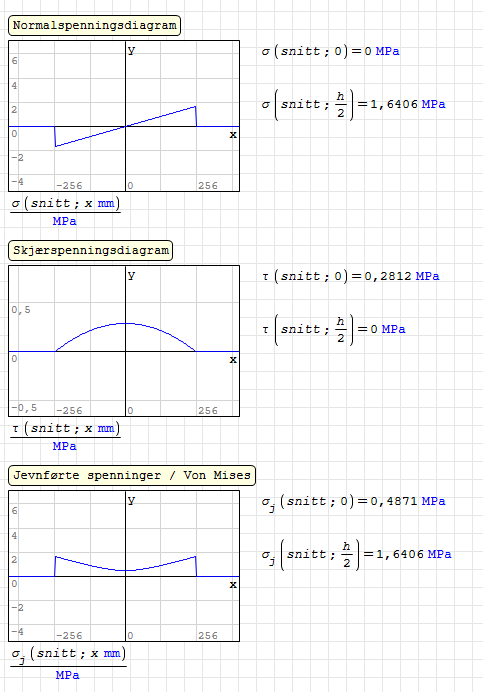

I have made a simple sheet ploting V,M for a rectangular simply supported beam with uniformly distributed load. I have also plotted sigma and tau for the section, as well as Von Mises.

I have tried to make 3D plots to show how stresses evovle through the length of the beam, and to some extent it illustrates that.

I have also tried to animate a 2D plot, to work like a cross section that moves along the length of the beam, but I cannot figure out how to make it work.

Any ideas where it went wrong for me?

Also; is it possible to plot stresses along y-axis as opposed to x-axis?

Thanks again :d

spenninger bjelke.sm (30.46 KiB) downloaded 1207 time(s).

#2 Posted: 11/6/2019 11:11:51 AM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Oh !!! too many questions in there.
Some typical animations:

0Anim Brownian.sm (9.94 KiB) downloaded 1147 time(s).
0Anim Butterfly.sm (15.42 KiB) downloaded 1179 time(s).
0Anim Analemma.sm (29.27 KiB) downloaded 1184 time(s).
0Anim Brownian 3D [Ber7].sm (24.55 KiB) downloaded 938 time(s).
0Anim CONVOLUTION.sm (27.89 KiB) downloaded 1126 time(s).
0Anim Cheval.sm (21.64 KiB) downloaded 1156 time(s).
0Anim Lorenz Attractor.sm (6.08 KiB) downloaded 1237 time(s).
0Anim Ellipse.sm (13.85 KiB) downloaded 1163 time(s).
0Anim Lorenz Attractor Norm2r.sm (10.48 KiB) downloaded 1192 time(s).
0Anim Gozilla.sm (11.57 KiB) downloaded 1159 time(s).
0Anim Model [Lissajous, Brownian, Butterfly].sm (39.48 KiB) downloaded 999 time(s).
0Anim Trifolium [Windmill Ber7].sm (25.85 KiB) downloaded 998 time(s).
0Anim Trifolium [Windmill].sm (17.34 KiB) downloaded 962 time(s).

#3 Posted: 11/6/2019 12:31:32 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Check out this thread
https://en.smath.com/forum/yaf_postst1068_Beam-calculation.aspx

#4 Posted: 11/6/2019 12:51:59 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
Also; is it possible to plot stresses along y-axis as opposed to x-axis?

1. Yes as discrete format ... augment(y,x) in reverse order.
2. surface 3D does not save settings. Plot f,g,j
not you had plot f(x,y) ...
3. can't doctor the last plot ... proved otherwise.

spenninger bjelke _1.sm (55.57 KiB) downloaded 1178 time(s).

#5 Posted: 11/6/2019 5:45:06 PM

hanskl

7 likes in 158 posts.

Group: User

Wrote
Check out this thread
https://en.smath.com/forum/yaf_postst1068_Beam-calculation.aspx

Wowzers!

#6 Posted: 11/6/2019 5:47:42 PM

hanskl

7 likes in 158 posts.

Group: User

Wrote

Wrote
Also; is it possible to plot stresses along y-axis as opposed to x-axis?

1. Yes as discrete format ... augment(y,x) in reverse order.
2. surface 3D does not save settings. Plot f,g,j
not you had plot f(x,y) ...
3. can't doctor the last plot ... proved otherwise.

spenninger bjelke _1.sm (55.57 KiB) downloaded 1178 time(s).

Thanks Jean!

I will try to plot about y-axis with the augment function.
Surface 3D not saving settings explains a lot! I think I tried to save those settings at least 10 times before giving up.

I will try to understand how plot animations work, and come back with a animated plot of my stresses..

Best regards,
Hans Kristian.

#7 Posted: 11/6/2019 6:58:23 PM

hanskl

7 likes in 158 posts.

Group: User

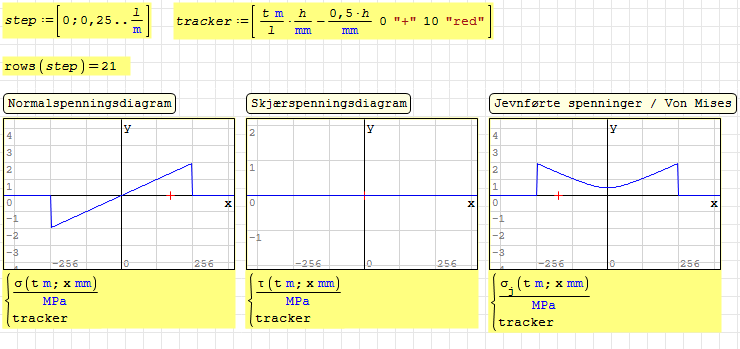

Well, I got the animations to work. I guess the mistake was to try to animate on a variable named 't'.

With a bit more tinkering I should be able to plot my stresses about y-y axis as well.

Best regards,
Hans Kristian

spenninger bjelke.sm (32.03 KiB) downloaded 1225 time(s).

#8 Posted: 11/6/2019 9:25:26 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
Well, I got the animations to work

I saved it under your name [Project Hans].
Always credit what's not personal.
Jean

#9 Posted: 11/7/2019 12:31:04 AM

Jean Giraud

983 likes in 6,866 posts.

Group: User

... that one is for training your Olympic Monkey !
First: show him the Smath video ... enjoy.
Jean

0Anim Fourier MonkeyBranching.sm (14.48 KiB) downloaded 1205 time(s).

#10 Posted: 11/7/2019 6:06:33 AM

hanskl

7 likes in 158 posts.

Group: User

Wrote

Wrote
Well, I got the animations to work

I saved it under your name [Project Hans].
Always credit what's not personal.
Jean

I find it somewhat funny my simple stress visualization sheet was something you deemed worthy of saving on your harddrive.

Thanks,
Hans Kristian

#11 Posted: 11/7/2019 6:07:53 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
I find it somewhat funny my simple stress visualization sheet was something you deemed worthy of saving on your harddrive.

It carries units so nicely, not usual vs so many projects
that fail [Units don't match].
The attach breakfast with chicken rather than eggs.
At least, my small laptop does not smoke.

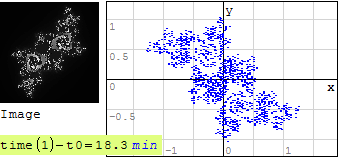

Pattern Julia Set [PUBLISH].sm (25.09 KiB) downloaded 972 time(s).

#12 Posted: 11/8/2019 7:08:47 AM

hanskl

7 likes in 158 posts.

Group: User

Wrote

Wrote
I find it somewhat funny my simple stress visualization sheet was something you deemed worthy of saving on your harddrive.

It carries units so nicely, not usual vs so many projects
that fail [Units don't match].
The attach breakfast with chicken rather than eggs.
At least, my small laptop does not smoke.

Thank you!

Mine actually managed this sheet in 1.2 minutes.. :d

#13 Posted: 11/8/2019 1:31:53 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Wrote
... that one is for training your Olympic Monkey !
First: show him the Smath video ... enjoy.
Jean

Another variation of Jean animation

0Anim Fourier MonkeyBranching 1.sm (18.08 KiB) downloaded 1197 time(s).

#14 Posted: 11/8/2019 2:58:53 PM

Andrey Ivashov

2,343 likes in 4,047 posts.

Group: Super Administrator

Wrote

Wrote
I find it somewhat funny my simple stress visualization sheet was something you deemed worthy of saving on your harddrive.

It carries units so nicely, not usual vs so many projects
that fail [Units don't match].
The attach breakfast with chicken rather than eggs.
At least, my small laptop does not smoke.

Pattern Julia Set [PUBLISH].sm (25.09 KiB) downloaded 972 time(s).

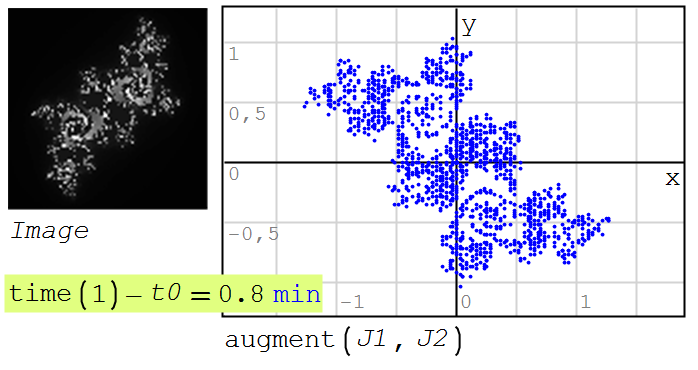

0.8 min using latest 7251:

Significant (20x) performance improvement for 3 years.

#15 Posted: 11/8/2019 9:42:22 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
Significant (20x) performance improvement for 3 years.

Impressive improvement ... MCD 11 XP Pro [4 sec]
Thanks Andrey ... Jean
