Hi, is there an option in SMath to create a conditional format for text regions (writer region)?
Simply I want the font or background of the text region turns say red if a certain condition is satisfied.
Thanks
#2 Posted: 3/8/2017 2:32:52 PM
Martin Kraska

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

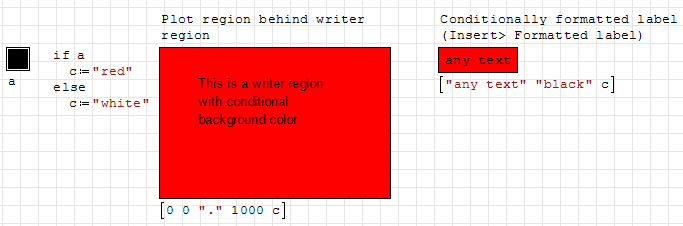

For one-line text you can use the conditionally formatted label, for arbitrarily sized rectangles you can use the standard plot region with a huge dot of variable color.

Click the button to change color...

Background.sm (4 KiB) downloaded 158 time(s).
2017-03-08 18_31_45-SMath Studio 0.98.6179 - [Background.sm_].png
Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
1 users liked this post
Mo 3/8/2017 5:35:00 PM
#3 Posted: 3/8/2017 5:48:07 PM
Mo

Mo

0 likes in 34 posts.

Group: User

Thanks Martin, really appreciate it!!
