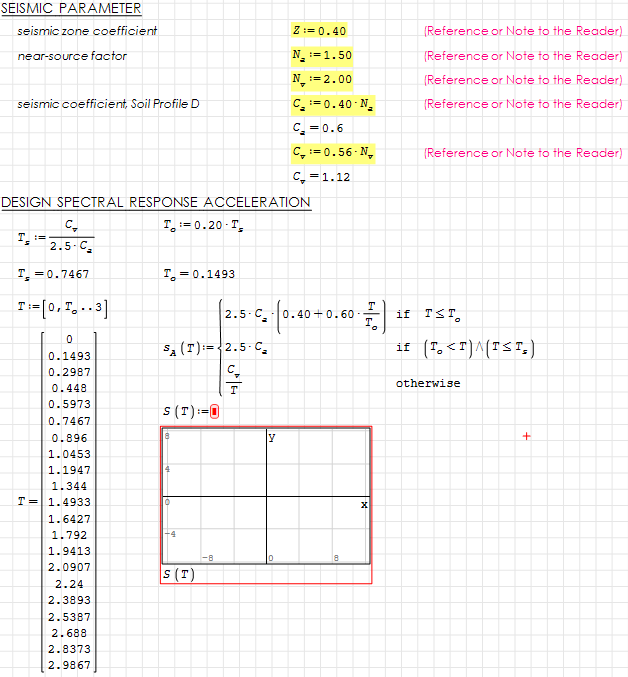

So I was shifting from Mathcad to SMath and I can't seem to do this properly. How do I get around graphing this response spectra.I'm quite new to SMath so please be understanding if I don't know of some functions within the program.

Design Response Spectra.sm (27 KiB) downloaded 40 time(s).

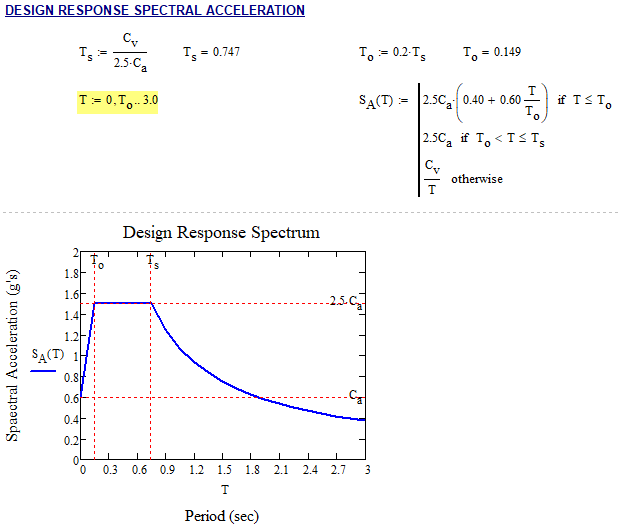

This is hot it works finely in Mathcad, what would be your suggestions?



Thank you for any help,

Here you have your file fixed.

Design Response Spectra_00.sm (28 KiB) downloaded 42 time(s).

The issues:

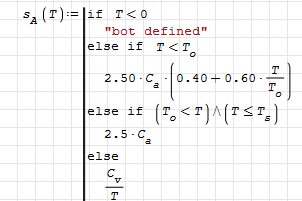

The function was made using "while", that is a loop iterator. You have to use if(), or cases() if you prefer (the latter is part of a 3rd party plugin).

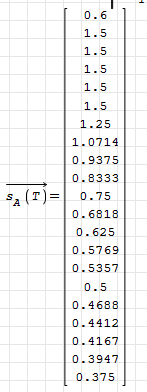

The evaluation for multiple values has to be done using vectorize() or alternatively by a loop


The built-in plot variable is always x for static plots, t to add animations.

Wrote

Thank you for any help,

Doctored in Smath SS 6179.
Cheers ... Jean.

Design Response Spectra Doctored.sm (32 KiB) downloaded 36 time(s).

... smooth derivative added.



Design Response Spectra Doctored.sm (108 KiB) downloaded 40 time(s).

An alternative way to write boolean of your function is using ltle() function.
It is one of functions of Custom Functions Plugin.

Regards

Wrote

Thank you for any help,

Thanks for your project. Saved in my personal project files.
I best remember visiting Manilla [April 1987]
Take care in Philippines ... Jean

Project Seismic Manilla.sm (570 KiB) downloaded 34 time(s).
