Step and Natural Response of Series RLC Circuit

Step and Natural Response of Series RLC Circuit - Messages

#1 Posted: 12/4/2017 12:03:27 AM
Norm Schutzkus

Norm Schutzkus

9 likes in 90 posts.

Group: User

Worksheet from Mathcad; no success graphing function v.C(t,R). Step and Natural Response of Series RLC Circuit.sm (120.89 KiB) downloaded 240 time(s).

i.C(t,R) As well.

I welcome the collab's review and advice.

Sincerely,

nas
#2 Posted: 12/4/2017 5:00:08 AM
Martin Kraska

Martin Kraska

1,260 likes in 2,186 posts.

Group: Moderator

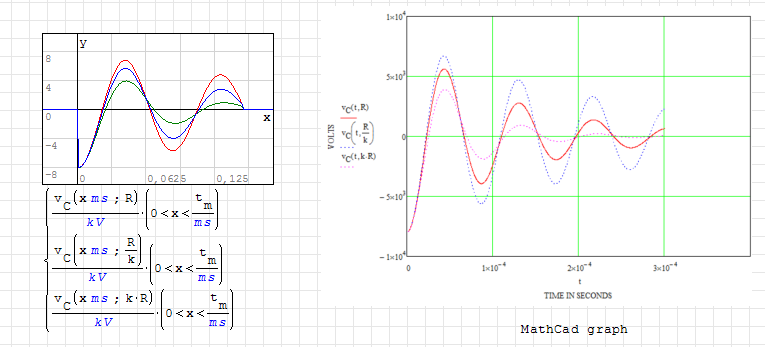

2017-12-04 08_56_45-SMath Studio - [Step%20and%20Natural%20Response%20of%20Series%20RLC%20Circuit.sm.png

Note that x in the plot is dimensionless. If you want to use x as argument in a function which expects a particular dimension, then just multiply x by an appropriate unit.

In order to get the result in well defined units, divide the function by this unit. This procedure documents the units of both x and y in itself.
Martin KraskaPre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#3 Posted: 12/4/2017 8:20:47 AM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

Few suggestions... still plenty of "Units don't match"
Smath is not a Mathcad clone. The "line program" have lot of similarities,
very often convertible, but not based entirely on the same source code conversion.
Universal maths are universal to both.

Step and Natural Response of Series RLC Circuit.sm (122.67 KiB) downloaded 257 time(s).

Up to the damping plots the system is a 2nd order DE that has beautiful
Laplace infinite solutions wrt parameters and various step function(s).

#4 Posted: 12/4/2017 7:54:25 PM
Norm Schutzkus

Norm Schutzkus

9 likes in 90 posts.

Group: User

Many thanks to you both for your help.

Sincerely,

Norm
