ZedGraph Question - No negative scale markers - Messages

#1 Posted: 2/27/2025 5:52:38 AM
RegRetired

RegRetired

8 likes in 134 posts.

Group: User

In the following ZedGraph, there are no major scaler markers in the negative y axis region. Have I missed an important parameter in setting up the graph?

ZEDGRAPH QUESTION.sm (38 KiB) downloaded 98 time(s).

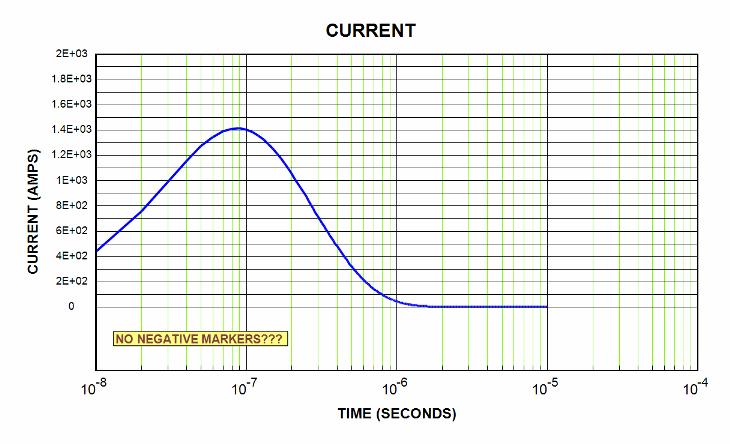

ZEDGRFAPH SMALL.png

Thanks,
Reg

Reg CurryLoveland, CO
#2 Posted: 2/27/2025 11:54:24 AM
Alvaro Diaz Falconi

Alvaro Diaz Falconi

992 likes in 1675 posts.

Group: User

Hi Reg. Logarithmic scales do not allow negative values. Therefore, they are not shown on either axis, since both have logarithmic scales.

Best regards.
Alvaro.
#3 Posted: 2/27/2025 12:05:45 PM
RegRetired

RegRetired

8 likes in 134 posts.

Group: User

Hi Alvaro,

The vertical scale is set to linear.

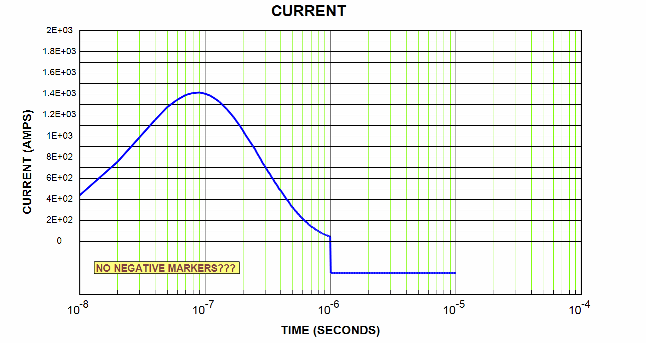

Screenshot 2025-02-26 210722.png

I fixed the later time values to -300.

Reg
Reg CurryLoveland, CO
#4 Posted: 2/27/2025 1:32:03 PM
Alvaro Diaz Falconi

Alvaro Diaz Falconi

992 likes in 1675 posts.

Group: User

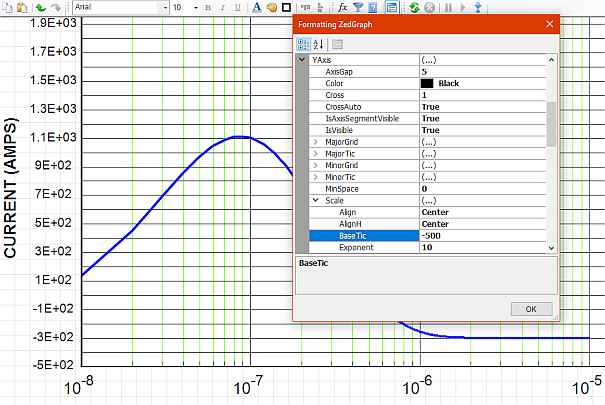

Oh, yes! You're right. I see "E" and think in logs. Please modify this parameter:


Best regards.
Alvaro.
1 users liked this post
RegC 2/27/2025 1:54:00 PM
#5 Posted: 2/27/2025 1:54:16 PM
RegRetired

RegRetired

8 likes in 134 posts.

Group: User

Hi Alvaro,

Thanks much!

ZedGraph is necessary for any log scales as far as I can tell. I has more options than I can keep track of. :>D

Thanks again,
Reg
Reg CurryLoveland, CO
