Hello all,

I am having lots of parameters collected to vectors. Almost half of the parameters have subscripts which make the vector having irregular line spacing because subscripts take more height. I need to show the values with a:=[] = [] , but the value vector has regular line spacing. As a consequence the parameters and their values lines do not match and that makes checking the values very difficult: counting on which line a certain parameter is (say line 29) and counting the lines of values and hoping to hit the correct line.

Only way to get the lines even closely matching is to give the vector a name, say M:=[], and then showing it with M=[] and adjusting the font size. Even this doesn't get exact fit when the spacing is irregular and after multiple subscript parameters there is more than one line offset.

So, how to get the listing easily checkable?

Wrote

So, how to get the listing easily checkable ?

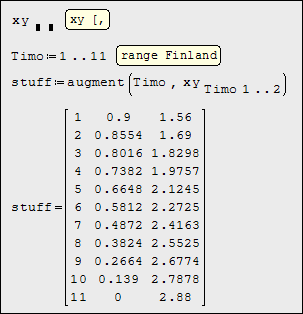

Something like this ? Welcome to Smath Community.



Spline [l,p,c] CLASSROOM_00 Hermite Esplina.sm (42 KiB) downloaded 22 time(s).

Few more utilities added.
The gray region up there is an Image region, background added.
It has no argument, thus dead and not saved in Smath system.
So, when you open or save the document you have this long message
Can't find ... click OK.
For otherwise specific request, please attach Smath document.
Cheers ... Jean

Spline [l,p,c] CLASSROOM_00 Hermite Esplina.sm (69 KiB) downloaded 22 time(s).

Greetings,

Wrote

... Almost half of the parameters have subscripts which make the vector having irregular line spacing because subscripts take more height. ...

You can embed math into a text region; this feature is showcased on this thread:


May this be of Good Help,
- [HIDE-REPLY-THANKS]SK[/HIDE-REPLY-THANKS] Kenny Lemens, P.E. ᵂᴵ
