#1 Posted: 3/7/2018 2:21:01 PM

CBG

77 likes in 312 posts.

Group: User

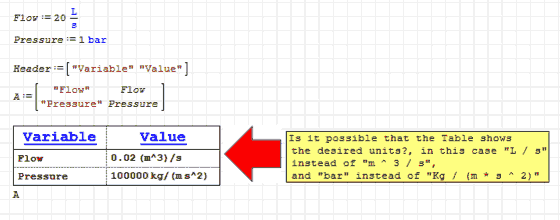

Will it be possible?

Table_Units.sm (9 KiB) downloaded 78 time(s).

Best Regards

Carlos

#2 Posted: 3/7/2018 2:41:34 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

Tne solution isn't smart at all but it is possible. Would be half the trouble, if one could store and use the unit in the unit summary vector "us" as they are defined (prevent symbolic processing, which even can't be suppressed when setting optimization to none).

Table_Units_Kr.sm (11 KiB) downloaded 64 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

1 users liked this post

CBG 3/7/2018 3:11:00 PM

#3 Posted: 3/7/2018 3:11:23 PM

CBG

77 likes in 312 posts.

Group: User

Thank you very much Martin,

But now how do I include the header?
since it does not appear as an option in the heading list.

Best regards

Carlos

#4 Posted: 3/7/2018 4:31:35 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

Wrote
Thank you very much Martin,

But now how do I include the header?
since it does not appear as an option in the heading list.

Best regards

Carlos

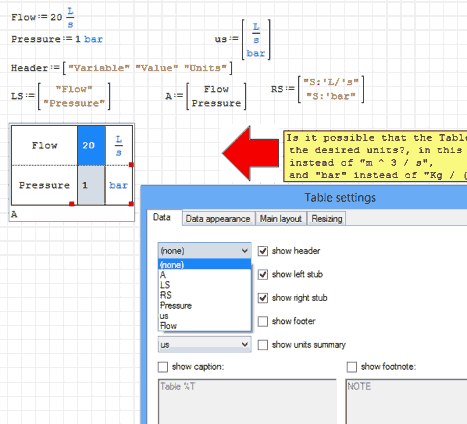

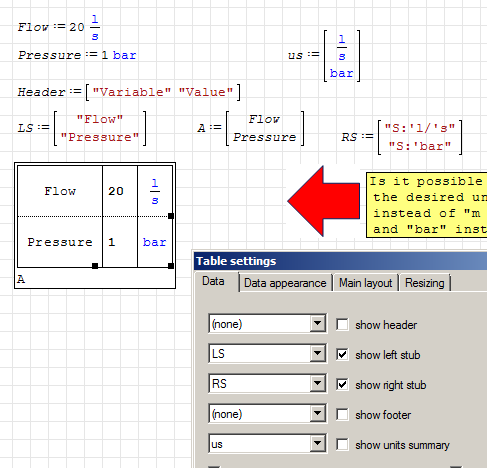

The header can only be specified for the columns of the data matrix, thus only single column objects are listed as choices for header variable. I don't know of options to fill the fields above the left and right row titles.

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#5 Posted: 3/7/2018 9:35:17 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Will it be possible?

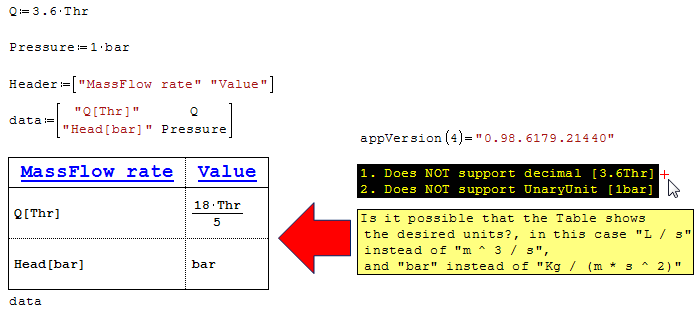

Unit system [base SI in Smath] is desperately too circular.

Table_Units(1).sm (9 KiB) downloaded 59 time(s).

#6 Posted: 3/8/2018 1:55:13 PM

CBG

77 likes in 312 posts.

Group: User

Many thanks to Martin and Jean

I think that the Table Region plugin should be
improved to include the possibility of incorporating
headers in the left and right columns.

Best regards

Carlos

#7 Posted: 3/8/2018 3:37:38 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I think that the Table Region plugin should be
improved to include the possibility of incorporating
headers in the left and right columns.

... some +++ from brain storming, will make it convenient.
Would be a great tool to collect all my fluids wrt their specifics.

Jean

#8 Posted: 6/18/2018 9:21:58 PM

Wesly Centerwall

26 likes in 156 posts.

Group: User

Hello,

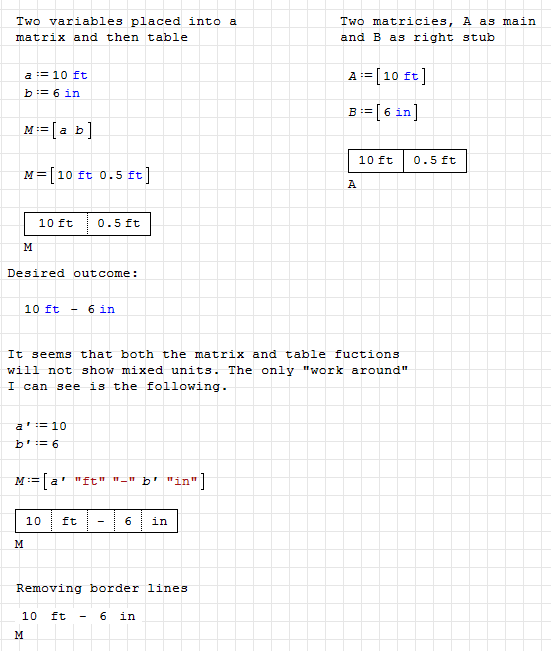

on the topic of units within the table, would the following be possible:

a:= ft
b:= in

matrix:=[a "-" b]

table:= matrix

Show a and b in a table with their corresponding units (ft and inches respectively)
Right now, a and b are shown as default unit only. Both are the same unit.

Why you may ask? This is an attempt at showing mixed units as a single output result in sheet. Often lengths are specified in feet + fractional inches.

#9 Posted: 6/18/2018 10:30:22 PM

CBG

77 likes in 312 posts.

Group: User

Something like this?

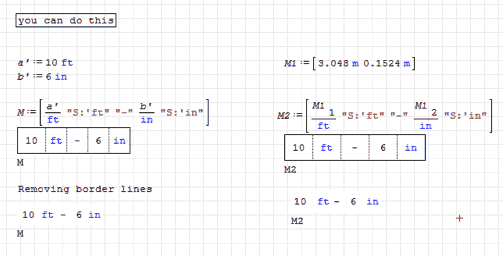

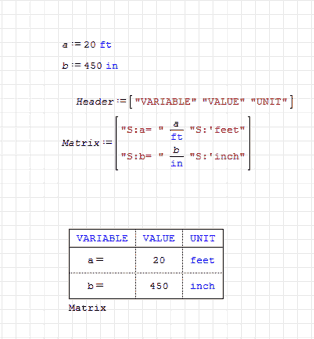

Table_Matrix.sm (8 KiB) downloaded 70 time(s).

Best Regrads

Carlos

#10 Posted: 6/19/2018 11:39:56 AM

Ruben Sidranski

17 likes in 463 posts.

Group: User

Carlos,
Some Jedi magic I don't understand in your sheet.
1) Where did you get the "S colon" {S:} as part of the variable? I don't remember seeing this command/function and don't understand it's use
2) How did you display Matrix (Table)? Most Matrices use the augment command to generate the table. It's not like you typed in Matrix= ... Found this answer, never used it Ctrl+Shift+T
3) Is this a true matrix that was created? Looks like just a data display table. Cannot use the values short of using the variables a or b

Thank you

#11 Posted: 6/19/2018 1:11:25 PM

Wesly Centerwall

26 likes in 156 posts.

Group: User

CBG, The idea is to show mixed units as single linear output.

Mixed Units Ideas - Table.sm (25 KiB) downloaded 57 time(s).

#12 Posted: 6/19/2018 1:39:04 PM

CBG

77 likes in 312 posts.

Group: User

Mixed Units Ideas - Table_R1.sm (38 KiB) downloaded 52 time(s).

Best Regards

Carlos

#13 Posted: 6/19/2018 1:48:06 PM

Wesly Centerwall

26 likes in 156 posts.

Group: User

Carlos,

Adding the "S:" makes it look much better.
Maybe at some point, the table region will allow for mixed units. For the time being this solution will work well.
thanks for the input.

Wes

#14 Posted: 6/19/2018 5:20:36 PM

CBG

77 likes in 312 posts.

Group: User

Hello ElSid

1).-The "S: '" is to be displayed as a unit in blue, and I learned it from Martin Kraska.

3).-It is the table region, which calls the variable matrix with the name.

Best Regards

Carlos

#15 Posted: 6/27/2018 1:22:20 PM

Wesly Centerwall

26 likes in 156 posts.

Group: User

Carlos,

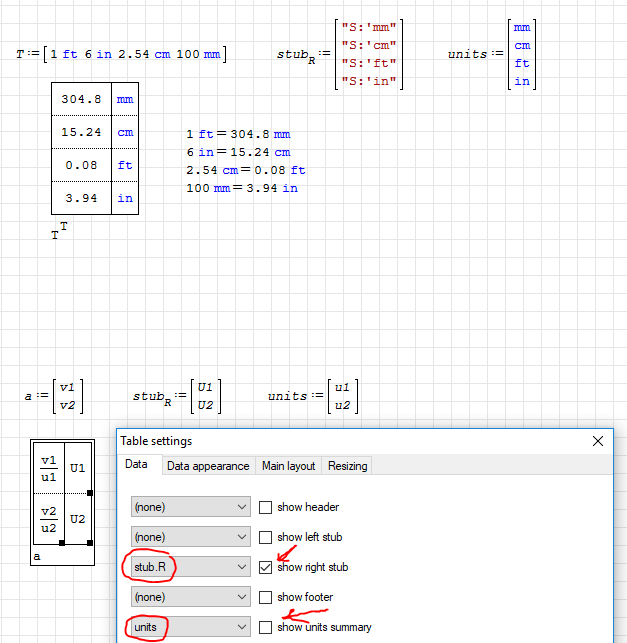

The "unit summary" function of the table region will actually perform the unit conversions for you.
Note that this is only for direct scalar multiplier conversions. It does not work for temp units...

This way you don't have to cancel out units in the matrix going into the table. The "units summary" will do that for you.

Note that the "unit summary" is selected but NOT displayed. There is also a proof with variables.

This idea comes from user ndtma on the Table Region topic, at least that's where i saw it first, maybe someone else did it first?

#16 Posted: 6/27/2018 2:09:34 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
It does not work for temp units...

... doctored for °C. Very convenient for me, up2next !

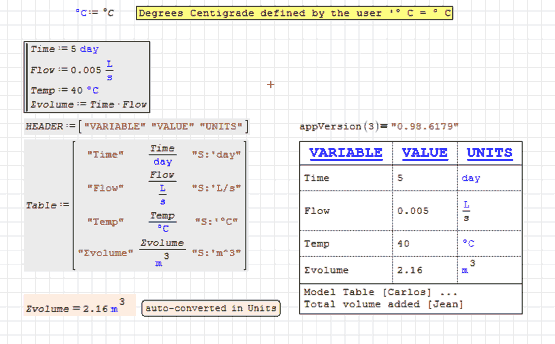

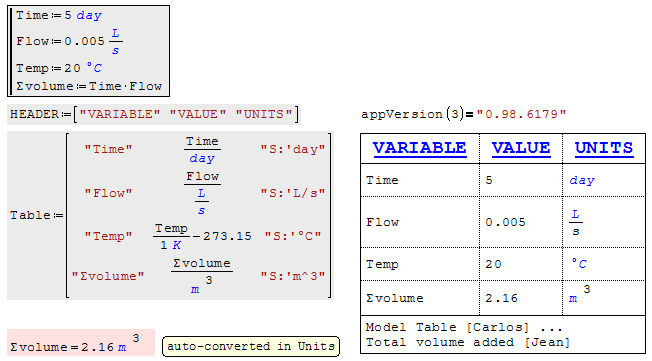

Table Region Carlos.sm (10 KiB) downloaded 64 time(s).

#17 Posted: 6/27/2018 2:31:56 PM

Wesly Centerwall

26 likes in 156 posts.

Group: User

Jean,

"S:'L/s" should be "S:'L/'s". Note the added "'" in order to show "s" as blue unit.

#18 Posted: 6/27/2018 7:47:27 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Jean,

"S:'L/s" should be "S:'L/'s". Note the added "'" in order to show "s" as blue unit.

Thanks for that one wb.c ... corrected !

Jean

#19 Posted: 6/28/2018 11:57:51 PM

CBG

77 likes in 312 posts.

Group: User

Wrote
The "unit summary" function of the table region will actually perform the unit conversions for you.
Note that this is only for direct scalar multiplier conversions. It does not work for temp units...
This way you don't have to cancel out units in the matrix going into the table. The "units summary" will do that for you.
Note that the "unit summary" is selected but NOT displayed. There is also a proof with variables.
This idea comes from user ndtma on the Table Region topic, at least that's where i saw it first, maybe someone else did it first?

Hello wb.c

I know what you say, but it has the disadvantage that you can not put a header in the table. On the other hand,
it is very easy to make a copy of the table and delete in a single stroke the left part corresponding to the Units

Hi Jean:

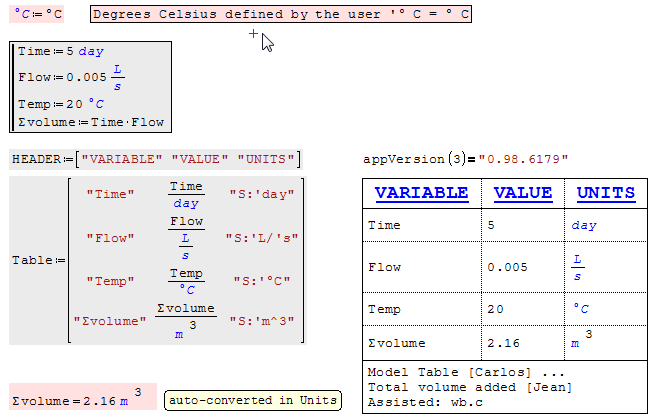

A very simple solution for the problem of the conversion of the temperature in Celsius Degrees, is that you define
your own unit of degrees Celsius.

Table Region Carlos_Jean_R1.sm (11 KiB) downloaded 63 time(s).

2 users liked this post

frapuano 6/29/2018 4:39:00 AM, NDTM Amarasekera 6/29/2018 4:46:00 AM

#20 Posted: 6/29/2018 8:32:39 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Hi Jean:

A very simple solution for the problem of the conversion of the temperature in Celsius Degrees, is that you define
your own unit of degrees Celsius.

Thanks Carlos for that one.
Thanks to all Doctors ... Nice for publishing.

Jean

Table Region Carlos.sm (12 KiB) downloaded 69 time(s).
