While loop question

#1 Posted: 4/6/2023 6:28:44 PM

0 likes in 2 posts.

Group: User

Hello everybody,

I'm really new to Smath and i am having an issue with the while loop. How can you write multiple conditions for your while loop. While a>b && b>c && c>d.

Would really appreciate some input.

#2 Posted: 4/6/2023 7:44:47 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
How can you write multiple conditions ...

If you want to piece wise plot conditional ...
if/otherwise ... as any as you want to condition.
From the directed visit Samples, iterative is bidirectional.
Or multiple conditional Golden ratio

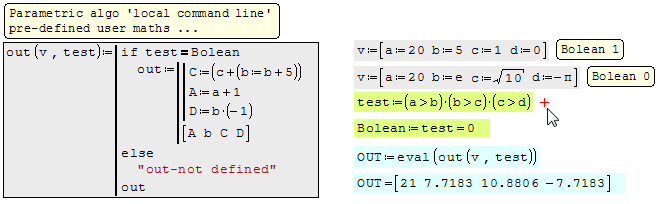

More advanced conditional is generally Bolean... Example attached.
Show something of your Creation.
Cheers ... Jean.

Critical Triplet Demo.sm (16 KiB) downloaded 32 time(s).

#3 Posted: 4/7/2023 12:10:14 AM

⚜ Kenny Lemens, P.E. ᵂᴵ

74 likes in 164 posts.

Group: User

Greetings!

Wrote
Hello everybody,

I'm really new to Smath and i am having an issue with the while loop. How can you write multiple conditions for your while loop. While a>b && b>c && c>d.

Would really appreciate some input.

In the boolean toolbar, you will notice "AND" and "OR" operators, denoted as ⋀ & ⋁ (respectively).

On that note, to specify more then (1) command under your while loop; utilize the "line(" command.

As such, you can copy and paste the following:

line(a:20,b:5,c:1,d:0,while(((a>b)&(b>c))&(c>d),line(cc+(b:b+5)),a:a+1,d:b*(-1),3,1)),stack(a,b,c,d),6,1)=#

I hope this is of Good Help;
- Kenny Lemens, P.E. ᵂᴵ

"No matter where you go, there you are." -Buckaroo BanzaiHotkeys: https://en.smath.com/forum/resource.ashx?a=45771&b=2

#4 Posted: 4/7/2023 2:28:10 AM

Razvan

0 likes in 2 posts.

Group: User

Cheers, thanks!

#5 Posted: 4/7/2023 4:12:52 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

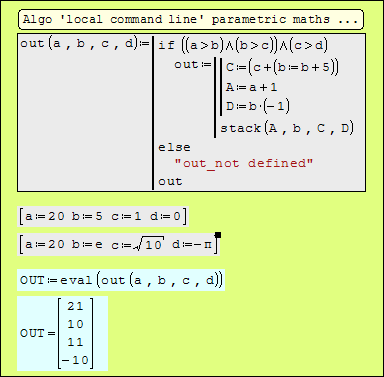

... Bolean composite style.

#6 Posted: 4/7/2023 4:33:31 PM

overlord

549 likes in 1332 posts.

Group: Moderator

There are also;

ltlt(), altle(), alelt(), a≤blele(), a≤b≤c

gtgt(), a>b>c
gtge(), a>b≥c
gegt(), a≥b>c
gege(), a≥b≥c

These functions are part of Custom Functions plugin.
Unfortunately, it supports only three arguments.
Despite that, some boolean expressions may shorten drastically.

Regards

line(a:20,b:5,c:1,d:0,while((gtgt(b,a,c))&(c>d),line(cc+(b:b+5)),a:a+1,d:b*(-1),3,1)),stack(a,b,c,d),6,1)=#

1 users liked this post

João Felipe Seráfico Melo 4/8/2023 2:45:00 PM

#7 Posted: 4/8/2023 10:17:59 AM

Davide Carpi

1415 likes in 2872 posts.

Group: Moderator

I've never thought about it, but I think that maybe I can add set of functions with unlimited arguments (>1), gt(#) ge(#) lt(#) le(#)

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

2 users liked this post

João Felipe Seráfico Melo 4/8/2023 2:45:00 PM, overlord 4/8/2023 4:19:00 PM

#8 Posted: 4/8/2023 2:08:03 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... adapt the out maths to your project.

#9 Posted: 4/8/2023 4:20:10 PM

overlord

549 likes in 1332 posts.

Group: Moderator

Wrote
maybe I can add set of functions with unlimited arguments

Would unlimited versions be mixed or same boolean expression?

#10 Posted: 4/8/2023 5:52:11 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... interesting, however very multiple-specific.

#11 Posted: 4/8/2023 9:22:45 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote

Wrote
maybe I can add set of functions with unlimited arguments

Would unlimited versions be mixed or same boolean expression?

In addition to gt(#) ge(#) lt(#) le(#), some notes about a relseq function.

relseq.sm (24 KiB) downloaded 37 time(s).

Best regards.
Alvaro.

2 users liked this post

Mark R Harris 4/9/2023 12:59:00 AM, sergio 4/10/2023 6:28:00 AM

#12 Posted: 4/11/2023 6:03:38 AM

Davide Carpi

1415 likes in 2872 posts.

Group: Moderator

Wrote
Would unlimited versions be mixed or same boolean expression?

that way, it would be same boolean

lt(a,b,c,d,e,f)=a<b<c<d<e<f=(a<b)&(b<c)&(c<d)&(d<e)&(e<f)

Wrote
In addition to gt(#) ge(#) lt(#) le(#), some notes about a relseq function.
relseq.sm (24 KiB) downloaded 37 time(s).

That's a good concept, I think that probaly it's feasible. I'll give it a try.

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

2 users liked this post

João Felipe Seráfico Melo 4/11/2023 8:34:00 AM, Alvaro Diaz Falconi 4/11/2023 10:04:00 AM

#13 Posted: 4/13/2023 2:45:33 AM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote
... I'll give it a try.

Hi Davide. Something like this other?

Best regards.
Alvaro.

#14 Posted: 4/18/2023 7:23:00 AM

Davide Carpi

1415 likes in 2872 posts.

Group: Moderator

Wrote
Hi Davide. Something like this other?

this maybe?

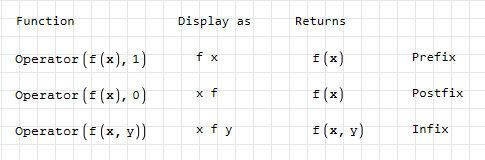

also, prefix/postfix functions can be made for unlimited arguments.

I've tried something like postfix(F,x,y) but it isn't really user-friendly (e.g. it can't be used on the LHS of an assignment because it overvrites the postfix() function itself)

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

1 users liked this post

Alvaro Diaz Falconi 4/18/2023 12:22:00 PM

#15 Posted: 4/18/2023 12:25:44 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote
... this maybe? ..

Hi Davide. Great implementation. But I'm thinking in ways to write set union a U b, intersection, function composition like f o g (x) := f(g(x)), logical binary operators like implies, iif and similar stuff.

Best regards.
Alvaro.
