Disable specific unit

#1 Posted: 4/23/2018 10:18:16 AM

4 likes in 29 posts.

Group: User

Hi, in my calculations I often use kJ/kg (and derivative) units (enthalpy, specific heat).
SMath always presents result in Gy and I have always manually to redefine it.

Is there any possibility to disable Gy unit which is useless for my tasks?
I tried to assign 'Gy := 0 to disable this unit but it does not work.

#2 Posted: 4/23/2018 10:42:17 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Is there any possibility to disable Gy unit which is useless for my tasks?

Work sheet would help.
Unitless solves all problems.
Knowing in advance the unit of result, define it user style
kJ/kg ... Smath style kJ_kg:=1
copy "kJ_kg", paste in the empty place holder of result.

#3 Posted: 4/23/2018 1:09:38 PM

Ruben Sidranski

17 likes in 463 posts.

Group: User

Wrote
Hi, in my calculations I often use kJ/kg (and derivative) units (enthalpy, specific heat).
SMath always presents result in Gy and I have always manually to redefine it.

Is there any possibility to disable Gy unit which is useless for my tasks?
I tried to assign 'Gy := 0 to disable this unit but it does not work.

When you re-defined Gy, did you use the ' infront of Gy (e.g. 'Gy? This makes it the same font/etc.
I work in IP units and need to re-define everything in the results. Part of the quirks of working in SMath

#4 Posted: 4/23/2018 2:40:46 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Is there any possibility to disable Gy unit which is useless for my tasks?
I tried to assign 'Gy := 0 to disable this unit but it does not work.

#5 Posted: 4/27/2018 7:38:08 AM

m227

4 likes in 29 posts.

Group: User

Hi, I would like to have something without need of definition new auxiliary variables. Just to disable a single unit...
Here is my sample which is automatically recalculated to unwanted Gy:

2018-04-27 12_35_35-SMath Studio - [steamprop.sm_].png

#6 Posted: 4/27/2018 8:45:21 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

btw, the default unit depends on optimization setting.

symbolic evaluation gives bare SI base units.
numeric evaluation gives some derived unit, which might or might not be appropriate for the given case.

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#7 Posted: 11/8/2018 3:44:26 AM

Ganzman

0 likes in 2 posts.

Group: User

I have to agree with m227. Can we request this as a feature as Gy is hardly applicable in most cases.

#8 Posted: 11/8/2018 8:02:36 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote
I have to agree with m227. Can we request this as a feature as Gy is hardly applicable in most cases.

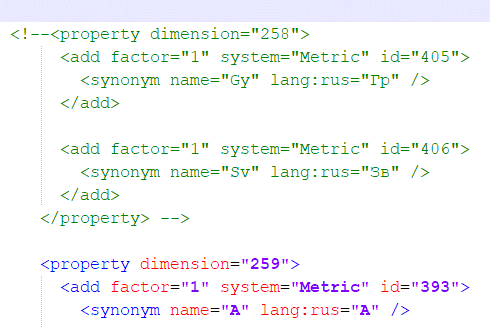

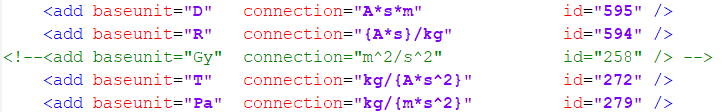

Hi. This is a workaround. Edit the file Units.xml under the SMath/entries/ folder, disabling the entries for the unit Gy:

Then you can get, for example, the enthalpy from Coolprops plugin in J/kg by default:

Best regards.
Alvaro.

1 users liked this post

frapuano 11/9/2018 6:54:00 AM

#9 Posted: 11/8/2018 8:35:48 PM

Ganzman

0 likes in 2 posts.

Group: User

Much obliged!
