Solve() function with units

#1 Posted: 1/27/2023 8:51:24 AM

0 likes in 5 posts.

Group: User

Hello,

I can't find the error. I want to solve a simple linear equation for a static problem. But with the solve() function i can't enter units.

it says not real roots.

Thanks for help

#2 Posted: 1/27/2023 11:19:01 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I can't find the error. I want to solve a simple linear equation for a static problem. But with the solve() function I can't enter units.

Generally, solve blocs aren't units compatible.
Attach the document for possible doctoring.

#3 Posted: 1/27/2023 12:11:37 PM

Thomy

0 likes in 5 posts.

Group: User

Hello

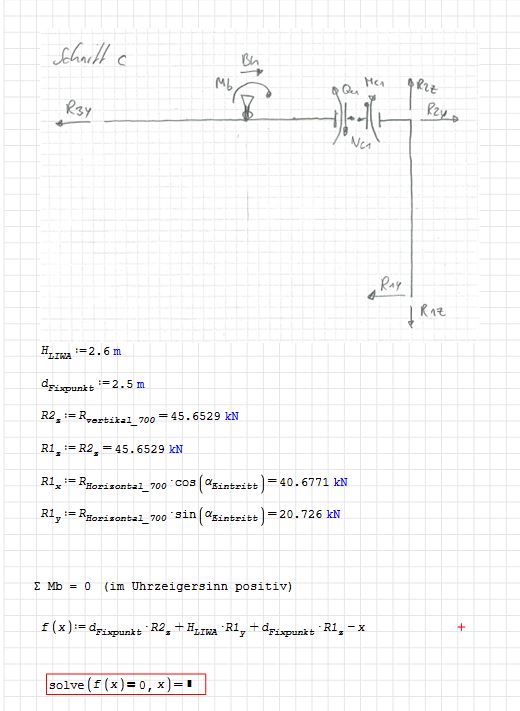

You can find the file in the attachment

#4 Posted: 1/27/2023 12:27:22 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

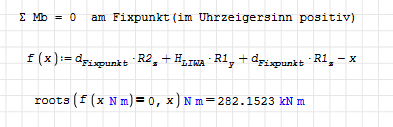

There is no "solve block" there. For the real ones there is a plugin. In any case, there is a function to find roots, which is compatible with the use of units, you just have to know how to use it and in what cases. For this function, the roots function seems more suitable instead of solve. Try with this, for example

Best regards.
Alvaro

#5 Posted: 1/27/2023 12:39:17 PM

Thomy

0 likes in 5 posts.

Group: User

Doesn't work. The File is in the attatchment.

Thanks you very much

#6 Posted: 1/27/2023 12:55:43 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote
Doesn't work. The File is in the attachment. ...

Hi. I can't find the file.

Best regards.
Alvaro.

#7 Posted: 1/27/2023 1:00:31 PM

Thomy

0 likes in 5 posts.

Group: User

Fixpunkte LIWA.sm (4 MiB) downloaded 53 time(s).

#8 Posted: 1/27/2023 1:04:41 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote
Fixpunkte LIWA.sm (4 MiB) downloaded 53 time(s).

Hi. It works in my environment. Try with F9 for update the calculation.

Best regards.
Alvaro.

#9 Posted: 1/27/2023 2:37:16 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Doesn't work. The File is in the attatchment.

NO file attached !!!

#10 Posted: 1/27/2023 7:20:52 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

In your initial post, just replace solve() by Solve(). This requires the Maxima Plugin being installed.
It is a symbolic solver, which has generic unit handling, i.e. the unit of the result is determined by the solver.

An alternative is the FindRoot function, where you have to provide an initial guess (starting point for the numeric solver) and the result is automatically assigned to the variable.

The maxima solver returns an equation variable=solution, which can be converted into an assignment by the Assign() function. More details to be found in the handbook (Google SMath Handbuch).

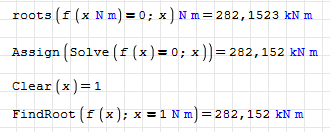

2023-01-27 23_20_25-SMath Solver - [Fixpunkte LIWA.sm_].png

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#11 Posted: 2/3/2023 12:27:57 PM

Thomy

0 likes in 5 posts.

Group: User

How can i install the MaximaPlugin. Do i have to integrate the maxima folder in the plugin subfolder from SMath?

#12 Posted: 2/3/2023 3:20:16 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

Wrote
How can i install the MaximaPlugin. Do i have to integrate the maxima folder in the plugin subfolder from SMath?

Follow the link in my signature (points to the wiki). There you find instructions.

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
