system of linear equations - How to solve system of linear equations - Messages

#1 Posted: 9/9/2022 6:55:41 AM
D D

D D

0 likes in 8 posts.

Group: User

Hello.
Dear forum users!

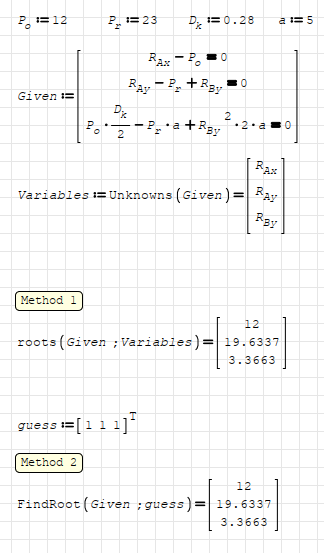

I would like to solve a system of linear equations in Smath Solver as in Mathcad. Is it possible?
https://ibb.co/WgwntqW
#2 Posted: 9/9/2022 10:21:11 AM
D D

D D

0 likes in 8 posts.

Group: User

I'm already browsing Solve Grand TREASURY. I am sending missing data in the file.
Reakcje.sm (3 KiB) downloaded 36 time(s).
#3 Posted: 9/9/2022 10:31:50 AM
overlord

overlord

552 likes in 1332 posts.

Group: Moderator

Yes, you can. But beware, there are several solvers.
For single equations, solve() is usually enough.

For systems, I try these functions as in order until a result comes;
  • roots()
  • Findroot()
  • al_nleqsolve()
  • maple solve (or maxima)

Regards


#4 Posted: 9/9/2022 11:04:55 AM
D D

D D

0 likes in 8 posts.

Group: User

Sorry, I don't know how to put the matrix at the end.
Reakcje.sm (7 KiB) downloaded 35 time(s).
https://ibb.co/ctpTZ7q
#5 Posted: 9/9/2022 12:39:32 PM
overlord

overlord

552 likes in 1332 posts.

Group: Moderator

Wrote

Sorry, I don't know how to put the matrix at the end.


It is obtained by symbolic evaluation.
Since result is only variables.


If you perform a numeric calculation and wish outcome as a number,
then you will need numerical evaluation.

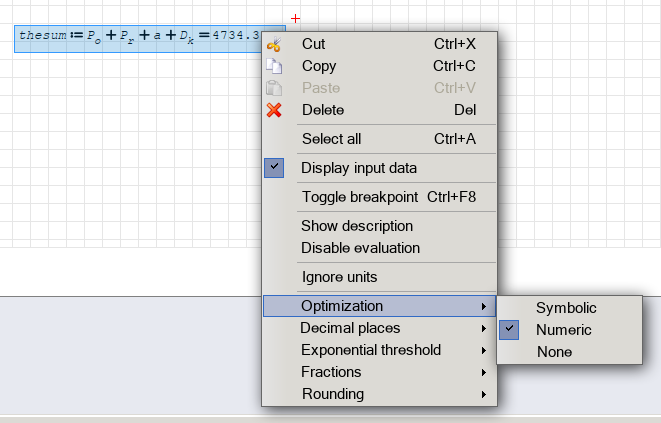

These two can be changed via 'Right click>Optimization'.
