#1 Posted: 12/13/2023 4:46:22 PM
soomoon

soomoon

1 likes in 39 posts.

Group: User

i'm studying SMath with Maxima (written by Dr. Kraska)


boxplot_description(M, option1,...)

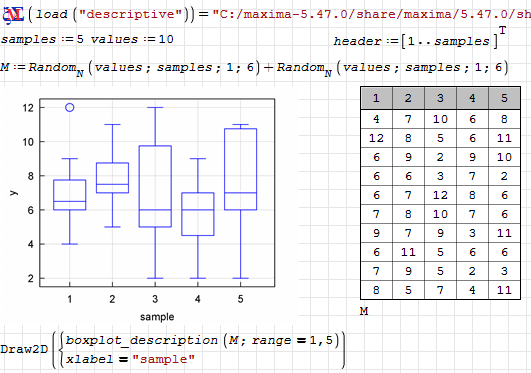

2023-12-13 17 44 37.png


but i did not get the result.

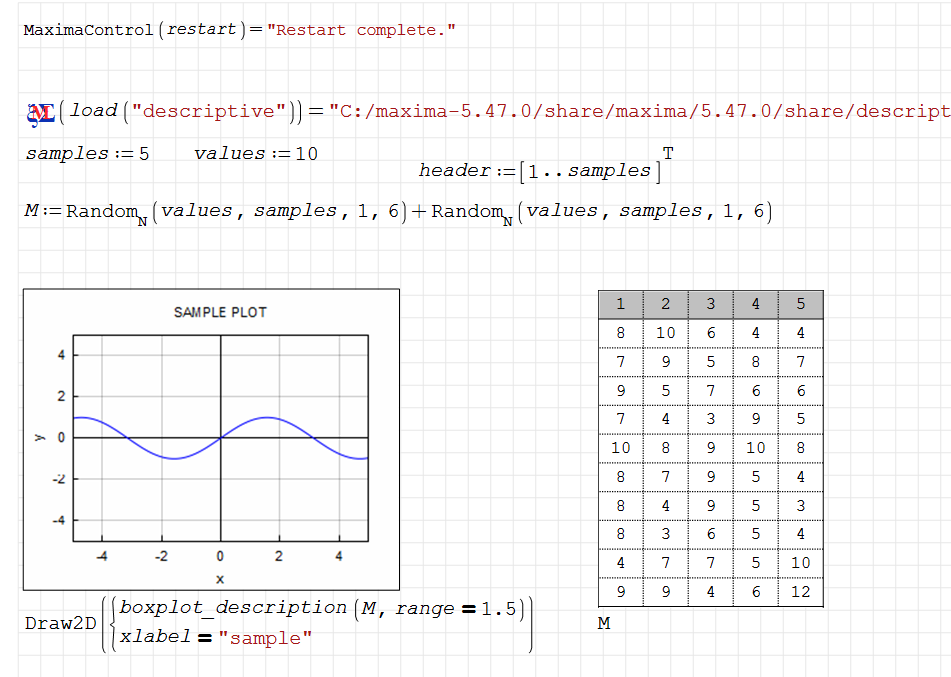

2023-12-13 17 39 52.png


boxplot_description.sm (22.99 KiB) downloaded 918 time(s).
#2 Posted: 12/13/2023 7:01:01 PM
Martin Kraska

Martin Kraska

1,332 likes in 2,240 posts.

Group: Moderator

You can either put the commands inside Draw2D() and put this in the placeholder of an image region (Insert> image) or you put the commands directly in the placeholder of a Maxima-Draw2D region. You mixed the approaches.

See the introductory text in the Chapter Plotting with Maxima.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#3 Posted: 12/15/2023 1:44:12 PM
soomoon

soomoon

1 likes in 39 posts.

Group: User

Wrote

You can either put the commands inside Draw2D() and put this in the placeholder of an image region (Insert> image) or you put the commands directly in the placeholder of a Maxima-Draw2D region. You mixed the approaches.

See the introductory text in the Chapter Plotting with Maxima.



thank you.
