Euler-spiral

#1 Posted: 11/14/2023 3:13:22 AM

Valery Ochkov

55 likes in 633 posts.

Group: User

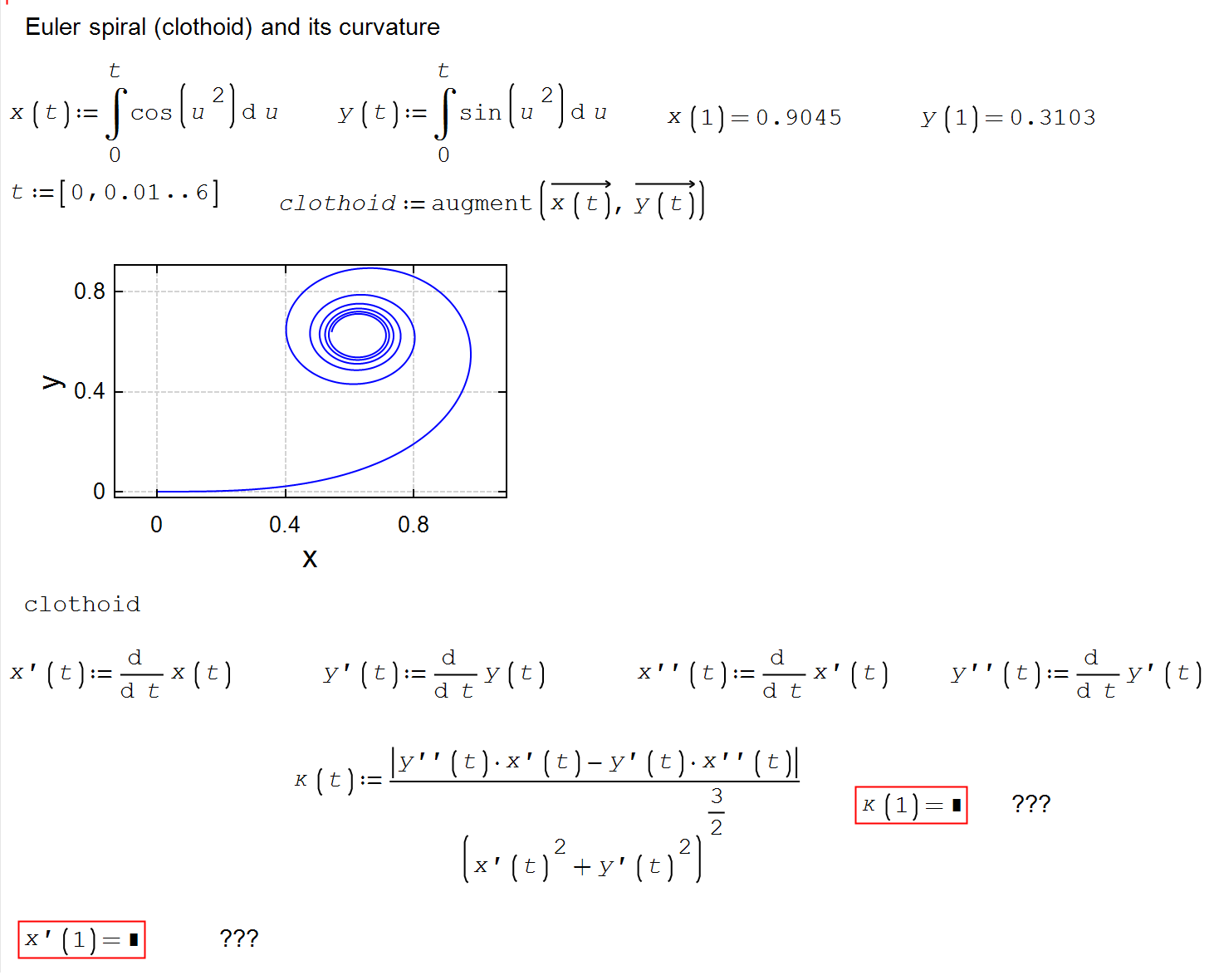

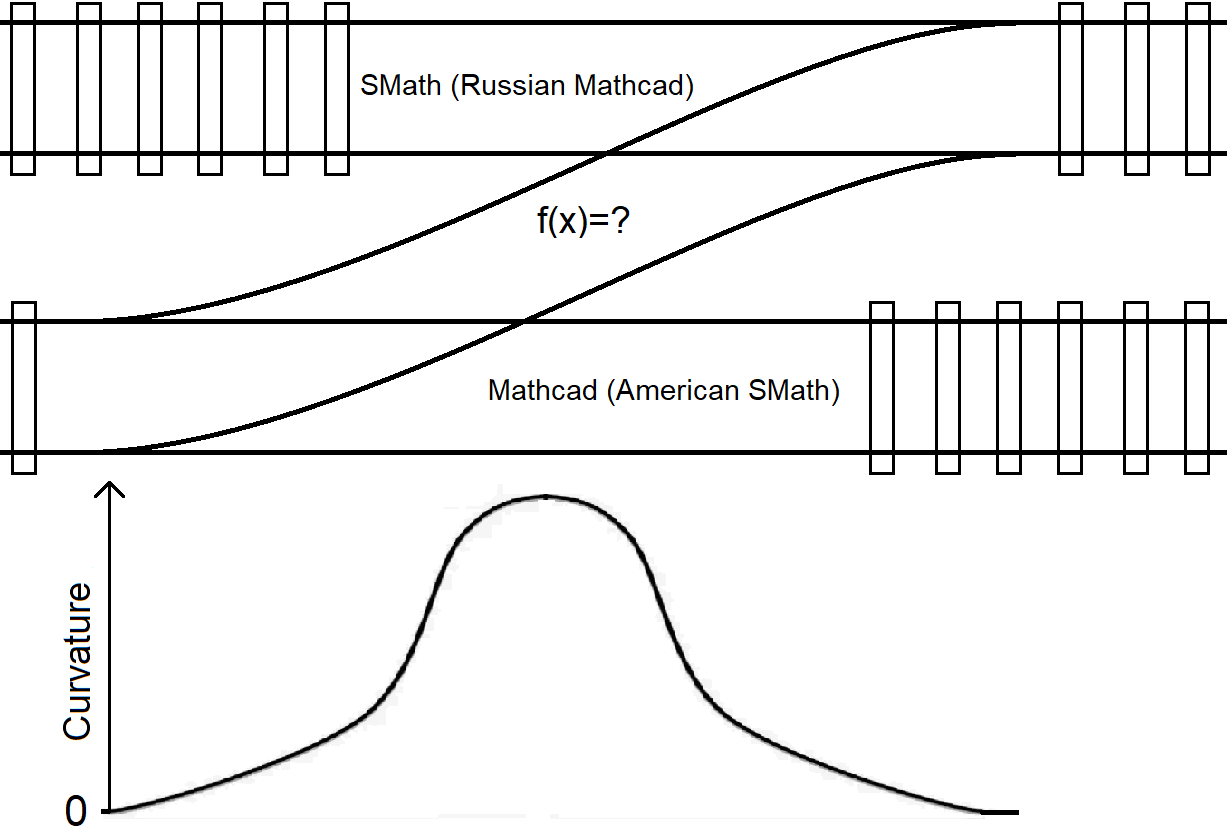

Why I can not to plot the Euler spiral curvature?
1-10-Euler-spiral.sm (175 KiB) downloaded 30 time(s).

#2 Posted: 11/14/2023 4:46:11 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

SMath native integration is a purely numerical procedure. Derivatives are symbolic ones. You would need to replace the symbolic derivatives by approximations.

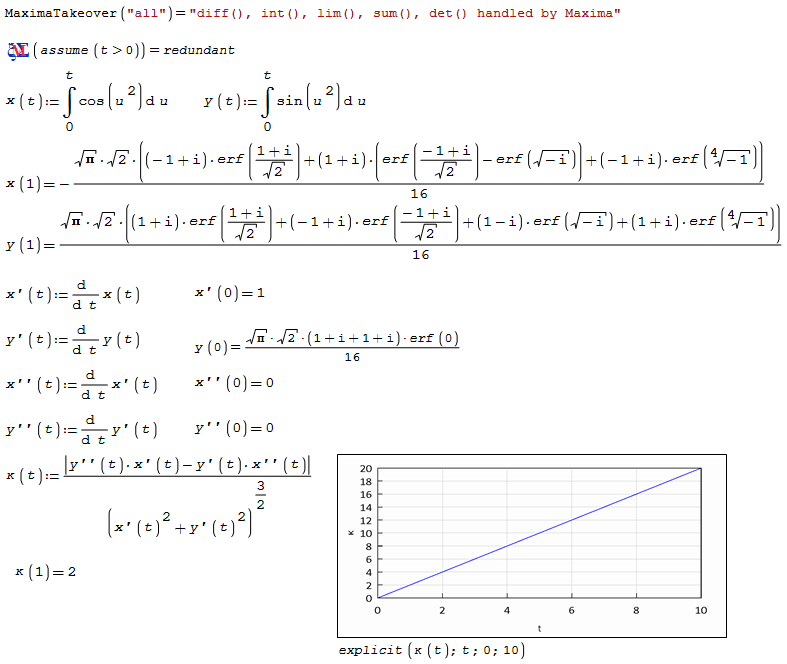

Maxima can handle the derivatives. Funny enough, Maxima can't display the integral values x(t), y(t), neither can it plot them.

But you just asked for the curvature

Euler-spiral_Maxima.sm (28 KiB) downloaded 26 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

2 users liked this post

Valery Ochkov 11/14/2023 4:50:00 AM, Oscar Campo 11/14/2023 10:13:00 AM

#3 Posted: 11/14/2023 4:53:38 AM

Valery Ochkov

55 likes in 633 posts.

Group: User

Thanks, Martin.
No solution in pure SMath?

#4 Posted: 11/14/2023 5:58:30 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

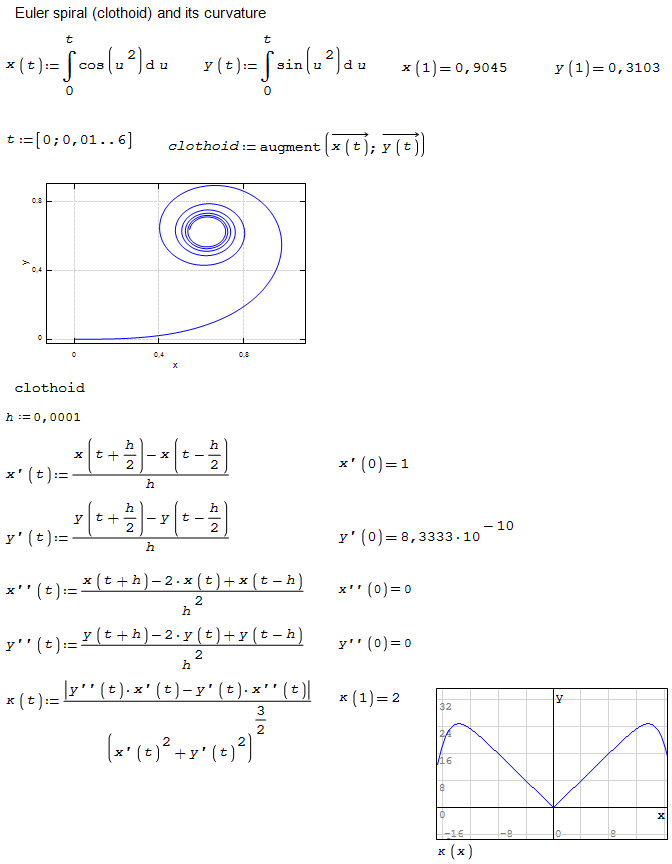

Here is a solution in pure (AKA Maxima-free) SMath.

The derivatives are replaced by difference quotients with a fixed perturbation h. Sooner or later this h is too big for a precise approximation, therefore, the value of the curvature deteriorates for large values of t.
Perhaps the fixed interval integrator also is to be blamed for the loss of precision.

Another M to patent?

Euler-spiral_Kr.sm (15 KiB) downloaded 26 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#5 Posted: 11/14/2023 6:11:13 AM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Hi. These are another two options.

1-10-Euler-spiral - option 1.sm (174 KiB) downloaded 34 time(s).
1-10-Euler-spiral - option 2.sm (176 KiB) downloaded 26 time(s).

Best regards.
Alvaro.

2 users liked this post

Oscar Campo 11/14/2023 10:15:00 AM, Valery Ochkov 11/14/2023 1:43:00 PM

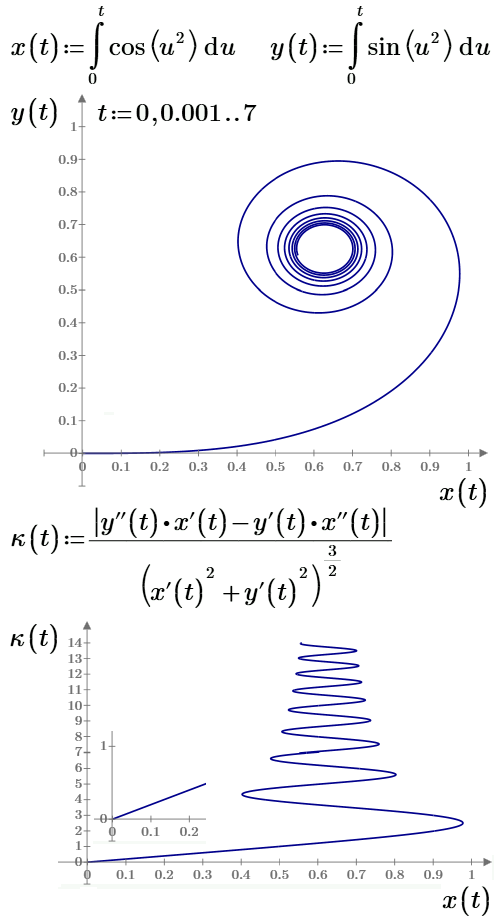

#6 Posted: 11/14/2023 1:45:22 PM

Valery Ochkov

55 likes in 633 posts.

Group: User

1 users liked this post

Oscar Campo 11/14/2023 5:47:00 PM

#7 Posted: 11/14/2023 1:52:31 PM

Valery Ochkov

55 likes in 633 posts.

Group: User

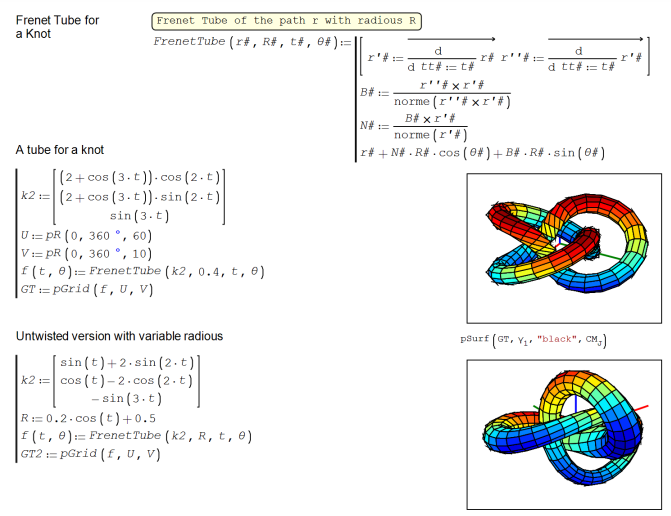

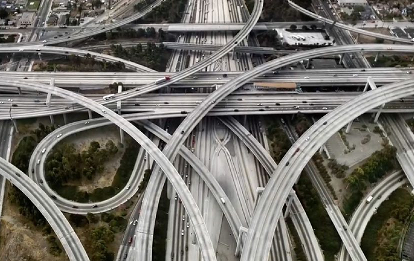

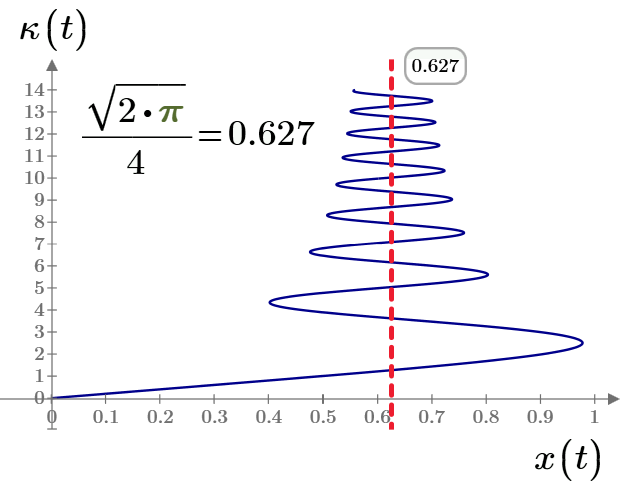

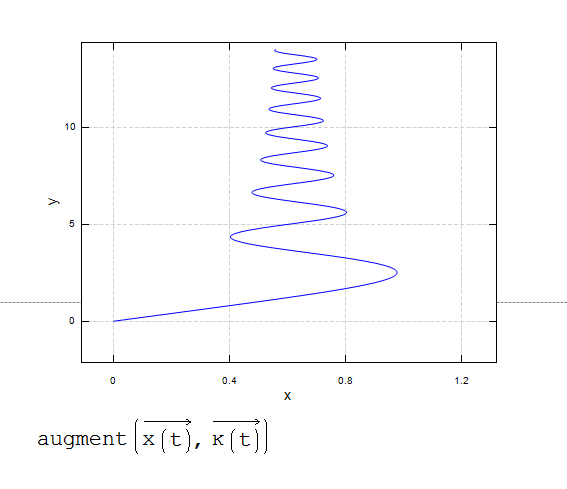

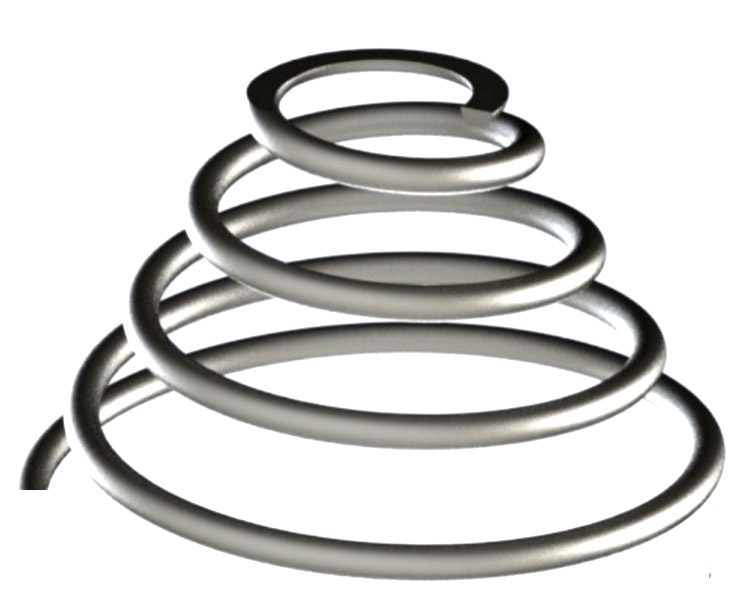

Euler spring

#8 Posted: 11/14/2023 4:44:15 PM

Valery Ochkov

55 likes in 633 posts.

Group: User

https://community.ptc.com/t5/Mathcad/Euler-spiral/m-p/912205/thread-id/209391

#9 Posted: 11/14/2023 6:05:37 PM

Oscar Campo

124 likes in 298 posts.

Group: Moderator

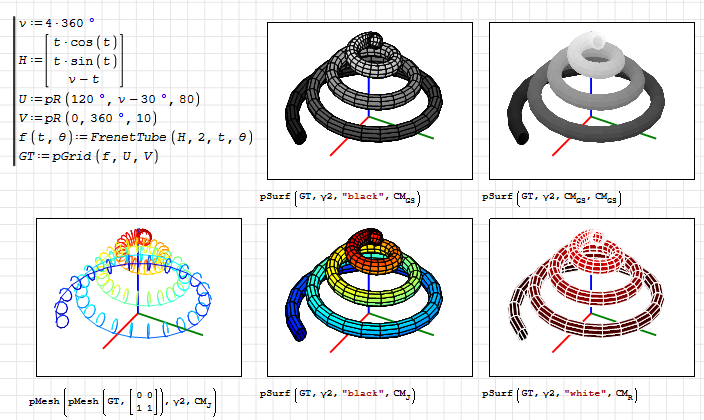

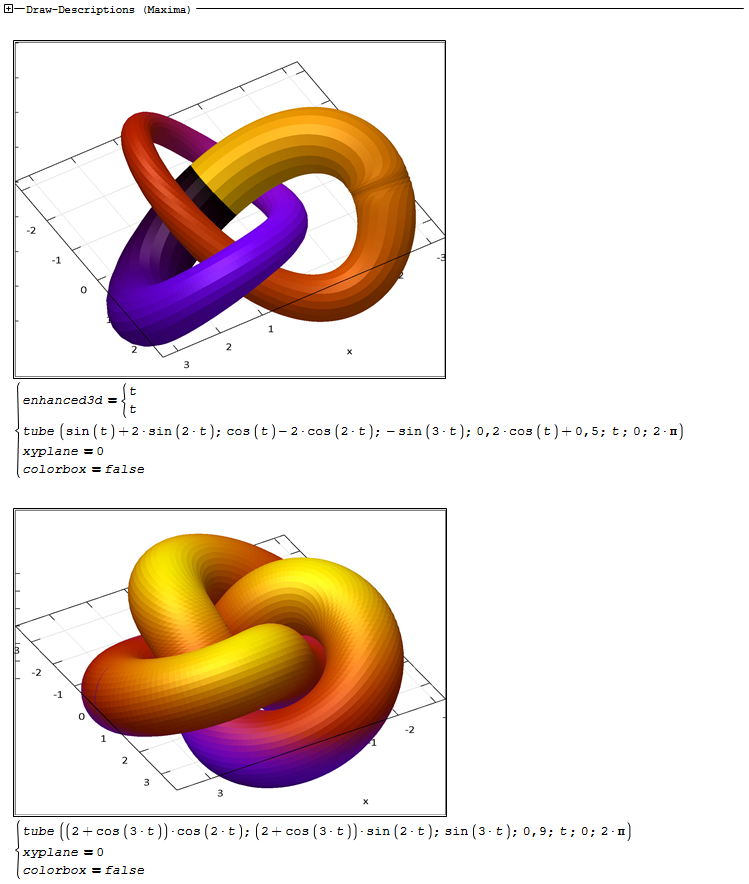

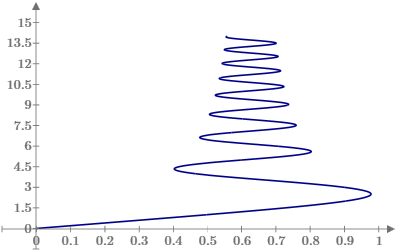

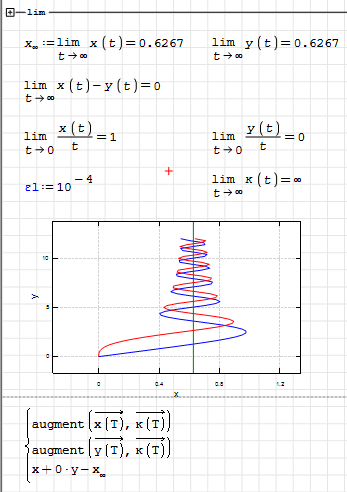

the Euler spring on SMath:

1 users liked this post

Valery Ochkov 11/14/2023 6:18:00 PM

#10 Posted: 11/14/2023 7:39:05 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Why I can not to plot the Euler spiral curvature ?

Cornu = Euler = Fresnel = Clothoid ... all same.

Maths Spirals Euler-Cornu.sm (17 KiB) downloaded 23 time(s).
Maths Spirals_ANY.sm (26 KiB) downloaded 26 time(s).

#11 Posted: 11/14/2023 8:27:47 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Cornu = Euler = Fresnel = Clothoid ... all same.

In the document ANY spiral ... set
c:= 0.30634896253
k:= -0.848622607416
r:= 0.25 ... immaterial, just to plot on same canvas.
You will have the Golden spiral considered Fibonacci.
Cheers ... Jean.

#12 Posted: 11/15/2023 9:00:51 AM

Valery Ochkov

55 likes in 633 posts.

Group: User
