Type conversion error while solving a system of ODEs - Сообщения
#1 Опубликовано: 26.01.2023 20:33:08
Thanks for creating such a helpful software, I have a problem solving the attached system of ODEs it keeps saying Type conversion error on Adams function please help.
Gyroscope.sm
Gyroscope.sm
#2 Опубликовано: 26.01.2023 21:03:21
Hi. You can't build matrices A and B that way, but you can with stack and augment. BTW, it seems that the interval where it finds the solution is the [0,1] giving overflow error for 1000 steps and the interval [0,5]
Best regards.
Alvaro.
Best regards.
Alvaro.
#3 Опубликовано: 27.01.2023 07:02:41
Oh okay,,, i didnt know that, Thank you so much
#4 Опубликовано: 27.01.2023 12:07:53
#5 Опубликовано: 27.01.2023 12:36:28
#6 Опубликовано: 27.01.2023 12:45:43
Thank you so much 🥰
#7 Опубликовано: 27.01.2023 15:08:54
#8 Опубликовано: 27.01.2023 15:24:42
How can I get these matlab solvers
#9 Опубликовано: 28.01.2023 06:45:28
How can I get these matlab solvers

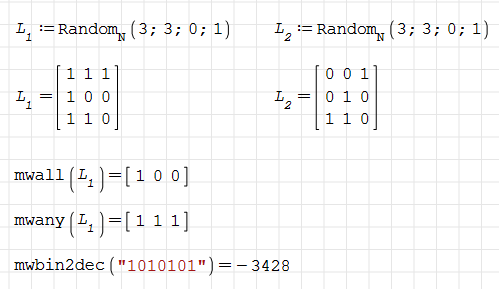

The mwode* functions are part of the plugin Matlab Runtime Library; it ask you to install when you open a worksheet that contains these functions or you can download manually from the extensions manager.
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#10 Опубликовано: 28.01.2023 06:59:40
How can I get these matlab solvers
The mwode* functions are part of the plugin Matlab Runtime Library; it ask you to install when you open a worksheet that contains these functions or you can download manually from the extensions manager.
Thank you so much
#11 Опубликовано: 28.01.2023 08:20:48
I have the plugin of Matlab runtime library and it has no ode solvers of matlab
#12 Опубликовано: 28.01.2023 10:31:32
I have the plugin of Matlab runtime library and it has no ode solvers of matlab
I have all 'mw...' from native Smath 6179.
that was installed from the option installer
rather than from plugins.
Does it suggest to re-install your version ?
#13 Опубликовано: 28.01.2023 10:37:24
I have the plugin of Matlab runtime library and it has no ode solvers of matlab
It may not work on windows 64-bit or linux/mono systems.
There is a trick for windows however.
Link to Extension Page
Regards
#14 Опубликовано: 28.01.2023 13:02:25
I have the plugin of Matlab runtime library and it has no ode solvers of matlab
It may not work on windows 64-bit or linux/mono systems.
There is a trick for windows however.
Link to Extension Page
Regards
I did everything written in that link but I still can't find those matlab functions
#15 Опубликовано: 28.01.2023 13:03:30
I have the plugin of Matlab runtime library and it has no ode solvers of matlab
I have all 'mw...' from native Smath 6179.
that was installed from the option installer
rather than from plugins.
Does it suggest to re-install your version ?
I don't understand you, can you provide further explanation
#16 Опубликовано: 28.01.2023 21:04:21
I did everything written in that link but I still can't find those matlab functions
Did you also made Solver.exe 32bit?
When uni wrote that information, SMath was not splitted to Solver and Writer.
Run these two commands as administrator.
CorFlags.exe /32bit+ Solver.exe
CorFlags.exe /32bit+ SMathStudio_Desktop.exeC:\Program Files (x86)\SMath Studio> CorFlags.exe Solver.exe
Microsoft (R) .NET Framework CorFlags Conversion Tool. Version 4.8.9037.0
Copyright (c) Microsoft Corporation. All rights reserved.
Version : v2.0.50727
CLR Header: 2.5
PE : PE32
CorFlags : 0x3
ILONLY : 1
32BITREQ : 1
32BITPREF : 0
Signed : 0I have personally tried, it does work.
#17 Опубликовано: 29.01.2023 04:45:46
I did everything written in that link but I still can't find those matlab functions
Did you also made Solver.exe 32bit?
When uni wrote that information, SMath was not splitted to Solver and Writer.
Run these two commands as administrator.And check if they are 32bit signed, output should look like this.CorFlags.exe /32bit+ Solver.exe CorFlags.exe /32bit+ SMathStudio_Desktop.exeIf method above doesn't work, use this new version of CorFlags. CorFlags.zipC:\Program Files (x86)\SMath Studio> CorFlags.exe Solver.exe Microsoft (R) .NET Framework CorFlags Conversion Tool. Version 4.8.9037.0 Copyright (c) Microsoft Corporation. All rights reserved. Version : v2.0.50727 CLR Header: 2.5 PE : PE32 CorFlags : 0x3 ILONLY : 1 32BITREQ : 1 32BITPREF : 0 Signed : 0
I have personally tried, it does work.
Yes, Thanks ^^ It finally worked. I needed to do that solver corflags
-
