#1 Опубликовано: 10.07.2014 13:38:20
As for now, do not use this plugin for productivity
Look in the attachment for details and features.
SMath Studio 0.97.5301 or later required
PLEASE REPORT HERE ANY ISSUE
EEL_functions.sm
Look in the attachment for details and features.
SMath Studio 0.97.5301 or later required
PLEASE REPORT HERE ANY ISSUE
EEL_functions.sm
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
1 пользователям понравился этот пост
Mark R Harris 08.11.2022 22:40:00
#2 Опубликовано: 10.07.2014 16:45:24
How about including unit-proof complex functions Re(), Im() and arg()? (SS-24)?
Martin Kraska
Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#3 Опубликовано: 10.07.2014 18:22:05
uploaded (big thanks to Andrey for the ultrafast bugfix
)

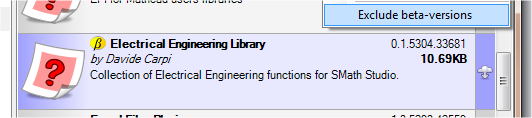

Be sure to have the "Exclude beta-versions" unchecked
Maybe in the Custom Functions as temporary patch (I prefer to have all the built-in functions unit-proofs, but I understand that this requires time)
Best regards
Davide
)Be sure to have the "Exclude beta-versions" unchecked
How about including unit-proof complex functions Re(), Im() and arg()? (SS-24)?
Maybe in the Custom Functions as temporary patch (I prefer to have all the built-in functions unit-proofs, but I understand that this requires time)
Best regards
Davide
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
2 пользователям понравился этот пост
#4 Опубликовано: 04.08.2014 16:37:49
Thank you very much.
#5 Опубликовано: 29.01.2018 14:29:06
Hi,
Can i suggest adding function to round calculated value to closest one of E-series (I'm talking about e.g. E96 series of resistors) ?
Regards
Kriss
Can i suggest adding function to round calculated value to closest one of E-series (I'm talking about e.g. E96 series of resistors) ?
Regards
Kriss
#6 Опубликовано: 11.06.2018 00:09:27
It looks like the plugin isn't working
Or I am using it incorrectly?
Or I am using it incorrectly?
#7 Опубликовано: 11.06.2018 06:16:46
Guess it is a bug. I'll check it ASAP.
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#8 Опубликовано: 12.06.2018 06:01:00
Seems that something is changed in SMath Studio, now overloads with definite and undefinite number of arguments are in a conflict state.
As workaround in the dynamic assistant I've temporary removed the overloads with a single argument; you will still be able to use them and they will be the default when you insert one of the functions of the plugin (use tha argument separator key to add more arguments).
I'll address the issue SMath side later.
PLUGIN UPDATED
As workaround in the dynamic assistant I've temporary removed the overloads with a single argument; you will still be able to use them and they will be the default when you insert one of the functions of the plugin (use tha argument separator key to add more arguments).
I'll address the issue SMath side later.
PLUGIN UPDATED
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#9 Опубликовано: 12.06.2018 12:48:43
Um I'm a newbie but when I hit recalculate in that demo page the capacitance units get messed up.
By the way, how is the || operator typed in?
Thanks!
By the way, how is the || operator typed in?
Thanks!
#10 Опубликовано: 12.06.2018 13:45:36
Um I'm a newbie but when I hit recalculate in that demo page the capacitance units get messed up.
Confirmed, another thing to investigate. You can make it working removing the output unit customization on the rightmost placeholder.
By the way, how is the || operator typed in?
Type EEL_CPar( or EEL_RPar( and add 1 or more arguments with your argument separator key.
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#11 Опубликовано: 12.06.2018 14:42:01
The || tip worked right away, thanks!
#12 Опубликовано: 14.06.2018 05:52:15
when I hit recalculate in that demo page the capacitance units get messed up.
Should be fixed now.
PLUGIN UPDATED
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#13 Опубликовано: 14.06.2018 10:44:20
Thanks!
#14 Опубликовано: 09.04.2022 20:28:12
Hi,
Can i suggest adding function to round calculated value to closest one of E-series (I'm talking about e.g. E96 series of resistors) ?
Regards
Kriss
This could be very useful. There is an interesting solution for this here (used on my HP calculator): E24 Nearest Fraction Calculation. Thanks Takayuki HOSODA
#15 Опубликовано: 10.04.2022 05:15:19
Hi. In the meantime, you can use this, but I didn't check it much so it may have some wrong values in the geometric series.
ESeries.sm
Best regards.
Alvaro.
ESeries.sm
Best regards.
Alvaro.
1 пользователям понравился этот пост
Mark R Harris 14.04.2022 17:46:00
-
