Formula transformation - Сообщения
#1 Опубликовано: 13.11.2019 19:37:18

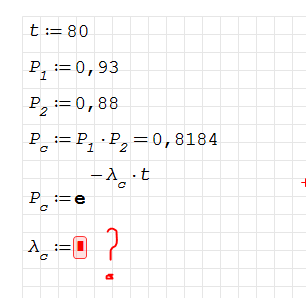

Good day. How to find a formula to determine automatically? Also how do you replace values and combine all formulas into one automatically?
#2 Опубликовано: 13.11.2019 22:02:46

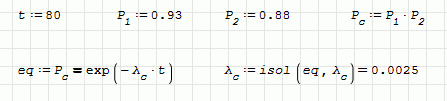

How to find a formula to determine automatically?
You mean: solve for λ
#3 Опубликовано: 14.11.2019 04:22:42
4 пользователям понравился этот пост
Вуаутвук 14.11.2019 12:30:00, sergio 14.11.2019 05:59:00, Radovan Omorjan 14.11.2019 06:12:00, frapuano 15.11.2019 07:38:00
#4 Опубликовано: 14.11.2019 11:30:16

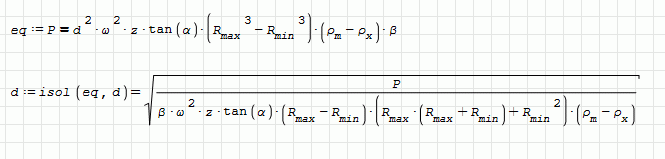

Hi. Try this too. Needs a "Nightly builds":
.

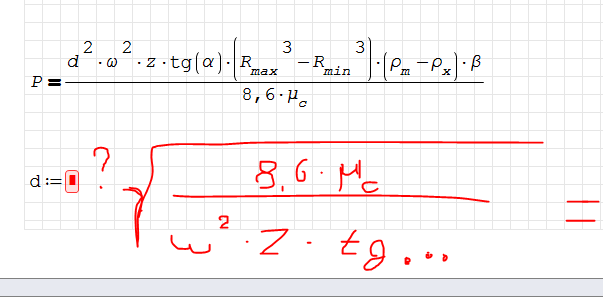

I meant. Is it possible to automatically convert a formula to find a value from it? Type as in the example in the picture
isol2.sm
Best regards.
Alvaro.
#5 Опубликовано: 14.11.2019 11:35:42
1 пользователям понравился этот пост
Вуаутвук 14.11.2019 13:25:00

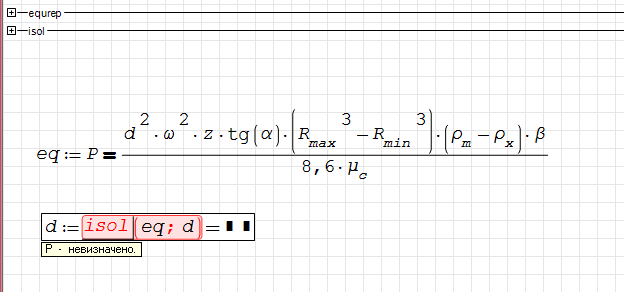

#6 Опубликовано: 14.11.2019 12:14:57
Sorry, maybe I didn't understand something?
#7 Опубликовано: 14.11.2019 12:21:03
Sorry, maybe I didn't understand something?
Hi Вуаутвук. Do you have the "Nightly builds"? (Download it at the link). I use a very recent new behavior, not pressent in the stable beta versions).
Best regards.
Alvaro.
#8 Опубликовано: 14.11.2019 12:39:22
Sorry, maybe I didn't understand something?

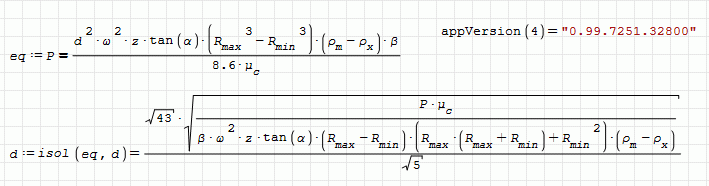

I have the latest version.
Best regards.
Alvaro.
#9 Опубликовано: 14.11.2019 12:58:49
I have the latest version.

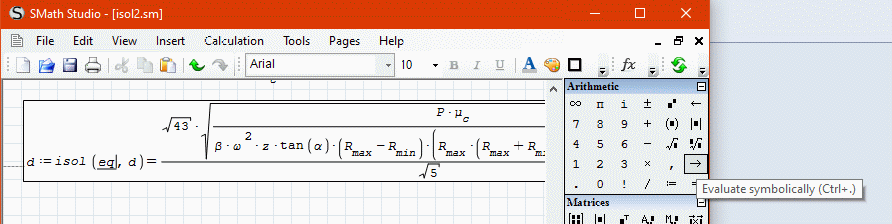

Ok. Do you evaluate symbolically d?
Best regards.
Alvaro.
1 пользователям понравился этот пост
Вуаутвук 14.11.2019 13:25:00
#10 Опубликовано: 14.11.2019 13:05:37
I have the latest version.
I want to convert the formula from P = to formula D =. In symbolic form.
#11 Опубликовано: 14.11.2019 13:11:32
I have the latest version.
I'm understood, thank you.
#12 Опубликовано: 14.11.2019 16:11:30
1 пользователям понравился этот пост
Вуаутвук 22.11.2019 11:24:00
#13 Опубликовано: 14.11.2019 16:24:45

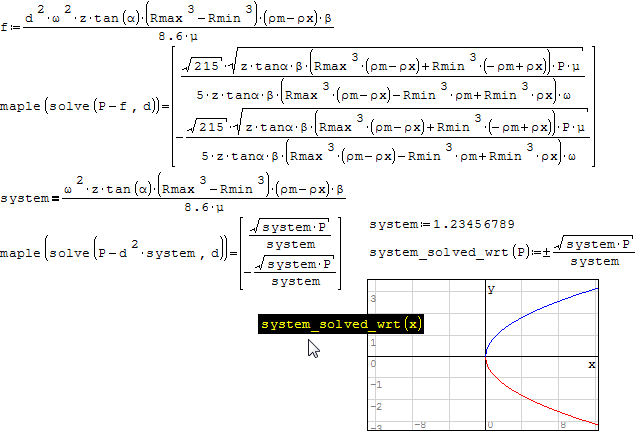

... complete/publish
1 пользователям понравился этот пост
Вуаутвук 22.11.2019 11:24:00
#14 Опубликовано: 22.11.2019 11:29:17
I didn't quite understand what it was, but thank you.
#15 Опубликовано: 22.11.2019 13:02:25
I didn't quite understand what it was, but thank you.

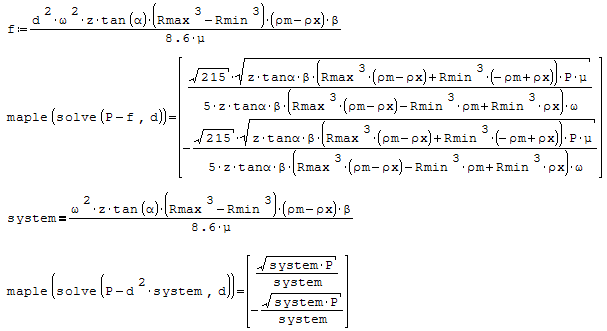

Read like this:
1. 'f' is an expression, i.e: a formula
2. it depends upon 10 parameters from blue sky
3. you wanted its result be 'P' call it "unk" [unknown]
4. if you can measure then assign 9 parameters,
there is one left not measured then "unk'
5. you said you wanted to solve for 'd',
given all 9 other parameters and the result "unk"
solving for 'd' is the maple implicit solve block
maple(solve(unk-f,d)) ... evaluate symbolic.
6. symbolic expresses 'd' wrt all 9 given parameters
and the demanded "unk"
implicit unk-f means unk-f=0
1 пользователям понравился этот пост
Вуаутвук 09.12.2019 09:32:00
#16 Опубликовано: 22.11.2019 15:07:31

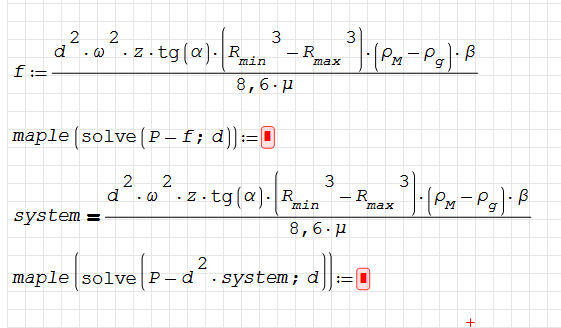

I can not do it
#17 Опубликовано: 22.11.2019 15:15:49
I can not do it
Please: attach the Smath document.
Once patients are doctored => recycled !
1 пользователям понравился этот пост
Вуаутвук 09.12.2019 09:32:00
#18 Опубликовано: 22.11.2019 15:50:36
#19 Опубликовано: 22.11.2019 17:39:03
... suite
Here is doctored in pink [2 regions].
Your original SS 7251 opened/doctored in my SS 6179
returned SS 6179. If you don't see the graph, please let me know.
In that case, I will make a snippet.
003.sm
Here is doctored in pink [2 regions].
Your original SS 7251 opened/doctored in my SS 6179
returned SS 6179. If you don't see the graph, please let me know.
In that case, I will make a snippet.
003.sm
1 пользователям понравился этот пост
Вуаутвук 09.12.2019 09:32:00
#20 Опубликовано: 22.11.2019 23:09:41
Hi Вуаутвук. Some notes:
- Use units. For instance, alpha=45 isn't usual, but alpha=45*deg is.
- R.max^3-R.min^3 is more usual than R.min^3-R.max^3.
- You can't solve P with the same equation from "f".
- Empirical coeffs usually carry some units.
I don't know very well the process that you're describing, but guess that this is a good aprox to the correct solution.
003.sm
Best regards.
Alvaro.
- Use units. For instance, alpha=45 isn't usual, but alpha=45*deg is.
- R.max^3-R.min^3 is more usual than R.min^3-R.max^3.
- You can't solve P with the same equation from "f".
- Empirical coeffs usually carry some units.
I don't know very well the process that you're describing, but guess that this is a good aprox to the correct solution.
003.sm
Best regards.
Alvaro.
1 пользователям понравился этот пост
Вуаутвук 09.12.2019 09:32:00
-
