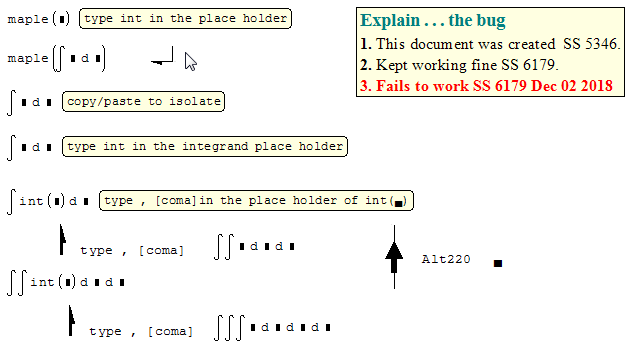

Can't explain to myself why maple(int) failed and exactly when/by what ?
If you have such failure: the attached *.sm may rescue your project(s).

Integral 0maple suite [Multiple] Copy.sm (9 КиБ) скачан 82 раз(а).

Jean, I can't understand what exactly the problem.

Wrote

Jean, I can't understand what exactly the problem.

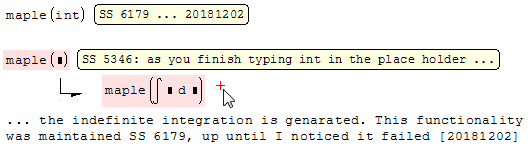

Like this Viacheslav ... try typing maple(int).
If you don't get the indefinite integral symbol: maple is corrupted.
That it does not work SS 6179 anymore in my system is pity for me.
No problem as I can rescue from backup document.

Successful lunch for my friend Astronaut, He is a good man speaking Russian too !

I can't help here, because this behavior does not apply to my plugin. This is the behavior of the program. If something is wrong with the function and its parameters in the calculation, then it can be detected using the log file, which is located in the folder with the plugin.

Wrote

I can't help here, because this behavior does not apply to my plugin.

Maybe some Collabs will catch and test with their latest version ?

Thanks Kamarad.

I cannot reproduce the autocomplete of int in any SS version, neither changing the date on the machine, and I'm not aware that there ever were such behavior...
however, I don't think it is a desiderable feature; how would you access or create any int~ variable/function if the program triggers the autocomplete while you are typing? (and imagine this extended to any function...)

Wrote

I cannot reproduce the autocomplete of int in any SS version, neither changing the date on the machine, and I'm not aware that there ever were such behavior...
however, I don't think it is a desirable feature; how would you access or create any int~ variable/function if the program triggers the autocomplete while you are typing? (and imagine this extended to any function...)

I discovered that Maple indefinite multiple integrals SS 5346.
It was maintained SS 6179 up until noticed it failed [not supported anymore].

Please try the attached if it complains.

Jean

Integrate Double Test.sm (33 КиБ) скачан 58 раз(а).

Wrote

I discovered that Maple indefinite multiple integrals SS 5346.

Most important about indefinite integral, I forgot to mention:
SS 5346 f(x) menu had the two integrals:
Int(2) [indefinite], Int(4) [palette definite].
Thus the maple(Int(2)) was then OK.
Int(4) was the integrator from the palette.
SS 6179 f(x) menu has only int palette integrator.
So, if your latest 6884 has only int you are zap twice:
1. you are zap from Smath 6884 indefinite integral.
2. you are zap from maple(int,) because it is dead.

For reference, even if it int(2) is hidden can be always created by typing int(, or int(; depending on what is your argument separator.

functions like int(2) or lim(3) are not available in the functions' list because at the moment are "dead symbols" without third party plugins like maple or maxima.

BTW it is possible for developpers to add additional toolboxes, thus a plugin like maxima (for example), might expose them.

Wrote

BTW it is possible for developpers to add additional toolboxes, thus a plugin like maxima (for example), might expose them.

I assume you have in mind side bar palettes.

Sounds like an interesting option. Is there some template where I can see how to do that?
How about toolbar buttons and settings tabs?

... like this SS 6179

Wrote

I assume you have in mind side bar palettes.
Sounds like an interesting option. Is there some template where I can see how to do that?

You can use this as reference.
There are some known issues in certain cases (missing buttons) but you can fix them using the Size attribute and playing with how the buttons are sorted.

Wrote

How about toolbar buttons and settings tabs?

I've played a lot with toolbars, it's very nice what would be possible to do with them. Unfortunately although the interaction within an interface was a successful challenge, the main problem was that the toolstrips (each palette you can create/show/move in the toolbar) are hard to handle when the window is resized, resulting often in messed up layouts of the program window. This is even worse under mono, where toolstrips cannot be dragged around by the user. I guess that a solution might be to build some sort of ribbon menu, where items under the same category can be placed one next to the other an the whole group can be scrolled if the length exceed the window width, but this is just an idea and requires many efforts, especially to keep it compatible with older machines.

If for settings tabs you mean something like properties palette of autocad, it is something that I'm thinking about since a while, I guess they would be applicable on any platform if designed correctly.

Wrote

If for settings tabs you mean something like properties palette of autocad, it is something that I'm thinking about since a while, I guess they would be applicable on any platform if designed correctly.

Don't know Autocad. Just the tools> settings dialog, which already has two tabs. A third tab would be a good place for maxima settings (e.g. path to Maxima, default graph sizes, custom translations, etc.), better than under Insert> Maxima.

Alternatively, a settings button/dialog in the plugin manager would be useful (for any plugin, which offers settings).
Under Tools> settings, a separate tab could contain similar buttons for all plugins which actually offer settings.
