Double Integral

Double Integral - Сообщения

#1 Опубликовано: 27.08.2025 07:23:18
Ela Ayca Kocoglu

Ela Ayca Kocoglu

0 сообщений из 1 понравились пользователям.

Группа: User

hello everyone!! I wanted to ask how can I write these double ıntegrals in Smath ??

u(x,y):U1*sin({3*π}/2*x-{3*π}/4)*sin({3*π}/2*y-{3*π}/4)

U1 is one and I already identified above.

int(int(diff(u(x,y),x)*diff(u(x,y),x),y,0,b),x,0,a)

a and b is also defined above.

I couldn't do a double integral with only two variables.

thank you
#2 Опубликовано: 27.08.2025 09:33:08
Martin Kraska

Martin Kraska

1 277 сообщений из 2 201 понравились пользователям.

Группа: Moderator

The Simpson rule in SMath doesn't handle double integrals even if the variable is the same.

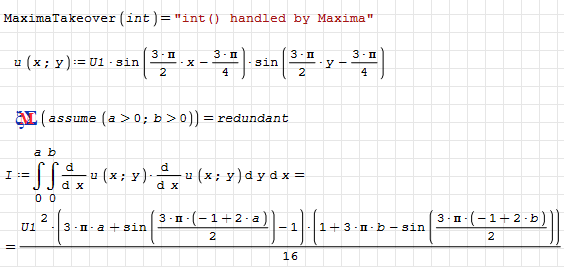

You can use some CAS interface like Maxima.

If you want a numeric solution, in your case you could use Gauss quadrature, which is easy as you have a rectangular region.


Martin KraskaPre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
3 пользователям понравился этот пост
ioan92 27.08.2025 09:44:53, sergio 27.08.2025 13:27:03, francesco rapuano 28.08.2025 05:52:36
