Hi,

Is it possible to invert any axis direction for a 2D plot / X-Y plot?

For example I would like the positive value of y axis to go towards the bottom and the negative value to be in the top half of the plot.

Yes, it is.
Just set the Minimum value greater than the Maximum value.

The only thing that looks not correctly is the grid, which is in this case shifted compared to the markers.

Wrote

Yes, it is.
Just set the Minimum value greater than the Maximum value.

Thanks! I imagine this would only work for X-Y plot since I'm unable to find any option for the 2D plot (@).

Цитата

The only thing that looks not correctly is the grid, which is in this case shifted compared to the markers.

I don't understand this: I made a quick test and grids looks fine in X-Y plot

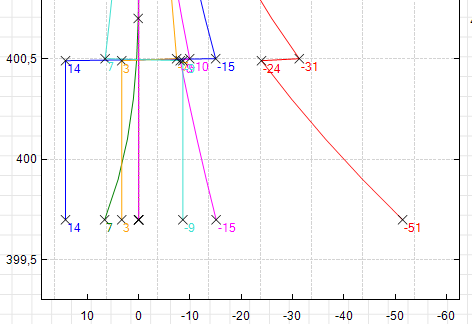

Here's an example:

Wrote

The only thing that looks not correctly is the grid, which is in this case shifted compared to the markers.

Fixed.

Wrote

Wrote

The only thing that looks not correctly is the grid, which is in this case shifted compared to the markers.

Fixed.

wonderful!
