Combine Vector and Matrix.sm (5 КиБ) скачан 32 раз(а).

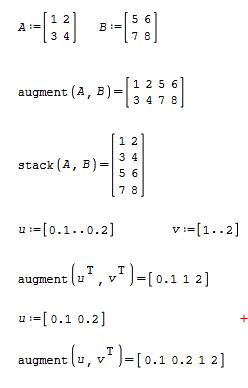

Hi. You can use augment and stack.



Combine Vector and Matrix.sm (9 КиБ) скачан 43 раз(а).

Best regards.
Alvaro.

Wrote

Hi. You can use augment and stack.



Combine Vector and Matrix.sm (9 КиБ) скачан 43 раз(а).

Best regards.
Alvaro.

Thank you.

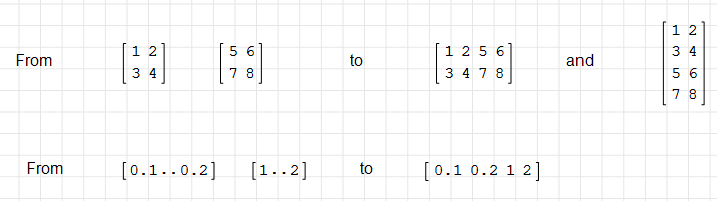

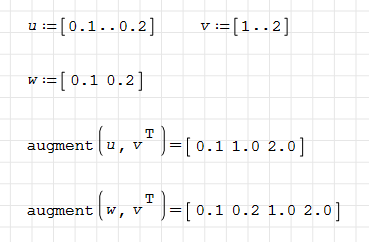

It looks to me that in order to combine 2 lists, the 1st list must be in "list" format (u=[0.1 0.2]) instead of "range" format (u=[0.1..0.2]).

Is there other method to combine list if the the 1st list is in "range" format?



Combine Vector and Matrix.sm (7 КиБ) скачан 27 раз(а).

Some project will produce immensely long nests of solutions.
In such instances, use UnestV(data), UnestH(data) utilities.

Wrote

... It looks to me that in order to combine 2 lists, the 1st list must be in "list" format (u=[0.1 0.2]) instead of "range" format (u=[0.1..0.2]).

Is there other method to combine list if the 1st list is in "range" format?

Mathcad did have 'matrix' objects and 'range' objects, which were different. But in SMath the function range(#,#) or range(#,#,#) are matrix constructors and do not represent anything other than an matrices. There are no 'vectors' either, since they are simply matrices with a single column and one or more rows.

Best regards.
Alvaro

Wrote

Is there other method to combine list if the the 1st list is in "range" format ?

You can combine both directions.
They don't need be equally meshed.

Image Gaussian Spot.sm (30 КиБ) скачан 27 раз(а).

Wrote

Wrote

Is there other method to combine list if the the 1st list is in "range" format ?

You can combine both directions.
They don't need be equally meshed.

Image Gaussian Spot.sm (30 КиБ) скачан 27 раз(а).

Hi Jean

Thank you for the example, but it's litle bit overwhelming for me.
Do you happen to have a simpler example?

Wrote

Thank you for the example, but it's little bit overwhelming for me.
Do you happen to have a simpler example
?

The 2D code is unique. You can have it algo style otherwise:
Sym(phi(x,y),L,H,n) for local command line.
Set ... Planet:=[0.25*Cir spot spot]
so to see the red circle visible on the image.
Cheers ... Jean.

Image Spot Satellites Copy.sm (121 КиБ) скачан 29 раз(а).

Wrote

The 2D code is unique. You can have it algo style otherwise:

Delicious Patch Work ... fully command line.

Pattern Patch Work.sm (11 КиБ) скачан 37 раз(а).

Wrote

Is there other method to combine list if the the 1st list is in "range" format?

Your u range is not 0.1 and 0.2.
It is only 0.1, because range(2) increment is 1.
So in order to make it 0.1,0.2 you should use range(3).

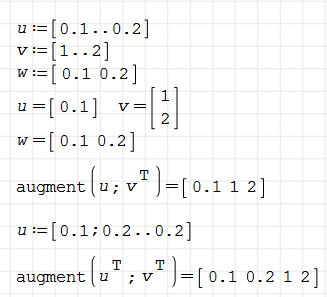

Here is two range objects augmented.

Regards
