range calculation "Cannot calculate" error - Сообщения
#1 Опубликовано: 26.10.2018 03:26:10
Hi All,

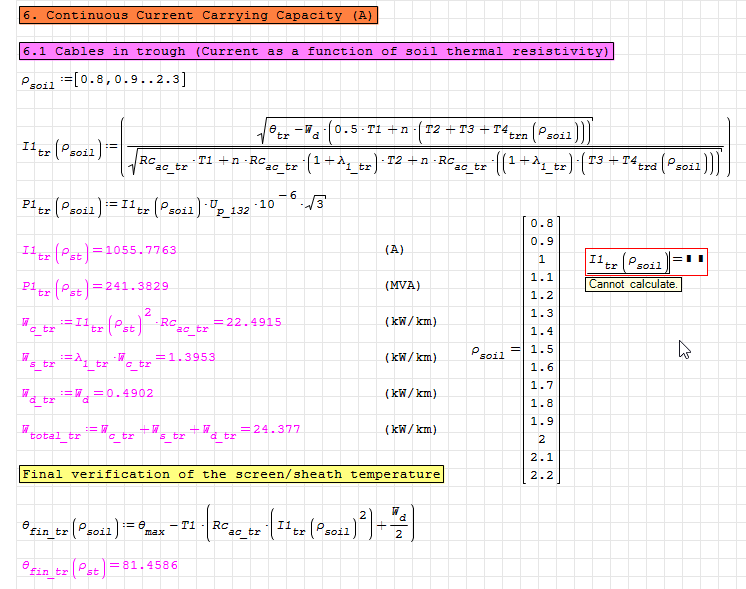

I have created an equation and with range function. as picture attached :
![2018-10-26 11_40_59-SMath Studio - [Power Cable Ampacity Calculations IEC 60287&Cigre B1-03.sm_].png](/ru-RU/files/Download/GKWsKN/2018-10-26-11_40_59-SMath-Studio---[Power-Cable-Ampacity-Calculations-IEC-60287&Cigre-B1-03.sm_].png)
on function of (psoil), i have an error notification that cannot calculate.

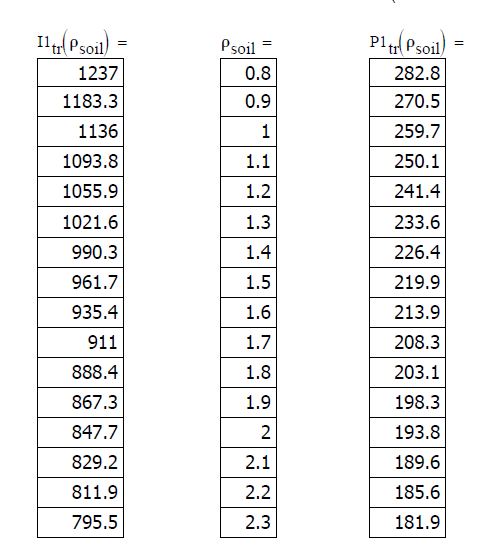

but if using matcad, i have result as :
please advise how to get the result same as mathcad ?
thanks in advance
best regards
aditia
I have created an equation and with range function. as picture attached :
on function of (psoil), i have an error notification that cannot calculate.
but if using matcad, i have result as :
please advise how to get the result same as mathcad ?
thanks in advance
best regards
aditia
#2 Опубликовано: 26.10.2018 03:30:44
Hi aditia. Without the worksheet can't be sure, but guess that you can try to vectorize the evaluation: in the same cursor position in the picture, press the vectorize button from the matrix palette.
Best regards.
Alvaro.
Best regards.
Alvaro.
#3 Опубликовано: 26.10.2018 06:21:06
Hi Alvaro,

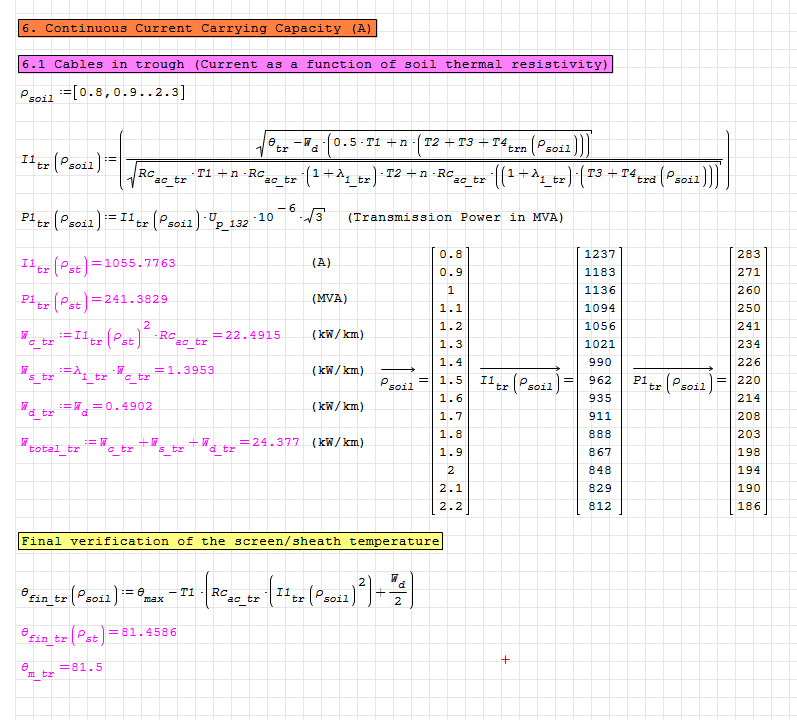

i try to vectorize as per your suggestion, and the result it work. thankyou a lot for your solution.
i try to vectorize as per your suggestion, and the result it work. thankyou a lot for your solution.
#4 Опубликовано: 26.10.2018 12:14:47
I have created an equation and with range function.
that fails to calculate
As it looks: quite simple if all components in the main equation are defined
vectorize the result because you have 'soil' in vector format.
Vectorize operator from the palette.
Cheers ... Jean
-
