ZedGraph Plug-in error

#1 Опубликовано: 06.01.2018 10:04:31

130 сообщений из 352 понравились пользователям.

Группа: User

Thank you Andrey for the latest SS: appVersion(4)="0.98.6580.5367" dated 06/01/2018.
Now I am unable to run all my SS files that use ZedGraph plug-in, and one such file is attached please.

Hydro Power Estimation-Wilson Ex 6.11.sm (207 КиБ) скачан 38 раз(а).

Файл не найден. Файл не найден.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#2 Опубликовано: 06.01.2018 11:10:38

Andrey Ivashov

2269 сообщений из 3730 понравились пользователям.

Группа: Super Administrator

Hello.

I've figured out what is an issue. It is because of the plug-in. We have two options here:
1) Fix the plug-in;
2) Open SMathStudio_Desktop.exe.config file with notepad (it is located into installation directory of SMath Studio) and edit it (you may need Admin rights) to make line with "v2.0.50727" before the line with "v4.0" as shown below:

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
  <startup useLegacyV2RuntimeActivationPolicy="true">
    <supportedRuntime version="v2.0.50727"/>
    <supportedRuntime version="v4.0"/>
  </startup>
</configuration>

Best regards.

#3 Опубликовано: 06.01.2018 13:39:48

NDTM Amarasekera

130 сообщений из 352 понравились пользователям.

Группа: User

Thanks Andrey! With your Option 2, it works now with most of the problematic files, except the one which was attached.
I have to check it.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#4 Опубликовано: 07.01.2018 00:40:09

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

It works here 6179. There it seems it does not like units in cinterp

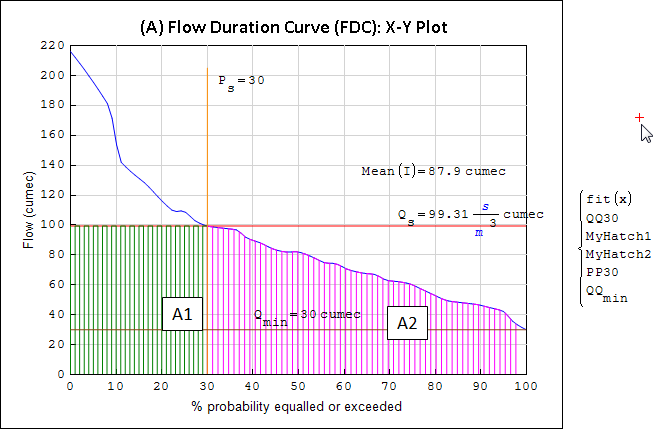

Your hatch seems damaged as well ... so sorry for the mess I did.

Jean

Hydro Power Estimation-Wilson Ex 6.11 fix.sm (229 КиБ) скачан 36 раз(а).

#5 Опубликовано: 07.01.2018 07:12:09

NDTM Amarasekera

130 сообщений из 352 понравились пользователям.

Группа: User

Wrote
It works here 6179. There it seems it does not like units in cinterp
Your hatch seems damaged as well ... so sorry for the mess I did.

You are correct. My file was damaged, but I don't know why.
Thank you.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#6 Опубликовано: 07.01.2018 11:53:52

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

Wrote
You are correct. My file was damaged, but I don't know why.
Thank you.

This happens, it did as well with Mathcad, was never explained.
Most curiously, it may happen after re-opening next day for a new session,
but from observation, it may happen several days. Does it have to do with
the Win update ? Ask Watson.

Once you have created the data set, indirectly it creates noise, because
it comes from collected data. For best result, integrate the data set
from finite differences, not from any interpolated reconstruction.
The finite differences integrator is the most powerful data smoother.
Trust me, I have tested from pure functions, made noisy.
As a result of the noisy data set, you can apply smoothing from ksmooth.
Doing so, you can reconstruct a derivative that makes sense.
That's what I did in the attached.

Jean

Hydro Power Estimation-Wilson Ex 6.11 Data.sm (41 КиБ) скачан 38 раз(а).
