Hello everyone,

I've been trying to implement the toolbox feature for the maxima plugin that I am currently working on. The example that I am following is from Davide Carpi

https://smath.info:8443/!/#public/view/head/plugins/CustomFunctions/Toolbox.cs

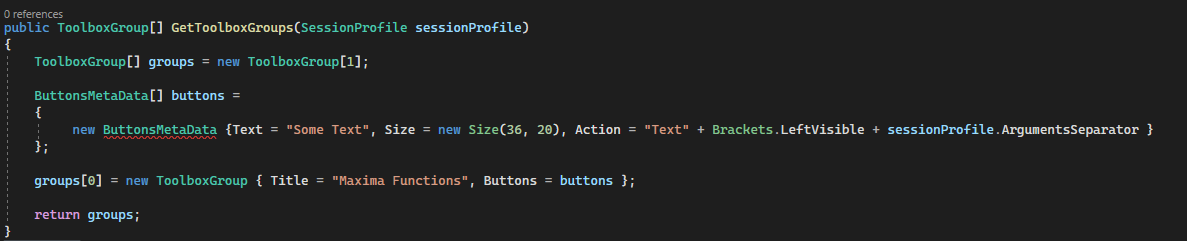

When implementing ButtonsMetaData[] part, it shows me an error "ButtonsMetaData.ButtonsMetaData()" is inaccessible due to its protection level. Any idea on what did I do wrong or way to fix this?

Regards,

Muiz

1 пользователям понравился этот пост

sergio 01.08.2023 06:08:00

#2 Опубликовано: 01.08.2023 02:42:18

Davide Carpi

1415 сообщений из 2872 понравились пользователям.

Группа: Moderator

I'm not sure that the Toolbox code in Custom Functions is updated to the latest API changes, since that feature is not activated there;

please check one of the following:

You might find the latter more interesting since implements also the SVG rendering.

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

2 пользователям понравился этот пост

muiz 01.08.2023 04:11:00, sergio 01.08.2023 06:08:00

#3 Опубликовано: 03.08.2023 19:06:42

⚜ Kenny Lemens, P.E. ᵂᴵ

74 сообщений из 164 понравились пользователям.

Группа: User

Greetings,

I vaguely remember having a similar issue. I program in VB.NET, so part of my issue was converting code from C# to VB.NET, but I'll rattle off some items:

Make sure you set up your class correctly; ｢Implements｣ IPluginToolboxGroups instead of ｢Inherits｣ or ｢Delegate｣ or ｢Shared｣
Subs/Functions/Variables must use appropriate permissions; I think I had some as ｢Private｣ or ｢Protected｣, but had to use ｢Public｣ ¿Maybe?

I broke up my ButtonsMetaData declarations; instead of having an inline statement like you, I created an object and then modified the properties; I remember having some trouble getting an inline statement to work...


      Dim btnButtonA2 As ButtonsMetaData = New ButtonsMetaData(" Δ°F "
      btnButtonA2.Action = "'Δ°F"
      btnButtonA2.Description = "Degrees Fahrenheit, Difference of"


      Dim toolGrp_A As ToolboxGroup = New ToolboxGroup()
      toolGrp_A.Title = "Engineering Toolbar"
      toolGrp_A.Buttons = {btnButtonA1, btnButtonA2, btnButtonA3}

      Return (New ToolboxGroup() {toolGrp_A})

As a final note (for what its worth): this is the class I am using:

SMath.Manager.ButtonsMetaData

Your problem may be the "ButtonsMetaData.ButtonsMetaData()".

I'm using v0.99 so that may also be an item to note between us.

May this be of Good Help;
⚜ Kenny Lemens, P.E. ᵂᴵ
