Hi. How to write math decorations? Like Overdot (m_dot), Overvector, unit vector ^ ...
Question is for SMath formulas and Write plugin too

Thanks in advance.

Alvaro.

Wrote

Hi. How to write math decorations? Like Overdot (m_dot),
Overvector, unit vector ^ ...
Question is for SMath formulas and Write plugin too

Thanks in advance.

Alvaro.

AFAIK, In Smath there is 0 possibility to decorate maths.
Even if there would be, you would have to define the decoration.
What you mean is decorate the left hand side of the formula to
define the right hand side otherwise decorated again.
The Mathcad Cntrl+Shift+K was great to instruct about the units
in the formula, but not carried in the program.
I noticed from Mike that Smath supports sinα²
in the work sheet: "Geographical distance" .

Cheers Alvaro, Jean

Wrote

I noticed from Mike that Smath supports sinα²
in the work sheet: "Geographical distance" .

Cheers Alvaro, Jean

Well, that's something. Regards.

Alvaro.

Hacking xml? Overbar in html: https://en.wikipedia.org/wiki/Overline#HTML_with_CSS . I don't know if SMath support Unicode. Also, don't know much about typeseting (I want the program do that for me, I refuse to take courses about that).
XML typeseting: http://asa.aip.org/phonsymbol.pdf . Can modify the xml of an archive once an then copy and paste overdot, vector, and the others?

Regards.

Alvaro.

Wrote

Hacking xml? Overbar in html: https://en.wikipedia.org...i/Overline#HTML_with_CSS . I don't know if SMath support Unicode. Also, don't know much about typeseting (I want the program do that for me, I refuse to take courses about that).
XML typeseting: http://asa.aip.org/phonsymbol.pdf . Can modify the xml of an archive once an then copy and paste overdot, vector, and the others?

Regards.

Alvaro.

I don't think you can do directly in Smath text, purely keyboard [Courier].
Whatever "decoration" from whatever source producer, Smath won't interpret the
code as math code ... just like Matlab, Maple. In Mathcad 11, the decoration is
simply ignored. I'm not familiar with Mathematica decoration [too old version].

Cheers, Jean

Wrote

Hi. How to write math decorations? Like Overdot (m_dot), Overvector, unit vector ^ ...
Question is for SMath formulas and Write plugin too

I use charmap to copy-paste.
SMath supports Unicode in a sense that it allows you to use all the available font repertoire, but its font rendering is only limited to simple output, i.e. combining characters are not applied to preceeding characters.

You may wish to file an enhancement request at BTS.

Hi Mike. I don't know if is the right time for ask for it. SMath is an excellent software, and don't know enough about the develop stage, and maybe there are other priorities where apply that effort. So, just looking for a workaround in the meantime.

Regards.

Alvaro.

In math regions you can use a wide range of characters, but not combining characters/diacritical marks. In character map (charmap) you may found some character with overdot to use (ẋẍẏẗż). Is possible to develop functions that renders like you want (f.e. the built-in diff(1), or those in Custom Glyphs plugin).
You may ask in BTS however, maybe one day Andrey will enable combining characters or he may found a smart alternative (combining are ok for single characters, but you can't apply them to a whole word)

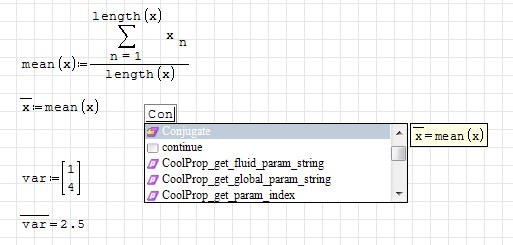

BTW if you need an overbar you can override the Conjugate function in Custom Functions plugin)



In Writer Region you should be able to use almost any character for the text, result is affected by the font family.

Very interesting. XP Home does not have CharMap anymore.

very strange... you can try:
- Start > All Programs > Accessories > System Tools > Character Map
- Run... > charmap
- %SystemRoot%\system32\charmap.exe

Wrote

very strange... you can try:
- Start

CharMap does not exist anymore XP Home. For sure I had it, even in task bar.
But, I have no clue why and by whom it has been removed from "System Tools".
Maybe by Windows itself during the last visit to XP [Jan 16, 2016].

It is still there from Excel => Insert => Symbol.



Integral Curve.sm (10 КиБ) скачан 38 раз(а).

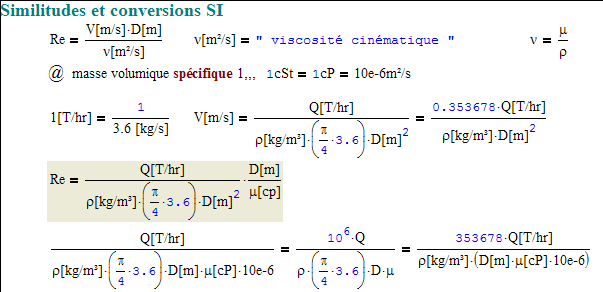

There is decoration and decoration, i.e: dead decoration and working decoration.

Dead decoration Edu. style to introduce units an ZAP units from Smath projects
... strictly Hanbook style and go !




Active decoration as function definition on the LHS.
Not exactly this one contour integral, I had it working in Mathcad 11
I pinched the symbol from Mathematica 4.0 ... working as well Mathcad 11




Get more info for the source code :

http://math.stackexchange.com/questions/242514/using-contour-integration

Good thing I didn't abuse decoration Mathcad 11 Millenium,
In the swicth to XP ,,,, decorations have changes to zombies

Present the project in Handbook style, constants/parameters wrt unit system,
plug in program unitless ... visible to all, universal comprehension
easy to QA [Quality Assurance], tracable => end of it.

Jean

Wrote

In math regions you can use a wide range of characters, but not combining characters/diacritical marks.

Hi Davide. Yes, we can. But for some few.

Best regards.

Alvaro.

overbar.sm (4 КиБ) скачан 61 раз(а).

Thanks Alvaro,

Needs large size style, just so...so !
I remember, Tom managed the X overbar
it could just be copied/pasted.

Ã, Ä, Å, Ø, ñ, 

[Alt+0]+key start @ 33 ...255

Jean

Hi Jean.

Actually, this file is named overbar because was the Tom answer long time ago, when I ask for overdot and other math decorations for mathcad. If you check it don't have an overbar because the diacritical mark don't works, I guess that it is for the courier user font, but that's the file name where I store those characters.

Best regards.

Alvaro.

Saludad Alvaro,

∫(Φ):= .... very nice in work sheet. I got it from Maple .
Contour integral => no symbol found.

Jean

Maths Symbols.sm (59 КиБ) скачан 63 раз(а).

Wrote

Contour integral => no symbol found.

Here it is: ∮

You can find a list of math symbols on wikipedia (here and here), or also in Unicode Consortium's "Mathematical Operators" code tables.

Thanks Davide for the updated links.
If C is a Jordan curve about 0, then ∮C 1/zdz = 2πi

Those symbols are glyphes, dead drawings for dead maths
No use in Smath. Only [Shift+key] & [Shift+0key] can
be used as variable names, for those compatible.
This one, integral symbol, is unique ∫(Φ):{2*x}/{1+x^2}
---------------------DO NOT--------------------------
copy/paste in Smath: it crashes Smath and the entire PC !!!

Jean
