See the attached files. The MANHATTAN DATA.xlsx file is needed as input to LITTLE BOY LAMBDA AND ALPHA.sm.

The calculations seem to be working, but the XY plots are empty.

Have I missed something obvious?

Файл не найден.Файл не найден.

Thanks again.
Reg

Hello Reg,

It looks like the plots are empty because they are out of the display range set for the graph.

As it is the X values are actually between 8.75 and 8.95 but the display range is between 0.87 and 0.9.

All the best,

Gerry_Bush

Hi Reg. In addition to Gerry's observation, by double clicking on the XYPlot, in the "traces" menu, "Visible" is set to "False". The "Visible" property must be set to "True". I don't know how to configure the graph to only show shapes without the line that joins them, without modifying the argument with augment( alpha , "o" ) or something similar.

Best regards.
Alvaro.

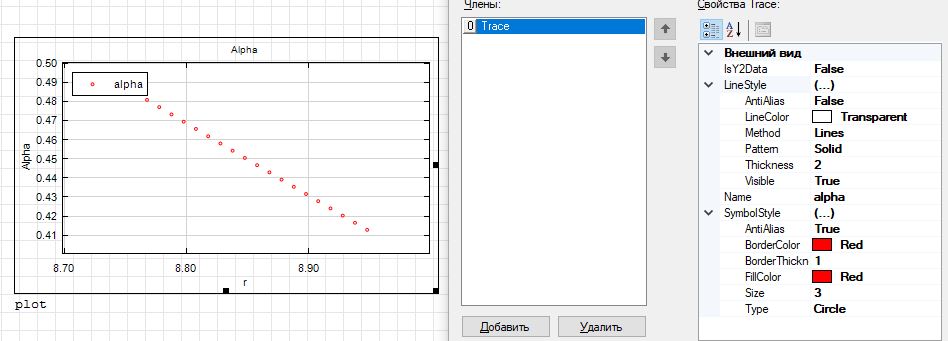

You can use transparent color for the line.

Everyone,
Thanks much.
At 81, I am clearly losing my mind, or my eyesight...maybe both.

Attached is a pdf of my updated file. All is working now, thanks to you.

SMATH ALPHA MODEL.pdf (688 КиБ) скачан 29 раз(а).

One last question. If I wanted to use the roots(2) function, do I need to cast everything in terms of the range variable k, or will roots(2) not work for multiple equations, each with a different k? Maybe in programming?

The MATHCAD 15 version gives slightly different results using the Find function. I have no idea which is more accurate.

MATHCAD ALPHA MODEL.pdf (299 КиБ) скачан 37 раз(а).

Thanks again for all your help.
Reg
