Problem with Graphs - graph of the resultant bending moment - Сообщения
#1 Опубликовано: 09.09.2022 11:20:30
I was stuck in a ragged moment. I don't know how to draw a graph. Finally, a correct chart made in Excel.
248. proba do wyslania.sm
248. proba do wyslania.sm
#2 Опубликовано: 09.09.2022 12:45:22
I was stuck in a ragged moment. I don't know how to draw a graph. Finally, a correct chart made in Excel.
You didn't define a, P, P.o, P.r, D.k.
After them defined with a number, a graph can appear.
Regards
#3 Опубликовано: 09.09.2022 13:04:43
Sorry I didn't save before posting.
That's right now.
I have problems with ]the Mg1 (x) and Mg2 (x) graph, this one at the end.
proba do wyslania.sm
That's right now.
I have problems with ]the Mg1 (x) and Mg2 (x) graph, this one at the end.
proba do wyslania.sm
#4 Опубликовано: 09.09.2022 14:07:58
#5 Опубликовано: 10.09.2022 09:19:39
I have problems with ]the Mg1 (x) and Mg2 (x) graph, this one at the end.

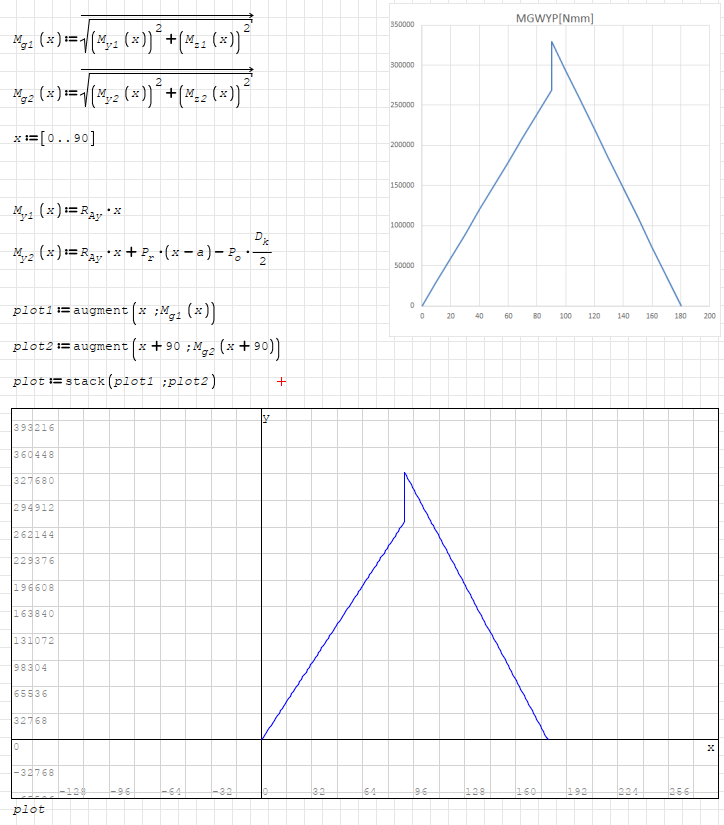

If I understood correctly, you are trying to plot graph picture in your file.
Here it is, you can download and check it from file below.
Regards
proba do wyslania.sm
#6 Опубликовано: 10.09.2022 17:11:27
#7 Опубликовано: 10.09.2022 17:53:47
#8 Опубликовано: 10.09.2022 20:56:52
Actually you don't need stack, augment, vectorize, etc.

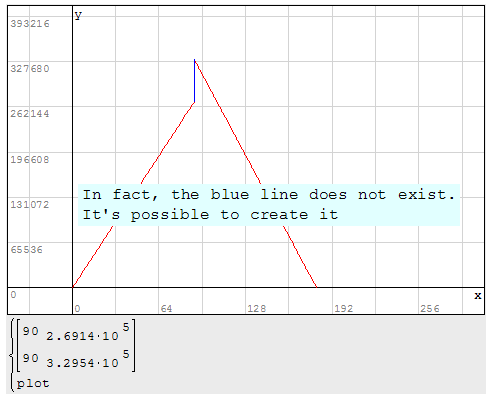

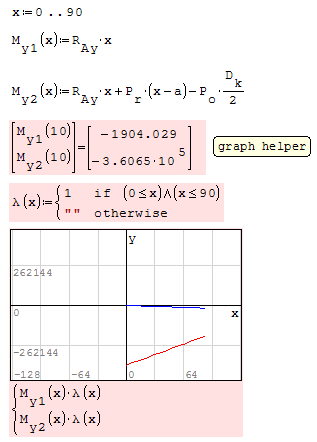

It can also be plotted easily like this.
Regards
proba do wyslania.sm
It can also be plotted easily like this.
Regards
proba do wyslania.sm
-
