Draw Bar Graph in XY Plot or ZedGraph - Сообщения
#1 Опубликовано: 07.11.2016 14:24:13
Hi,
It will be much appreciated if somebody can show me how to draw a bar graph in X-Y Plot or ZedGraph,
using two vectors as shown please ("t" in x axis, "Rain" in y axis).
It will be much appreciated if somebody can show me how to draw a bar graph in X-Y Plot or ZedGraph,
using two vectors as shown please ("t" in x axis, "Rain" in y axis).
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
#2 Опубликовано: 07.11.2016 14:51:22
Hello,
As far as I know there are no bar graphs in SMath. At least, there is no easy way to obtain them.
I wish I was wrong about it.
Regards,
Radovan
As far as I know there are no bar graphs in SMath. At least, there is no easy way to obtain them.
I wish I was wrong about it.
Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#3 Опубликовано: 07.11.2016 15:51:00
Just in case, might worth the effort to try with the modeller region
True
As far as I know there are no bar graphs in SMath.
True
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
2 пользователям понравился этот пост
#4 Опубликовано: 07.11.2016 16:36:53
Somehow Davide, you crossed my mind when I posted the answer
It seems I was right
Wish you the best of luck,
Radovan
It seems I was right
Wish you the best of luck,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
2 пользователям понравился этот пост
#5 Опубликовано: 07.11.2016 22:48:04
Thank you very much Davide and Radovan for your clarifications.
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
#6 Опубликовано: 07.11.2016 23:13:50
Thank you again Davide and Radovan.
To demonstrate a Flood Hydrograph, it was only possible to draw a line graph (in reverse order) in ZedGraph.
In X-Y Plot reverse order is not possible.
To demonstrate a Flood Hydrograph, it was only possible to draw a line graph (in reverse order) in ZedGraph.
In X-Y Plot reverse order is not possible.
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
1 пользователям понравился этот пост
Radovan Omorjan 08.11.2016 03:42:00
#7 Опубликовано: 08.11.2016 00:23:45
I know nothing about "Zedgraph".
I can se Davide had a "cat in the hat".

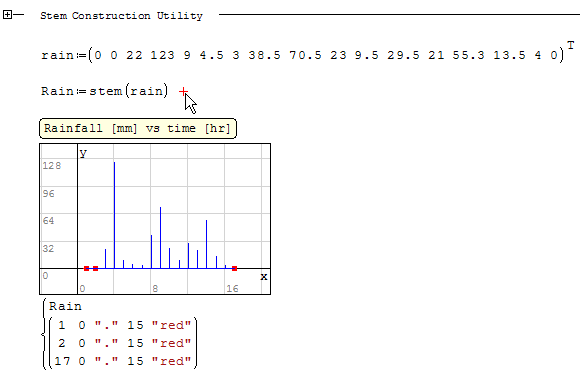

Stem plot does same/different in no time
except for the red 0 rain [<20 sec]
Cheers, Jean
Forum Rainfall.sm
I can se Davide had a "cat in the hat".
Stem plot does same/different in no time
except for the red 0 rain [<20 sec]
Cheers, Jean
Forum Rainfall.sm
2 пользователям понравился этот пост
#8 Опубликовано: 08.11.2016 02:47:45
This scrap proposal makes me happy for some
distinctive small project. Manual but convenient
for small projects. For larger size and unicolor
the project needs be constructed around a counter.
Jean
distinctive small project. Manual but convenient
for small projects. For larger size and unicolor
the project needs be constructed around a counter.
Jean
2 пользователям понравился этот пост
#9 Опубликовано: 08.11.2016 03:02:22
... next version
4 пользователям понравился этот пост
frapuano 08.11.2016 05:02:00, Radovan Omorjan 08.11.2016 03:42:00, Davide Carpi 08.11.2016 06:03:00, NDTM Amarasekera 08.11.2016 06:40:00
#10 Опубликовано: 08.11.2016 06:44:08
Thank you for the examples.
I will try my best to use them to suit my problem.
I will try my best to use them to suit my problem.
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
#11 Опубликовано: 08.11.2016 07:12:41

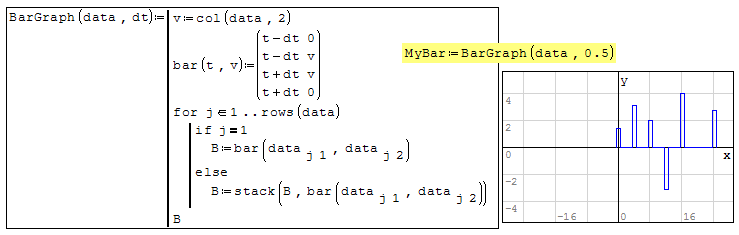

Simple example
Russia ☭ forever, Viacheslav N. Mezentsev
2 пользователям понравился этот пост
#12 Опубликовано: 08.11.2016 08:13:06
Many thanks to Uni, for the simple example.
I was expecting a response from you also.
I was expecting a response from you also.
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
#13 Опубликовано: 08.11.2016 10:38:56
#14 Опубликовано: 08.11.2016 11:07:35
In the Viacheslav proposal, you don't see bar not plotting equally wide.
Because the bars are so wide ! In the real project I proposed, the bars
are much thiner for dense project. Thus there will always be at least
"one" bar looking thiner because of the plot pixel impossible to match
perfectly along the stretching of the plot.
Cheers, Jean
Because the bars are so wide ! In the real project I proposed, the bars
are much thiner for dense project. Thus there will always be at least
"one" bar looking thiner because of the plot pixel impossible to match
perfectly along the stretching of the plot.
Cheers, Jean
#15 Опубликовано: 09.11.2016 07:26:03
Simple example
I used method proposed by Uni to plot Bar Graph to show rainfall in ZedGraph as shown (in reverse order).
Look within!... The secret is inside you.
Best Regards
Eng. NDTM Amarasekera - Sri Lanka
#16 Опубликовано: 09.11.2016 11:54:21
Thanks for the "Zed Graph" snippet. I don't have this plugin
whereas I will stay Smath 5346, and don't intend to upgrade.

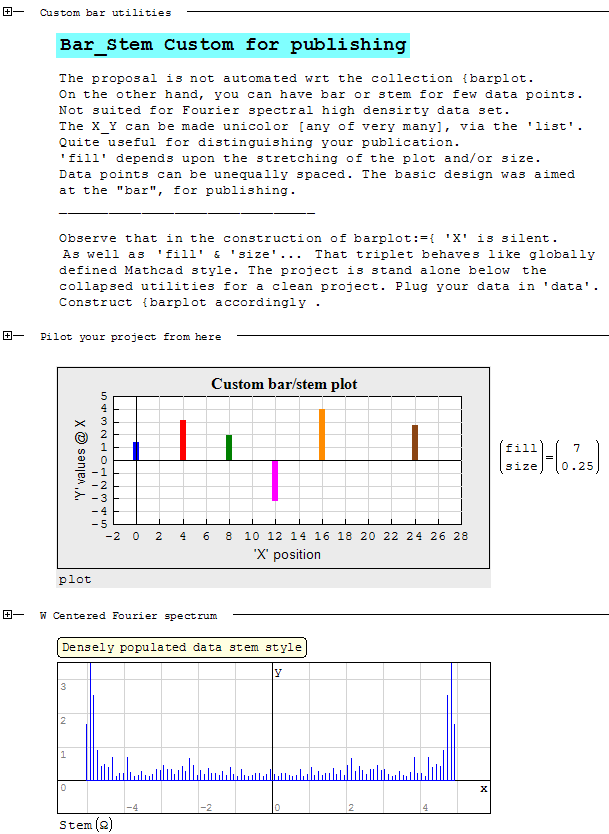

The attached document is for publising projects.
Cheers, Jean
2D Bar Plot Custom.sm
whereas I will stay Smath 5346, and don't intend to upgrade.
The attached document is for publising projects.
Cheers, Jean
2D Bar Plot Custom.sm
-
