Hi,

Looking for a little guidance..

I'm an engineer, and use Smath in structural design.

In doing so I often need to compare a calculated capacity to a design load.

Can anyone suggest an elegant method of reporting a "result", being: pass or: fail……?

thanks,

Stu.

#2 Опубликовано: 16.12.2015 01:36:16

Ernesto

13 сообщений из 74 понравились пользователям.

Группа: User

One way is to use the conditionally formatted labels extension.

http://en.smath.info/forum/yaf_postst2100_Conditionally-Formatted-Labels.aspx

Another is to present your results in table form using the table region.

http://en.smath.info/forum/yaf_postst1953_Table-Region.aspx

2 пользователям понравился этот пост

studoc 16.12.2015 02:54:00, Davide Carpi 16.12.2015 11:53:00

#3 Опубликовано: 16.12.2015 09:57:53

csb531

0 сообщений из 24 понравились пользователям.

Группа: User

Hello,

I use most of the time a very simple "if" condition.
No need for plug-ins and very easy to check for any reader.
By using indices you can also create a "table" with all "OK" an "FALSE" results. This can be convenient if you have different load cases with each one or more checks in a large document.

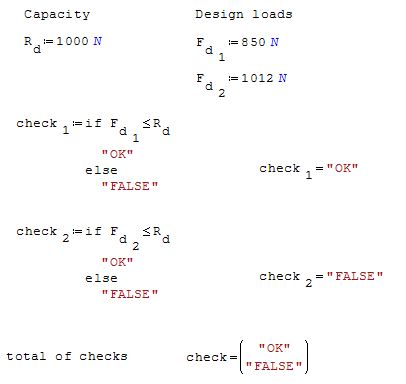

See the attached image.
