SMath Studio 0.98.5973 (09 May 2016) - Сообщения
#1 Опубликовано: 09.05.2016 12:23:19
SMath Studio 0.98.5973 available
Latest changes (against SMath Studio 0.98.5953)
- SS-2318: Logic of functions execution on definitions reworked (functions will not be executed anymore if at least one of their arguments is undefined);

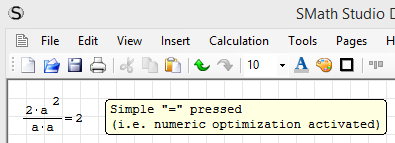

- SS-167: In case of an error occurred on numeric calculation SMath Studio tries to optimize expression symbolically and does second attempt to make numeric calculation afterwards;
- SV-2332: Critical exceptions appears when working with Evaluable regions displayed in graphic style (in SMath Viewer mode);
- SS-42: Function num2str() updated to support math string as an argument;
- SS-1253: Incorrect units handling for Röntgen fixed;
- Fixed issues appears when inserting arguments separator when cursor is in the right part of equation;
- Function eval(..) improved to allow using it in functions definitions;
- Fixed issue with saving MethRegion when Input Data hidden;
- SMath Viewer Pro issues fixed (freezing on icon change and broken output exe);
- Incorrect sign fixed in result of UnitsOf function in some cases;
- Refactoring.
Download
- Desktop Windows (desktop computer with Windows OS):
SMathStudioDesktop.0_98_5973.Setup.msi (Date: 19.04.2016. File size: 2.02MB)
- Desktop Linux (desktop computer with Linux OS):
SMathStudioDesktop.0_98_5973.Mono.tar.gz (Date: 19.04.2016. File size: 1.16MB) - last version of Mono distributive required!
- Cloud version (all modern browsers supported):
SMath Studio in the Cloud (Date: 09.05.2016.)
8 пользователям понравился этот пост
Davide Carpi 09.05.2016 13:20:00, sergio 09.05.2016 13:36:00, Alexander O. Melnik 09.05.2016 18:16:00, Mike Kaganski 09.05.2016 20:10:00, Вячеслав Мезенцев 10.05.2016 01:18:00, NDTM Amarasekera 10.05.2016 02:09:00, Radovan Omorjan 10.05.2016 02:20:00, Mikka 10.05.2016 05:35:00
#2 Опубликовано: 09.05.2016 19:32:49
Thanks for the update. I was having graphical issues with this version all day. Has to do with areas as the second line jumped around. As a feature, can you have the second/bottom area line copy the area name? It would have made it easier to clean up after the graphic issues
#3 Опубликовано: 14.05.2016 13:17:09
#4 Опубликовано: 14.05.2016 14:58:54
Carlos,

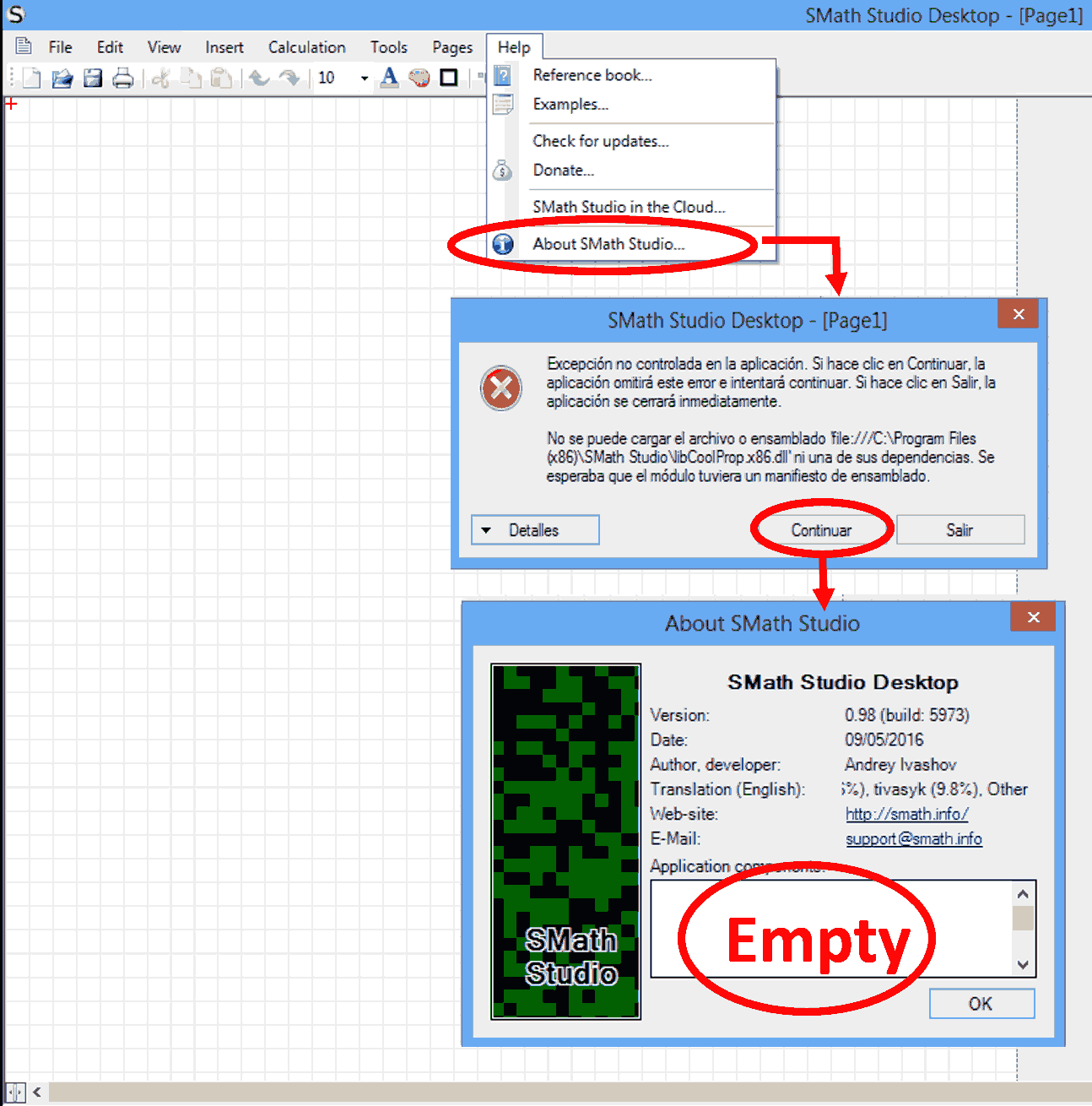

From you screenshot I see libCoolProp.x86.dll is located within SMath Studio directory. This tells me about some manual operations performed within SMath Studio installation directory.
Please uninstall SMath Studio, manually delete SMath Studio folder in C:\Program Files (x86) and install SMath Studio again.
Please also do not change anything manually in SMath Studio installation directory.
Best regards.
WroteSmath Studio gives this error when trying to know the version
From you screenshot I see libCoolProp.x86.dll is located within SMath Studio directory. This tells me about some manual operations performed within SMath Studio installation directory.
Please uninstall SMath Studio, manually delete SMath Studio folder in C:\Program Files (x86) and install SMath Studio again.
Please also do not change anything manually in SMath Studio installation directory.
Best regards.
1 пользователям понравился этот пост
Davide Carpi 14.05.2016 19:55:00
#5 Опубликовано: 16.05.2016 23:28:32
Dear Andrey
You were right , the problem has already been solved.
Thank you so much
Best regards
Carlos
You were right , the problem has already been solved.
Thank you so much
Best regards
Carlos
#6 Опубликовано: 17.05.2016 11:35:34

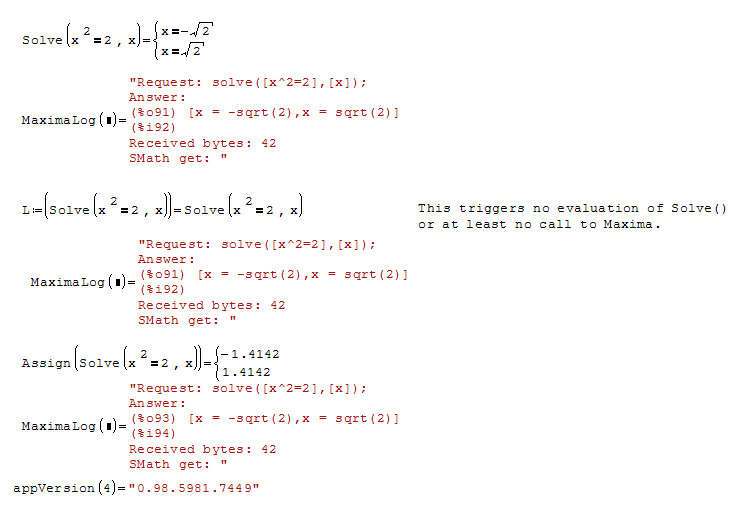

There is a new problem with Solve() from the Maxima plugin. If the function is part of an assignment, then it seems to not be called at all (no increment in the Maxima expression counter in the log).
If it is just evaluated, then it executes correctly.
Also, inside Assign() it works as expected.
SolveProblem.sm (6 КиБ) скачан 90 раз(а).

If it is just evaluated, then it executes correctly.
Also, inside Assign() it works as expected.
SolveProblem.sm (6 КиБ) скачан 90 раз(а).
Martin Kraska
Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#7 Опубликовано: 17.05.2016 13:53:38
Hello, Martin.
This is due to http://smath.info/bts/Issues/IssueDetail.aspx?id=2318 (details available there).
So, in case of assignment before execution SMath Studio checks if all required variables are defined. And functions at right of definition sign will be called only if this statement is true. Otherwise, all the calls will be postponed till the left side of the definition will be used somewhere (reason is obvious, see the screenshots in SS-2318 ticket).

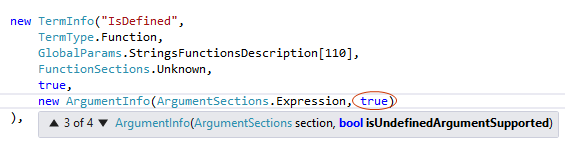

But, there is a possibility to fix this behavior for specific functions in the plug-in: isUndefinedArgumentSupported agr should be set for ArgumentInfo in the plug-in.

Let me know if you still have questions.
Regards.
This is due to http://smath.info/bts/Issues/IssueDetail.aspx?id=2318 (details available there).
So, in case of assignment before execution SMath Studio checks if all required variables are defined. And functions at right of definition sign will be called only if this statement is true. Otherwise, all the calls will be postponed till the left side of the definition will be used somewhere (reason is obvious, see the screenshots in SS-2318 ticket).
But, there is a possibility to fix this behavior for specific functions in the plug-in: isUndefinedArgumentSupported agr should be set for ArgumentInfo in the plug-in.
Let me know if you still have questions.
Regards.
1 пользователям понравился этот пост
Martin Kraska 18.05.2016 12:33:00
#8 Опубликовано: 18.05.2016 12:36:18
Andrey, thanks for the information.
Glad to hear that there is a clear reason for the behaviour and that there should be a straightforward fix. This sounds like a good initial project once I am up and running with reworking the maxima plugin.
Glad to hear that there is a clear reason for the behaviour and that there should be a straightforward fix. This sounds like a good initial project once I am up and running with reworking the maxima plugin.
Martin Kraska
Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
3 пользователям понравился этот пост
