Problem in X-Y Plot

#1 Опубликовано: 26.02.2025 19:30:34

0 сообщений из 10 понравились пользователям.

Группа: User

Hello all,

Again I recur to the Question Forums to attempt to solve an issue that I, single handely, cannot fix.
The issue I'm attempting to solve revolves around the definition of the movement of a certain bell, and the Horizontal forces produced by such movement.
In the attempt of solving this issue, I recurred to "Cephes Mathematical Library" Plugin, due to the necessity of implementing Jacobian Elipting Functions, as they are vital to obtain a more accturate discription of reality.
The problem I'm encountering is that the graph I create does not show anything at all, no matter how much I increase the frame window, or force parameters in the functions and equations I utilize.

I know this is quite the niche problem, but, if anyone has encountered similar problems as I have, I would be happy to hear solutions or steps to one.
I'll annex the SMath file for further investigation if necessary.

Much appreciated.
Frequency Analysis_v1.sm (15 КиБ) скачан 29 раз(а).

#2 Опубликовано: 26.02.2025 20:24:08

StvMath

35 сообщений из 56 понравились пользователям.

Группа: User

The problem lies with the sine function. Your argument to the sine function has units. It needs to be unitless.

#3 Опубликовано: 26.02.2025 21:29:56

João Pereira

0 сообщений из 10 понравились пользователям.

Группа: User

Wrote
The problem lies with the sine function. Your argument to the sine function has units. It needs to be unitless.

Thank you very much for the assistance. I understanad what you're saying, but how do I resolve that issue? I'm kind of lost.

Thanks in advance for the assistance

#4 Опубликовано: 26.02.2025 23:31:36

StvMath

35 сообщений из 56 понравились пользователям.

Группа: User

Wrote

Wrote
The problem lies with the sine function. Your argument to the sine function has units. It needs to be unitless.

Thank you very much for the assistance. I understanad what you're saying, but how do I resolve that issue? I'm kind of lost.

Thanks in advance for the assistance

There seems to be an error in the expression for phi(t). However, I would need to see how it was derived to stand a chance of helping further.

#5 Опубликовано: 27.02.2025 11:57:44

Alvaro Diaz Falconi

992 сообщений из 1674 понравились пользователям.

Группа: User

Olá João. Some notes in the attached file.

Frequency Analysis_v1.sm (154 КиБ) скачан 32 раз(а).

Best regards.
Alvaro.

#6 Опубликовано: 27.02.2025 21:36:31

João Pereira

0 сообщений из 10 понравились пользователям.

Группа: User

Wrote

Wrote

Wrote
The problem lies with the sine function. Your argument to the sine function has units. It needs to be unitless.

Thank you very much for the assistance. I understanad what you're saying, but how do I resolve that issue? I'm kind of lost.

Thanks in advance for the assistance

There seems to be an error in the expression for phi(t). However, I would need to see how it was derived to stand a chance of helping further.

Hello again, I took the expression from the agllomerate of a couple of thesis work I discovered when studying the process. As the actual derrivation is quite complicated, but was common between papers, I didn't bother for it's confirmation.
Nevertheless, could you point me the error for the expression in phi(t)?

Thanks in advance.

#7 Опубликовано: 27.02.2025 21:40:50

João Pereira

0 сообщений из 10 понравились пользователям.

Группа: User

Wrote
Olá João. Some notes in the attached file.

Frequency Analysis_v1.sm (154 КиБ) скачан 32 раз(а).

Best regards.
Alvaro.

Alvaro, very much appreciate the efforts you placed in a project that doesn't affect you in any way, it is very much appreciated.
Nevertheless, I do have some questions behind some of the processes you did. Firstly, I believe you changed the sn( 1; 2) function I utilized to a simpler sin() function, I must ask if that was mostly due to simplification of the analytical processes or if there was any other reasoning behind it.
Secondly, you refer that phi(t)' and phi(t)'' have different units and, therefore, H(t) will be incorrect. How could one attempt to resolve that issue?

Thank you very much in advance.

#8 Опубликовано: 28.02.2025 02:06:25

Alvaro Diaz Falconi

992 сообщений из 1674 понравились пользователям.

Группа: User

Wrote
... Firstly, I believe you changed the sn( 1; 2) function I utilized to a simpler sin() function, I must ask if that was mostly due to simplification of the analytical processes or if there was any other reasoning behind it. ...

Because I don't know how to find the derivative of the arcsin of a complicated Jacobi elliptical si expression. Actually, Wolfram neither. In this version I restored the function sn and the derivatives are found numerically.

Wrote
... Secondly, you refer that phi(t)' and phi(t)'' have different units and, therefore, H(t) will be incorrect. How could one attempt to resolve that issue?

The way it is written, the units of H do not match. However, I do not know how to fix them because I have no idea what H could be. Is it the Hamiltonian? If you provide some theoretical framework, maybe I can understand a little better what you are trying to solve. Also, there are many unused variables: volume, thickness, beats per minute, diameter...

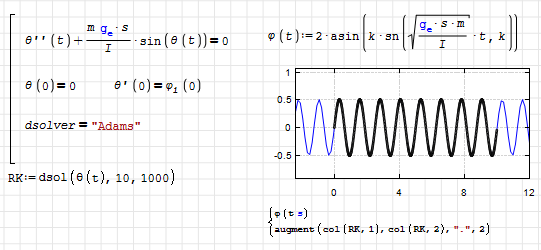

Numerical and symbolic solution, for what I suppose is the problem to be solved:

Frequency Analysis_v2.sm (189 КиБ) скачан 29 раз(а).

Best regards.
Alvaro.

#9 Опубликовано: 28.02.2025 20:36:32

StvMath

35 сообщений из 56 понравились пользователям.

Группа: User

Wrote

Hello again, I took the expression from the agllomerate of a couple of thesis work I discovered when studying the process. As the actual derrivation is quite complicated, but was common between papers, I didn't bother for it's confirmation.
Nevertheless, could you point me the error for the expression in phi(t)?

Thanks in advance.

Can you upload (or provide a link to) the two papers you mention?

#10 Опубликовано: 01.03.2025 17:59:27

sergio

115 сообщений из 329 понравились пользователям.

Группа: User

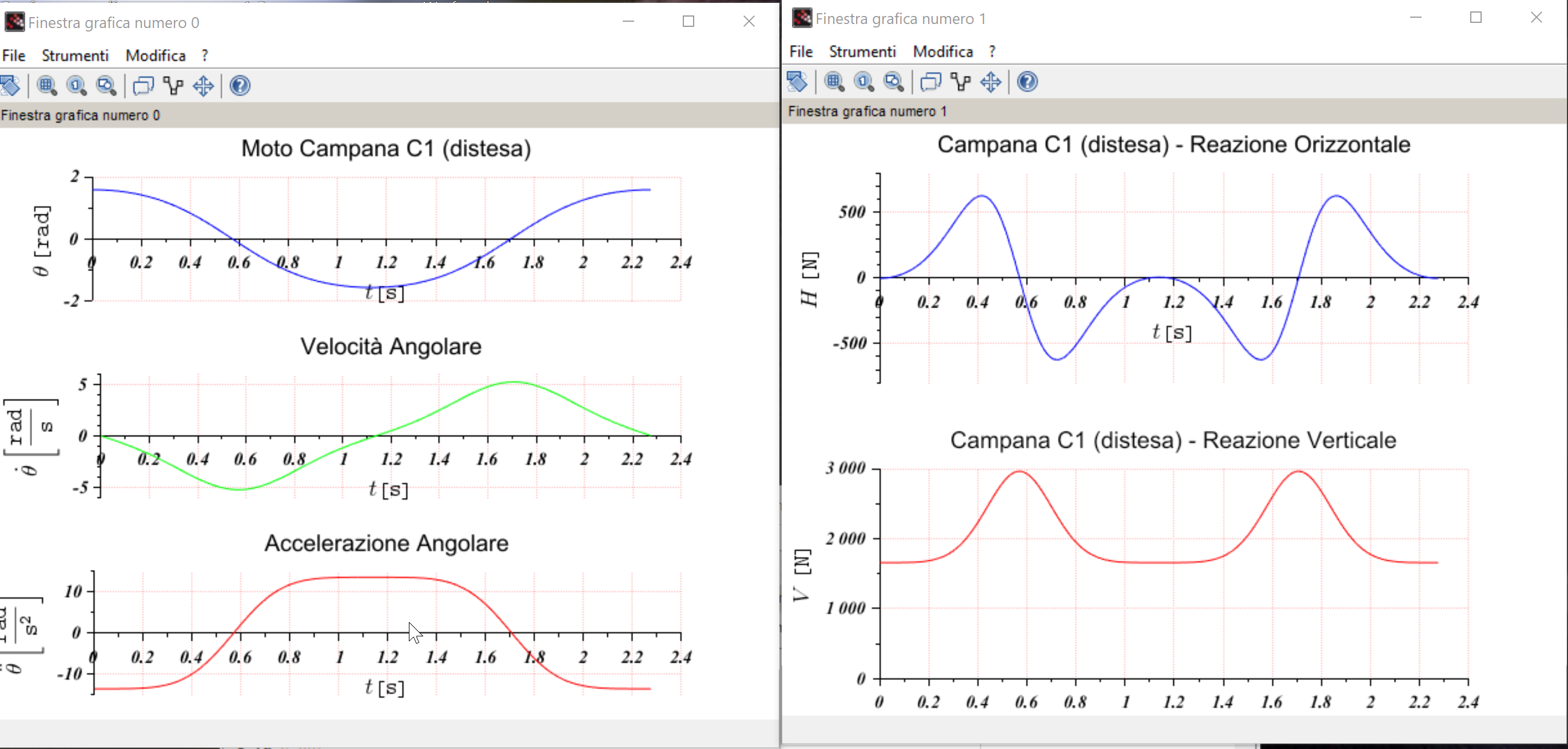

A long time ago I addressed the problem by writing this scilab script that I am attaching, omitting only the part for the production of the graphs. It also works to date. Maybe it can be useful to you, at the moment I don't have time to try to transform it into something Smath
sergio

Показать спойлер

1 пользователям понравился этот пост

Alvaro Diaz Falconi 02.03.2025 07:37:00

#11 Опубликовано: 02.03.2025 07:38:48

Alvaro Diaz Falconi

992 сообщений из 1674 понравились пользователям.

Группа: User

Wrote
A long time ago I addressed the problem by writing this scilab script ...

Hi Sergio. A solution, I guess that it is the same.

Campana di Pompelmo.pdf (524 КиБ) скачан 39 раз(а).

Campana di Pompelmo.sm (1 МиБ) скачан 27 раз(а).

Best regards.
Alvaro.

1 пользователям понравился этот пост

sergio 02.03.2025 23:12:00

#12 Опубликовано: 02.03.2025 22:55:50

João Pereira

0 сообщений из 10 понравились пользователям.

Группа: User

To all the involved in the assistance of this work I thank you deeply, I would not discover the necessary means to solve the problem I was trying to solve without the assistance provided.

Cheers to all.
João

#13 Опубликовано: 02.03.2025 23:50:01

sergio

115 сообщений из 329 понравились пользователям.

Группа: User

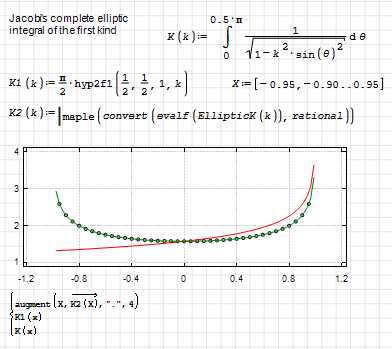

Alvaro, first of all thanks for the great job. I found an important mistake (partly caused by my lightness in the use of the "K" variable). %K is a Scilab function for the calculation of the Jacobi's complete elliptic integral of the first kind (I hope Smath has this function available)

Показать спойлер

sergio

1 пользователям понравился этот пост

Alvaro Diaz Falconi 03.03.2025 01:28:00

#14 Опубликовано: 03.03.2025 01:25:43

Alvaro Diaz Falconi

992 сообщений из 1674 понравились пользователям.

Группа: User

Hi Sergio. Don't worry. The procedure is robust, this is, accept that kind of variations.

Campana di Pompelmo v2.sm (1 МиБ) скачан 21 раз(а).

Best regards.
Alvaro.

1 пользователям понравился этот пост

sergio 03.03.2025 02:44:00

#15 Опубликовано: 03.03.2025 02:53:07

sergio

115 сообщений из 329 понравились пользователям.

Группа: User

Alvaro thanks again.

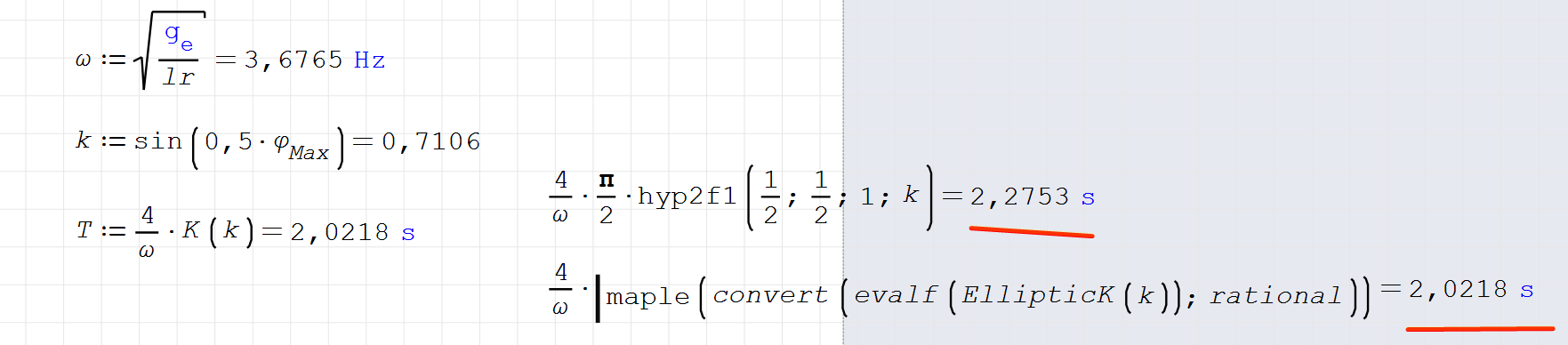

Only a annotation for the calculation of the "K" function: you gave two methods (indicating what you think preferable); The other method numerically provides the same value provided by Scilab and in fact two rather different periods of oscillation are obtained as indicated below (2.02 s against 2.27 s).
I have no mathematical knowledge so high to be able to evaluate this difference that does not seem to me to be of an exclusively numerical type.

Показать спойлер

sergio

1 пользователям понравился этот пост

Alvaro Diaz Falconi 03.03.2025 04:18:00

#16 Опубликовано: 03.03.2025 04:24:39

Alvaro Diaz Falconi

992 сообщений из 1674 понравились пользователям.

Группа: User

Hi Sergio. You're right. I couldn't find the function among the plugins, so I looked for equivalent ways of writing it on the Wolfram functions site. However, numerical problems with a 4-variable function can be really serious. Surely there is some other, more accurate way, and one that doesn't involve using Maple just to evaluate a function, no matter how special it is.

https://functions.wolfram.com/EllipticIntegrals/EllipticK/26/01/01/
