define one vector from another - apply a operation on each vector element with results given in a second vector - Сообщения
#1 Опубликовано: 16.10.2013 11:27:48
I would simply like to define a vector, then apply a operation to each element and have the results in a second vector. This seems to be simple in MathCad but I can't seem to get it in SMath Studio.
In MathCad
[albumimg]322[/albumimg]
In SMath Studio I get this. I'm not shre just what this result is.
[albumimg]321[/albumimg]
Any assistance would be appreciated.
Thank you.
In MathCad
[albumimg]322[/albumimg]
In SMath Studio I get this. I'm not shre just what this result is.
[albumimg]321[/albumimg]
Any assistance would be appreciated.
Thank you.
#2 Опубликовано: 16.10.2013 11:46:45
The result is the sum of the squares of the elements, multiplied by two.
As far as I know SMath does not support vectorization (yet) so, in order to obtain what you need, you should use a for loop.
As far as I know SMath does not support vectorization (yet) so, in order to obtain what you need, you should use a for loop.
#3 Опубликовано: 16.10.2013 12:01:48

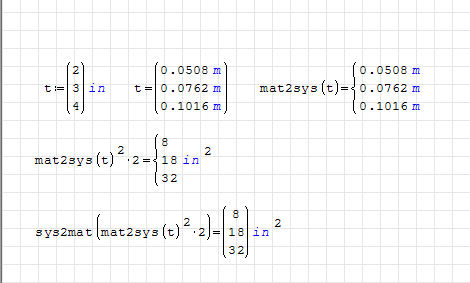

If you are using vectors, then you can try mat2sys() and sys2mat()
Regards,
Radovan
Regards,
Radovan
When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"
#4 Опубликовано: 16.10.2013 13:35:36
Thank you mb10, I got the For..Loop to work it out. I was wondering if the vector options were available or not.
To omorr, the mat2sys() and sys2ma() looks like a clean method to acheive these functionality but how do I add the mat2sys() and sys2mat() functions?
Thank you.
To omorr, the mat2sys() and sys2ma() looks like a clean method to acheive these functionality but how do I add the mat2sys() and sys2mat() functions?
Thank you.
#5 Опубликовано: 16.10.2013 16:46:28
mat2sys and sys2mat are part of the CustomFunctions plugin by Davide Carpi. You can install it using the extension manager (Tools> Plugins) or use the unofficial distribution with pre-installed plugins (link in the signature).
You also might consider using the Maxima Plugin (which requires Maxima to be installed on your system)
You also might consider using the Maxima Plugin (which requires Maxima to be installed on your system)
Martin Kraska
Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
