"Hz", the SI unit of frequency equates ONE cycle per second.
In my times, ONE cycle was ONE complete revolution.
So, ω:{2*π*'rad}/{8.6*10^4*'s}=7.306*10^{-5}*'Hz incorrect.

Bug 6179 Hz NOT radps.sm (6 КиБ) скачан 44 раз(а).
#2 Опубликовано: 02.02.2017 05:19:35
Davide Carpi

Davide Carpi

1416 сообщений из 2873 понравились пользователям.

Группа: Moderator

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#3 Опубликовано: 02.02.2017 11:04:41
Jean Giraud

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

Thanks Davide for re-threading to the original from "Javier"
There are rights and wrongs in the Smath unit system.
For sure Smath is wrong saying "1 rad/s = 1 Hz"
1 rad/s = 1/2pi Hz
rad/s is a measure,,, Hz is a count.

Jean
#4 Опубликовано: 02.02.2017 12:34:14
Jean Giraud

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

...no more argument about this bug

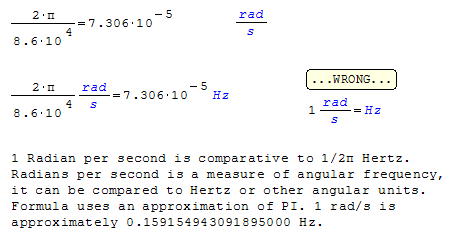

Unit rads.bmp
#5 Опубликовано: 02.02.2017 12:54:55
Martin Kraska

Martin Kraska

1222 сообщений из 2150 понравились пользователям.

Группа: Moderator

As stated in [SS-2395], there are just two things that SMath is to blame for at the moment:

- the default unit for dimension 1/time is Hz. This should be 1/s instead. Then the interpretation of what the 1 in the numerator counts (revolutions or radians), is left to the user.
- the angular velocity units are listed in the category "frequency". Should be "angular velocity" of course.

When these things are fixed, SMath won't contribute to the confusion any more. Which doesn't mean that there won't be confusion...

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
