Signals and Systems - Example of use of SMath for signals and systems analysis - Сообщения
Wrote
However I've edited the link, now it downloads the file, whatever is your favorite browser.
Thanks Davide!!
The post shows a trasfer function solved for the poles and zeros... It looks like you have to know how many poles and zeros to solve for before getting going. That would require putting the transfer function in standard form I'm somewhat sure.
https://electronics.stackexchange.com/questions/243435/bode-plot-of-transfer-function?rq=1
WroteI'm still trying to get the hand of this software. I'm an e.e. undergraduate and would like to be able to perform the something like the mathcad at the end of this post. I did try to input a similar syntax but I'm too much of a noob to work it. Can anyone shed some light on this for me?
The post shows a trasfer function solved for the poles and zeros... It looks like you have to know how many poles and zeros to solve for before getting going. That would require putting the transfer function in standard form I'm somewhat sure.
All documents attached are in Smath 6179, should work same imore recent version(s).
The Smath/Maple companions of this year [2018] work a bit different than Mathcad 11 [2003].
At the end, all attached documents work for me Smath 6179 same as my former Mathcad 11.
Inst_PID [ODE].sm (24,75 КиБ) скачан 339 раз(а).
Inst_PID Discrete State Systems.sm (25,51 КиБ) скачан 396 раз(а).
Inst_PID DynSys.sm (14,9 КиБ) скачан 384 раз(а).
Inst_PID [PI, PID].sm (71,51 КиБ) скачан 334 раз(а).
Inst_PID [P, PD].sm (106,94 КиБ) скачан 336 раз(а).
Inst_PID Feedback Attenuator.sm (43,76 КиБ) скачан 387 раз(а).
Inst_PID [MCD Model].sm (177,96 КиБ) скачан 331 раз(а).

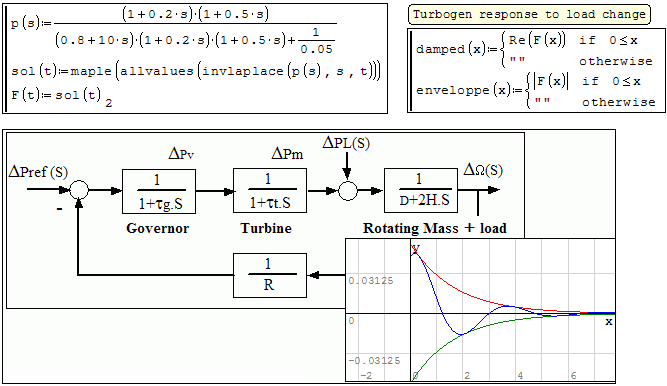

Inst_TurboGen Smath.sm (106,19 КиБ) скачан 375 раз(а).
ODE_Laplace Read First.sm (27,41 КиБ) скачан 403 раз(а).
Inst_TurboGen Signum.sm (91,08 КиБ) скачан 398 раз(а).
Inst_PID Discrete Schema.sm (166,36 КиБ) скачан 413 раз(а).
ODE_Laplace 1rst [Type 1].sm (24,7 КиБ) скачан 333 раз(а).
Inst_XFR 2nd [XFR nth].sm (34,08 КиБ) скачан 340 раз(а).
ODE_Laplace 1rst [Type 2].sm (22,5 КиБ) скачан 361 раз(а).
Inst_PID DynSys_v01 (1).sm (235,59 КиБ) скачан 397 раз(а).
ODE_Laplace 2nd [Type 3].sm (33,42 КиБ) скачан 338 раз(а).
ODE Laplace Kinetic Reaction.sm (93,13 КиБ) скачан 376 раз(а).
WroteI'm still trying to get the hand of this software. I'm an e.e. undergraduate and would like to be able to perform the something like the mathcad at the end of this post. I did try to input a similar syntax but I'm too much of a noob to work it. Can anyone shed some light on this for me?

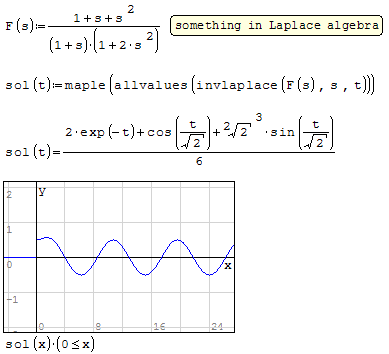

Here's an example of how one might attack it.
Page1.sm (44,98 КиБ) скачан 490 раз(а).
Wrote
Here's an example of how one might attack it.
Page1.sm (44,98 КиБ) скачан 490 раз(а).
Bravo! Alyles, simple and beautiful!!
WroteJean,

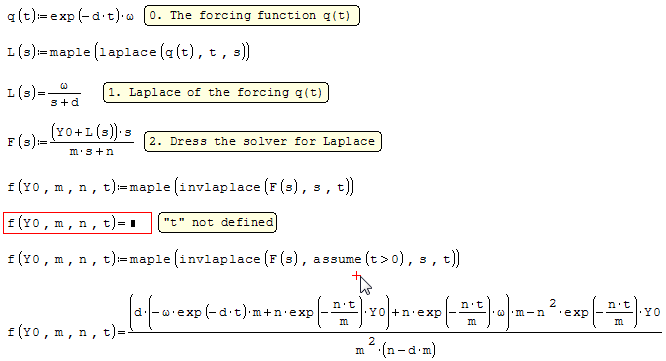

What why the invlaplace I get a dot?
Basile, mon ami, you need a new pair of glasses !
Just code as the snippet, it will gladly work for Basile.
Cheers ... Jean
Until I get my new pair, I see that a dot appears after the F(s) when I type a comma.
Any diagnosis?
Inverse Laplace-2.sm (4,25 КиБ) скачан 373 раз(а).
Basile
WroteJean,
Until I get my new pair, I see that a dot appears after the F(s) when I type a comma.
Any diagnosis?
Check from "Options" if you can fix .
Can you be more specific?
Basile
WroteJean,
Can you be more specific?
Basile
From the menu tool bar up top work sheet:
Tools => Options => Interface => Arguments separator [period, coma, semicolon]
Thank you,
Basile
People have done some amazing things with it that I can't even begin to follow but I haven't been as successful. Perhaps as I become more competent I might be more successful but for now I think I will unfortunately have to hang up my hat gentlemen... I bid you a respectful adieu for the time being kind Sirs...
Файл не найден.Файл не найден.
magnetism.zip (5,26 МиБ) скачан 201 раз(а).
WrotePerhaps as I become more competent I might be more successfu
I have doctored few things in these two documents.
hw 2.6.sm (133,49 КиБ) скачан 378 раз(а).
open loop gain from closed loop gain 2.sm (48,32 КиБ) скачан 368 раз(а).

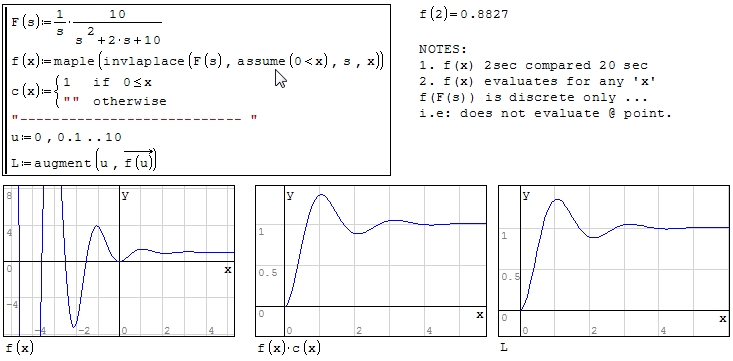

WroteHi, this is a snippet for numerical inverse Laplace transform. You can find time response of a system expresed in F(s) form.
enjoy
Oscar Campo
Hi. Enjoyed & Improved. Six years later.
InvLaplace2.sm (93,88 КиБ) скачан 381 раз(а).
Best regards.
Alvaro.
WroteEnjoyed
Thanks Alvaro for your dedication,
Does syntax error 6179, but does not to where it complains.
Don't worry, OK like this.
The 2nd example is lot more involved, correct [sanity MCD].
Cheers ... Jean
InvLaplace2 Otherwise.sm (27,68 КиБ) скачан 391 раз(а).
