Hi. With T-s diagram.

Gas-Steam Ideal.sm (101 КиБ) скачан 42 раз(а).
Gas-Steam Ideal.pdf (406 КиБ) скачан 56 раз(а).

Best regards.
Alvaro.

Wrote

Hi. With T-s diagram.

Gas-Steam Ideal.sm (101 КиБ) скачан 42 раз(а).
Gas-Steam Ideal.pdf (406 КиБ) скачан 56 раз(а).

Best regards.
Alvaro.

Thanks!
But see please
https://www.maplesoft.com/applications/Preview.aspx?id=154050

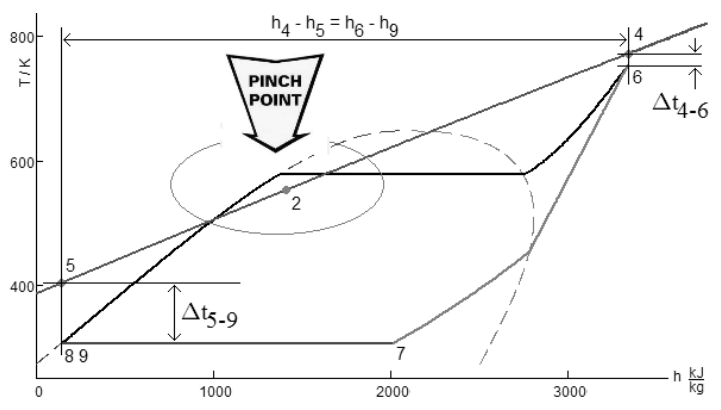

and this picture

Our cycle is not real in this sing. We must work with 2-stage unit

Wrote

[
But see please
https://www.maplesoft.com/applications/Preview.aspx?id=154050

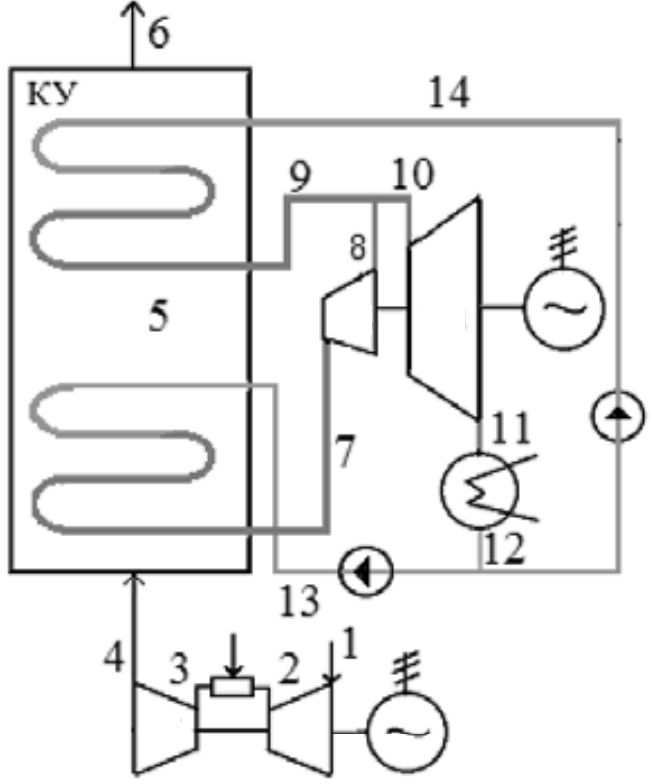

and this picture

You don't have recoverable heat at state 2, it is on the compressed liquid region (even 2 are exhaust pipe, but I don't know how to catch the exergy into a reheater or new boiler in that case).

Wrote

... Our cycle is not real in this sing. We must work with 2-stage unit

You need to guess some efficiencies or give some state for the reheat components.

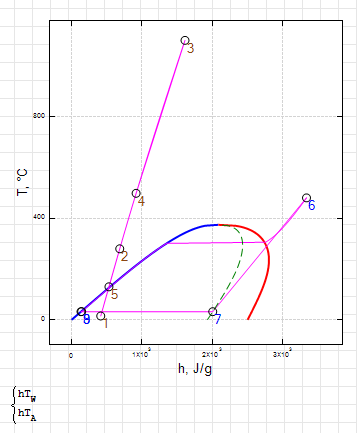

This have the Ts, Th and hs diagrams.

Gas-Steam Ideal.sm (134 КиБ) скачан 43 раз(а).

Best regards.
