Pipe Network Analysis

#1 Опубликовано: 14.04.2016 02:36:18

130 сообщений из 352 понравились пользователям.

Группа: User

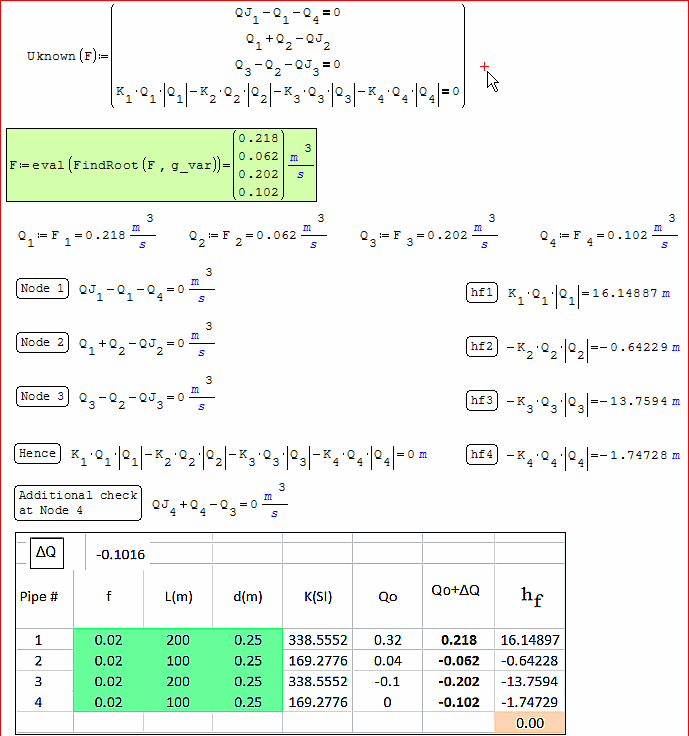

Examples of a problem solved in SS and Excel are attached.
The results are tallying.

Pipe Network Ex3.1.sm (417 КиБ) скачан 328 раз(а).
Pipe Network by Solver Ex3.xlsx (301 КиБ) скачан 313 раз(а).

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

1 пользователям понравился этот пост

Alexander O. Melnik 14.04.2016 14:10:00

#2 Опубликовано: 14.04.2016 03:15:44

Alexander O. Melnik

127 сообщений из 498 понравились пользователям.

Группа: Moderator

Wrote
Examples of a problem solved in SS and Excel are attached.
The results are tallying.

Pipe Network Ex3.1.sm (417 КиБ) скачан 328 раз(а).
Pipe Network by Solver Ex3.xlsx (301 КиБ) скачан 313 раз(а).

IMHO, in this case the EXCEL solution is "cleaner".

EXCEL shines when you need to process simple formulae applicable to many rows of data... Which we do have in this case.

#3 Опубликовано: 14.04.2016 10:47:43

Jean Giraud

983 сообщений из 6 866 понравились пользователям.

Группа: User

The problem is not to insist to expand symbolic. If you were scared of that one,
you have seen nothing compared to > 12 pages wide expansion. Before expanding,
hover Unknown(F) and see if it is of any profitable use.

1 пользователям понравился этот пост

Davide Carpi 14.04.2016 15:22:00

#4 Опубликовано: 14.04.2016 10:49:59

Jean Giraud

983 сообщений из 6 866 понравились пользователям.

Группа: User

... forgot to attach WS.

Pipe Network.sm (194 КиБ) скачан 208 раз(а).

2 пользователям понравился этот пост

Davide Carpi 14.04.2016 15:22:00, frapuano 14.04.2016 17:15:00

#5 Опубликовано: 02.05.2016 22:10:30

Gilberto E. Urroz

22 сообщений из 36 понравились пользователям.

Группа: User

Check out Lectures 14b-20 in this website:
http://www.neng.usu.edu/cee/faculty/gurro/Classes/Classes_Spring2013/CEE3510_Spring2013/CEE3510_Schedule.htm
EPANET is the easiest way to solve pipe networks

#6 Опубликовано: 03.05.2016 10:53:06

Ruben Sidranski

17 сообщений из 463 понравились пользователям.

Группа: User

Multiple software to do this. Pipe-flo, AFT Fathom, and others come to mind. If memory serves, the hydraulic institute and a limited node software to do this too.
http://www.pumps.org/Training/Free_Pump_Software.aspx
With that said, I still like to do things on SMath/MathCAD to verify results, since I can "see" the math.

#7 Опубликовано: 03.05.2016 11:32:51

Jean Giraud

983 сообщений из 6 866 понравились пользователям.

Группа: User

Wrote
With that said, I still like to do things on SMath/MathCAD to verify results, since I can "see" the math.

Can't be more right than checking the maths for documenting the project(s).
Elsid, as a byside question: is your Mathcad 15 working ?
My Google web site is still active "mathengjmg". I can see it all, but
since PTC deactivated [scrapped] Mathcad 11 Single User Edition, if I
download any of the 663 work sheets [100MB], none will open.
Would you be kind enough to download some work seets and let me know
if they open in your Mathcad 15 ?

Thanks, Jean

https://sites.google.com/site/mathengjmg[/url]
