Can't manage this otherwise than shitting bricks !
Solution is welcomed ... Thanks


Done otherwise to rescue the Document.

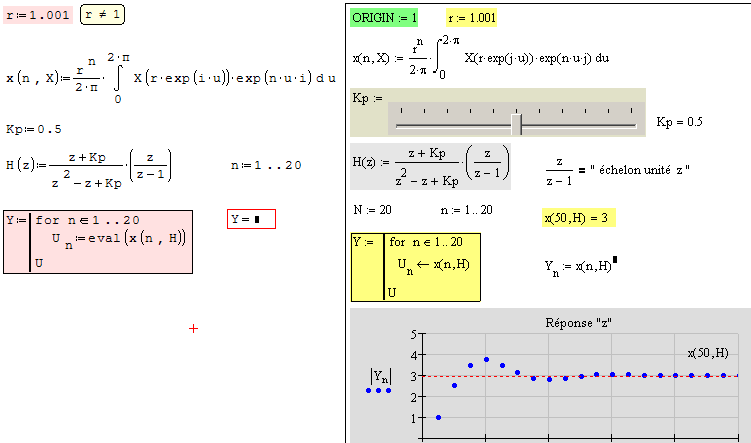

Inst_PID Discrete Schema EXAMPLE_6 Failed.sm (36 КиБ) скачан 31 раз(а).
#2 Опубликовано: 10.12.2018 14:15:29
Fridel Selitsky

Fridel Selitsky

520 сообщений из 451 понравились пользователям.

Группа: User

Tiny fix
Inst_PID Discrete Schema EXAMPLE_6.sm (39 КиБ) скачан 37 раз(а).
1 пользователям понравился этот пост
frapuano 10.12.2018 16:55:00
#3 Опубликовано: 10.12.2018 15:55:07
Arie

Arie

93 сообщений из 285 понравились пользователям.

Группа: User

Wrote

Can't manage this otherwise than shitting bricks !
Solution is welcomed ... Thanks


Done otherwise to rescue the Document.

Inst_PID Discrete Schema EXAMPLE_6 Failed.sm (36 КиБ) скачан 31 раз(а).

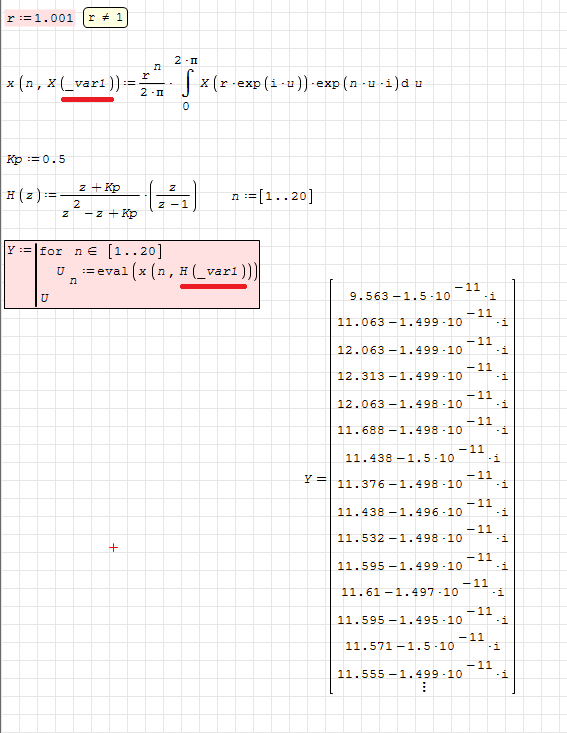

In order to pass functions as inputs to other functions you need to declare it as such and pass a "dummy" variable. See following.
There is still a problem in that it is not evaluating properly, I believe.



Inst_PID Discrete Schema EXAMPLE_6_Partlyfixed..sm (44 КиБ) скачан 24 раз(а).
Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW
1 пользователям понравился этот пост
frapuano 10.12.2018 16:55:00
#4 Опубликовано: 10.12.2018 20:29:36
Davide Carpi

Davide Carpi

1416 сообщений из 2873 понравились пользователям.

Группа: Moderator

fixed

Inst_PID Discrete Schema EXAMPLE_6 - fixed.sm (46 КиБ) скачан 35 раз(а).

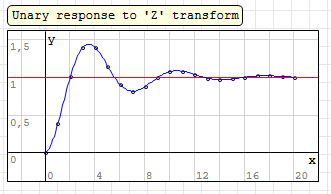

2018-12-11 00_34_33-SMath Studio - [Inst_PID Discrete Schema EXAMPLE_6 - fixed.sm].png


  • removed answer requested for first argument of the last system;
  • used f(number_of_arguments) function of function argument (more elegant, point out that the variable name doesn't matter);



P.S. To obtain similar results, change the integration accuracy to something higher than 100

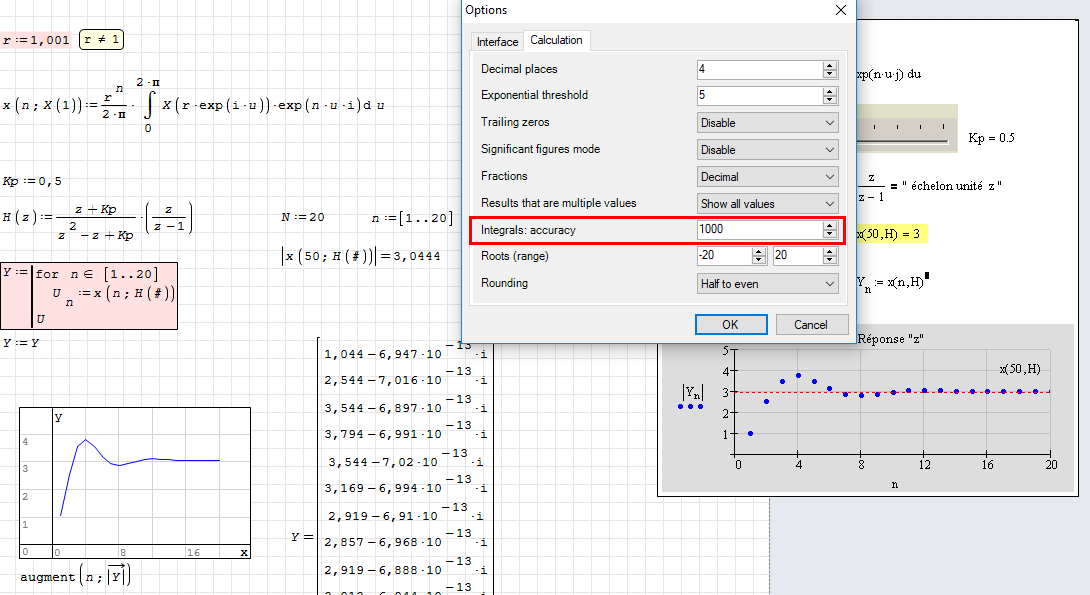

2018-12-11 00_53_52-SMath Studio - [Inst_PID Discrete Schema EXAMPLE_6 - fixed.sm_].png
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
1 пользователям понравился этот пост
Arie 10.12.2018 20:37:00
#5 Опубликовано: 10.12.2018 23:05:36
Arie

Arie

93 сообщений из 285 понравились пользователям.

Группа: User

Wrote

fixed


  • removed answer requested for first argument of the last system;
  • used f(number_of_arguments) function of function argument (more elegant, point out that the variable name doesn't matter);





Dumb question maybe, but how do you get the '#' to show up in the H(#) function call?
Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW
#6 Опубликовано: 11.12.2018 00:50:47
Jean Giraud

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

Wrote

Dumb question maybe, but how do you get the '#' to show up in the H(#) function call?



As simple as that: x(n,X(▄)) ... simply the native dummy argument
big square imitation Alt220 ... try it.

Thanks all you Doctors ! Just refreshing that huge collection
of PID examples, coming soon.

Jean
#7 Опубликовано: 11.12.2018 01:04:47
Jean Giraud

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

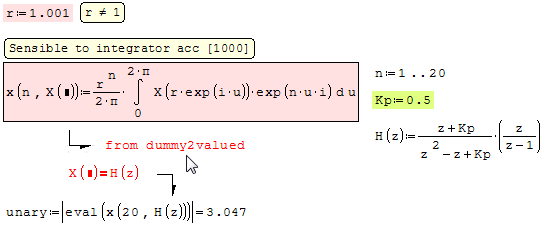

... like this:

#8 Опубликовано: 11.12.2018 04:44:48
Davide Carpi

Davide Carpi

1416 сообщений из 2873 понравились пользователям.

Группа: Moderator

Wrote

Dumb question maybe, but how do you get the '#' to show up in the H(#) function call?



CTRL+K then #

:d

Wrote

big square imitation Alt220



another option, yes
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#9 Опубликовано: 13.12.2018 19:02:18
Alvaro Diaz Falconi

Alvaro Diaz Falconi

992 сообщений из 1674 понравились пользователям.

Группа: User

Hi. This is the setup for use inverse laplace transform for numerically evaluate the response for a system in z domain.
Best regards.
Alvaro.

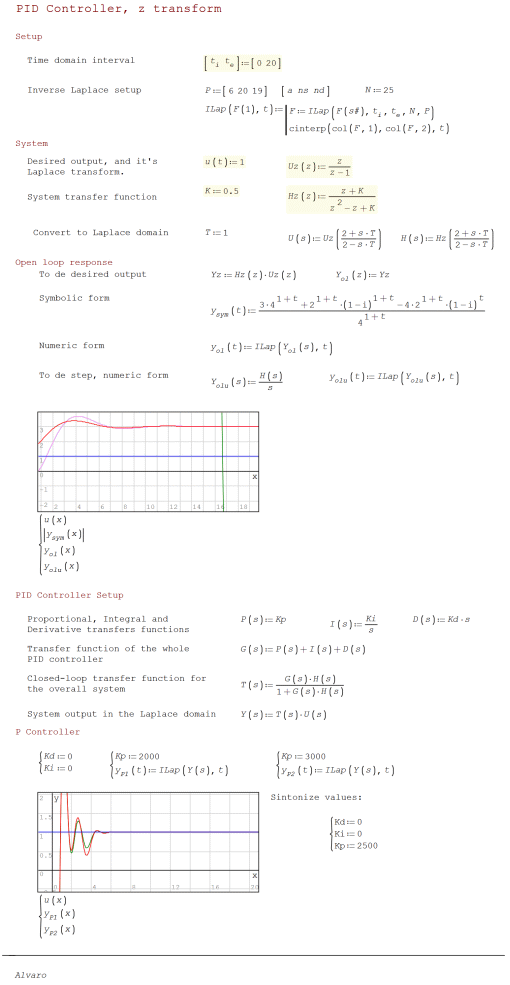

pid_controler z.sm (50 КиБ) скачан 36 раз(а).
1 пользователям понравился этот пост
frapuano 13.12.2018 19:41:00
